Anvil 310517008 2 inches Black Malleable Iron Straight Tee

Product Description

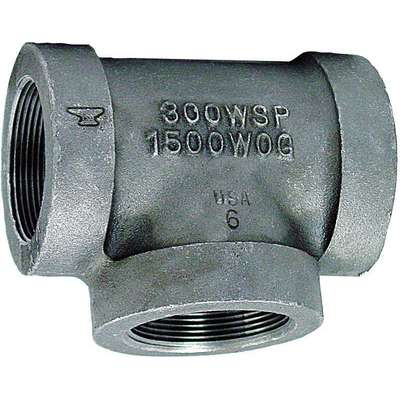

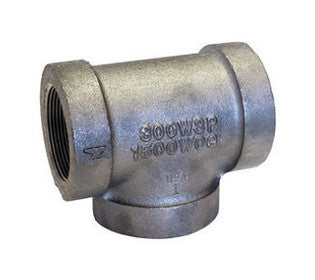

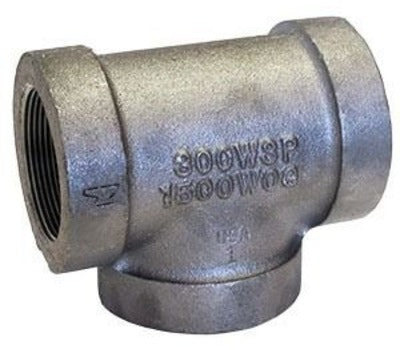

The ANVIL 310517008 is a 2" black malleable iron straight tee fitting. This Class 300 XH fitting is manufactured and tested to meet strict quality standards. It conforms to ASME B16.3 and is suitable for air, water, oil, natural gas, and steam.

• Fitting type: Straight Tee
• Material: Malleable Iron
• Size: 2 inch

Product Highlights

The Anvil 310517008 straight tee fitting features thicker walls that can withstand higher pressures. Elbows and tees 3/8 in. and larger are 100% gas tested at a minimum of 100 PSI.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 310517008

Technical Specifications

• Material: Malleable Iron
• Fitting Class: 300 XH
• Fitting Size: 2"
• Conforms To: ASME B16.3
• Test Pressure: 100 PSI (6.9 bar)
• MPN: 310517008
• Brand: ANVIL
• Connection: FNPT
• Pressure Rating: 300 lb
• Basic Fitting Material: Metal
• Basic Fitting Shape: Tee
• Body Material: Malleable Iron
• Class: Class 300
• Maximum Pressure: 1500 psi@150°F
• Pipe Size: 2 in.
• Temperature Range (Deg. F): -20 to 550 deg. F
• Fitting Side A Gender: Female
• Fitting Side A Nominal Pipe Size: 2 in
• Fitting Side A Type: NPT
• Fitting Side B Gender: Female
• Fitting Side B Nominal Pipe Size: 2 in
• Fitting Side B Type: NPT
• Fitting Side C Gender: Female
• Fitting Side C Nominal Pipe Size: 2 in
• Fitting Side C Type: NPT
• For Pipe Schedule: 80
• Gender: Female
• Saturated Steam Pressure: 300 psi @ 550°F
• Standards: AAR Approved, FM Approved, Meets ASME B16.3
• Threading: NPT
