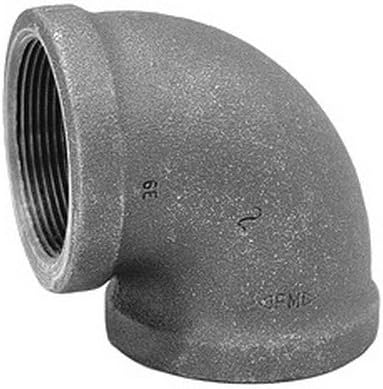

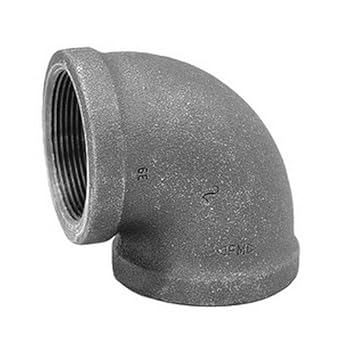

Anvil 310000609 3/8 in. Female Black Malleable Iron 90-Degree Elbow

Product Description

The Anvil 310000609 is a three-eighths inch black malleable iron 90-degree elbow. This fitting is suitable for low-pressure plumbing systems.

• Constructed from durable black malleable iron
• Features female National Pipe Taper (FNPT) connections
• Rated for Class 150 applications

Product Highlights

This elbow fitting is ideal for air, water, natural gas, oil, and steam applications.

Product Information

Standard Information

• Brand: Anvil
• MPN: 310000609

Technical Specifications

• Fitting Shape: 90 Degree Elbow
• Pipe Size: 3/8 inches
• Fitting Connection Type: FNPT x FNPT
• Fitting Schedule/Class: Class 150
• Material: Malleable Iron
• Finish: Black
• Maximum Operating Pressure: 300 psi @ 150 Degrees F
• Saturated Steam Pressure: 150 psi @ 350 Degrees F
• Operating Temperature: -20 Degrees to 350 Degrees F
• Standards: UL Listed, FM Approved, ASME B16.3, NSF 61 Certified
• Application: Air, Natural Gas, Non-Potable Water, Oil, Steam
