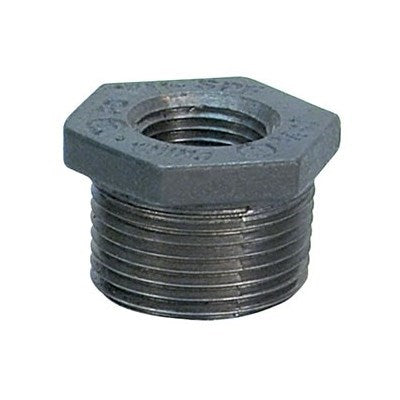

Anvil 0819907007 fig 3383 standard hex head pipe bushing 1-1/4x1 inches

Product Description

The Anvil 0819907007 FIG 3383 is a standard hex head pipe bushing. This fitting conforms to ASME B16.3 dimensions and pressure ratings. It is tested for through wall porosity using an air under water process. Suitable for connecting pipes of different sizes in various plumbing and piping applications.

• Nominal size of 1-1/4x1 inches
• Constructed from malleable iron with a galvanized finish
• Features NPT end style

Product Highlights

This hex head pipe bushing is made from galvanized malleable iron and conforms to ASME standards.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0819907007
• Country of Origin: Import

Technical Specifications

• End Style: NPT
• Finish: Galvanized
• Fitting / Connector Type: Bushing
• Material: Malleable Iron
• Nominal Size: 1-1/4 x 1 in
• Pressure Class: 150 Lb
• Pressure Rating: 175 psi
• Series: FIG 3383
• Temperature Rating: -20 deg F
• Type: Standard Hex Head
• Connection Size 1: 1-1/4 in
• Connection Size 2: 1 in
• Connection Type 1: MNPT
• Connection Type 2: FNPT
• Dimension Standards: ASME B16.3/B16.14/B.1.20.1
• Material Construction: Malleable Iron
• Manufacturer: Anvil
