Anvil 0811088418 FIG 3121R Pipe Reducing Coupling 1-1/2x1 in

Product Description

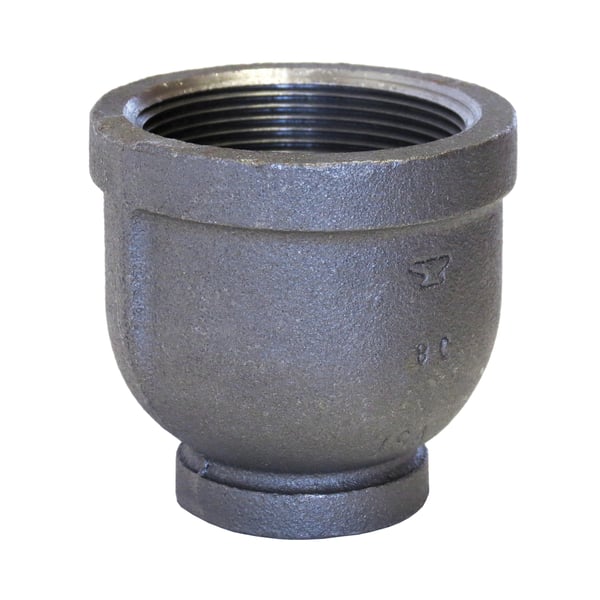

The ANVIL 0811088418 FIG 3121R pipe reducing coupling conforms to ASME B16.3 dimensions and pressure ratings. This reducing coupling has a 1-1/2x1 in nominal size and FNPT end style. It is constructed from galvanized malleable iron and is suitable for SCH 40/STD schedule pipes.

• Conforms to ASME B16.3 dimensions and pressure ratings
• Constructed from galvanized malleable iron
• Suitable for SCH 40/STD schedule pipes

Product Highlights

The Anvil reducing coupling is made of galvanized malleable iron and conforms to ASME standards. It is suitable for connecting different sized pipes.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0811088418
• Country of Origin: Import

Technical Specifications

• End Style: FNPT
• Finish: Galvanized
• Fitting / Connector Type: Reducing Coupling
• Material: Malleable Iron
• Nominal Size: 1-1/2 x 1 in
• Pressure Class: 150 Lb
• Length: 2.31 in
• Manufacturer: Anvil International
• Manufacturer #: 0811088418
• Schedule Rating: SCH 40/STD
• Series: FIG 3121R
• Supplier Name: ANVIL INTERNATIONAL/SMITH-COOPER/ASC
• Supplier Part #: 0811088418
• Item: Reducer
• Connection Size(a): 1 1/2"
• Connection Size(b): 1"
• Connection Type(a): FNPT
• Connection Type(b): FNPT
• Pipe Size: 1 1/2" x 1"
• MPN: 0811088418
• Catalog Number: 0811088418
• Connection Type: FPT x FPT
• Maximum Pressure Rating: 150 lb
• Selling Size: 1-1/2 x 1 in
• Specifications Met: ASME B1.20.1, ASME B16.3, ASTM A153 Class A, ASTM A197, C/US UL Listed, FM Approved
