Anvil 0560500209 3/4 Pipe Clamp Galvanized

Product Description

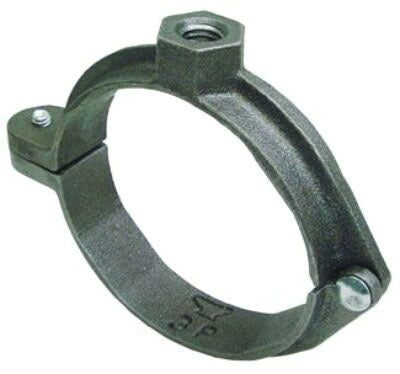

Anvil 0560500209 is a galvanized pipe clamp designed for secure fastening of pipes sized three-quarters of an inch. This clamp features a hinged design, allowing for rapid installation with a single closure screw. It is made from malleable iron, ensuring robustness and durability for various applications.

• Hinged design allows for quick installation.
• Compatible with three-quarter inch pipes.
• Rated for loads up to one hundred eighty pounds.

Product Highlights

This pipe clamp is ideal for non-insulated stationary pipe lines and can be used in refrigeration or compressor piping systems that experience vibration.

Product Information

Standard Information

• Manufacturer: Anvil
• UPC: 69029160839

Technical Specifications

• MPN: 0560500209
• Pipe Size: 3/4 inch
• Rod Size: 3/8 inch
• Load Rating: 180 pounds
• Temperature Rating: 450 degrees F
• Number of Screws/Bolts: 1
• Applicable Standards: A-A-1192A, WW-H-171-E, ANSI/MSS-SP-69, MSS-SP-58
