Anvil 0560299836 Clevis Hanger 1 in

Product Description

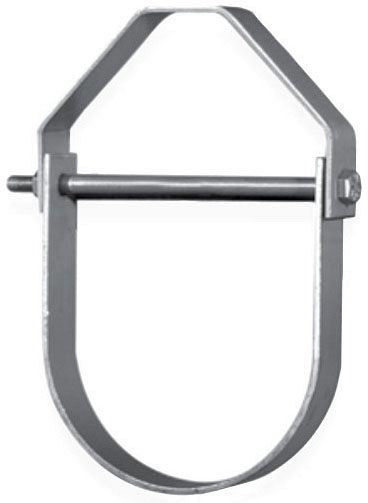

The ANVIL 0560299836 is a galvanized steel light duty adjustable clevis hanger designed for supporting stationary pipes or conduits. It is suitable for pipe sizes of 1 inch and accommodates a 3/8 inch threaded rod. The clevis hanger provides an attachment for light duty service.

• Designed for suspension of stationary pipe or conduit
• Adjustable for versatile installation
• Maximum load capacity of 250 lb

Product Highlights

This Anvil clevis hanger is a light duty adjustable solution for suspending stationary pipes or conduits, featuring a galvanized steel finish and a 250 lb load capacity.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0560299836
• Country of Origin: China

Technical Specifications

• Vendor: Anvil Int'l
• Model Number: 0560299836
• Product Type: Clevis Hanger
• Manufacturer Name: ANVIL
• Type: Light Duty, Adjustable
• Finish: zinc plated
• Series: Figure 65
• Features: An Attachment for Light Duty Service
• Material: Zinc-Plated Steel
• Rod Size: 3/8 in
• Cushioned: No
• Standards: WW-H-171-E, Type 12
• For Use On: Pipe
• Hanger Type: Clevis
• For Pipe Size: 1 in
• Load Capacity: 250 lb
• Overall Height: 2.813 in
• Hanger Material: Steel
• Max. Load (Lb.): 250 lb
• Pipe Size (In.): 1 in
• Metal Detectable: Yes
• For Insulated Pipe: No
• For Threaded Rod Size: 3/8 in
• Hanger Material Finish: Zinc-Plated
• Pipe Center to Hanger Top: 2 5/32 in
• Description/Special Features: For Suspension Of Stationary Pipe Or Conduit
• Maximum Operating Temperature: 450 Degrees F
• Required Number of Threaded Rods: 1
• Applicable Standard: WW-H-171-E Type 12
• Hanger Mounting Size: 3/8 Inch
• Load Rating: 250 Lb
• Temperature Rating: 450 Deg F
• Minimum Pipe Size: 1 Inch
• Maximum Pipe Size: 1 Inch
