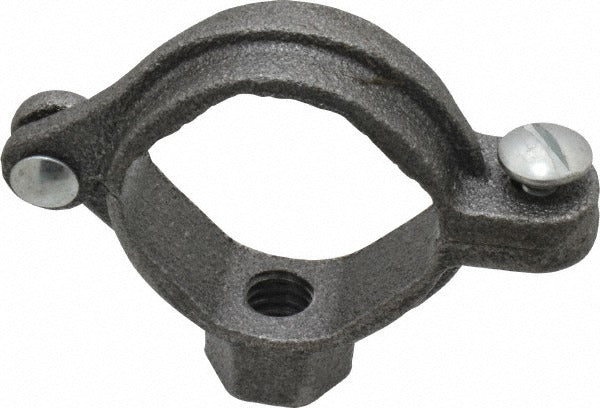

Anvil 0560018830 Extension Split Pipe Clamp 1 Inch

Product Description

The ANVIL 0560018830 is an extension split pipe clamp designed to support 1-inch nominal pipe runs in mechanical, plumbing, and HVAC piping systems. Constructed from malleable iron, this clamp delivers a rated load capacity of 180 pounds, making it suitable for sustained vertical and lateral pipe support in both new construction and retrofit applications. The split design allows installation around existing pipe without disconnecting the run, and the extension style accommodates rod-hung configurations where additional clearance from the structure is needed. Licensed plumbers, pipefitters, and mechanical contractors use this type of clamp as a standard component in pipe support assemblies.

This clamp is used in commercial and residential mechanical systems where 1-inch pipe must be suspended from threaded rod. Typical applications include hydronic heating and cooling piping, domestic water supply lines, compressed air distribution, and light industrial process piping. The 3/8-inch rod diameter compatibility makes it a common fit for standard strut and rod hanger assemblies found in ceiling and overhead pipe support layouts. It is well suited for interior mechanical rooms, utility spaces, and above-ceiling installations.

Key Features

• Malleable iron construction provides strength and resistance to mechanical stress in pipe support applications
• 180-pound load capacity supports sustained pipe loads including insulated and fluid-filled lines
• Split design allows installation on existing pipe without breaking the line
• Extension style provides clearance offset for rod-hung pipe support configurations
• Compatible with 3/8-inch diameter threaded rod for standard hanger assemblies
• Fits 1-inch nominal pipe size per standard pipe support sizing conventions

Compatibility

Designed as an OEM-style pipe support component for use with 1-inch nominal pipe in rod-hung mechanical piping assemblies using 3/8-inch threaded rod.

Installation Notes

Installation should be performed by a licensed plumber, pipefitter, or mechanical contractor in accordance with applicable codes including the International Plumbing Code and International Mechanical Code. De-pressurize and isolate the pipe section before installing or adjusting any pipe support hardware. Ensure threaded rod and structural attachment points are rated to handle the combined load of the pipe, fluid, and insulation. Do not exceed the rated 180-pound load capacity of the clamp.
