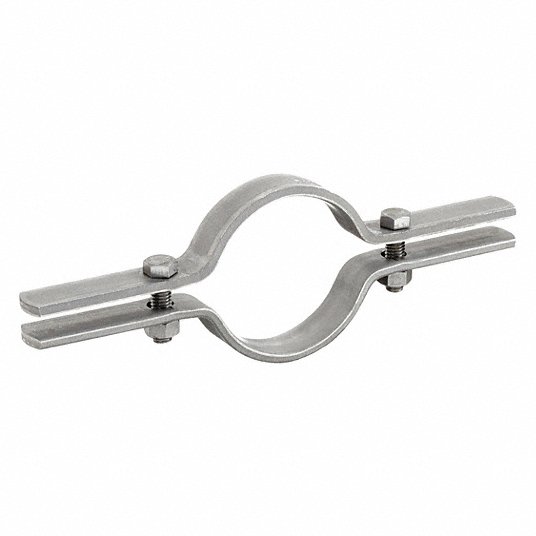

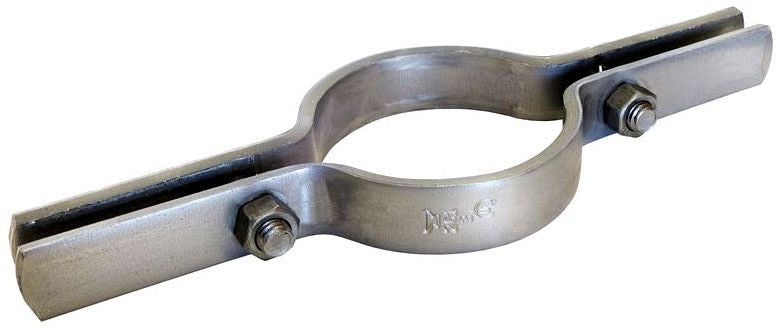

Anvil 0500173620 6 #261 Riser Clamp

Product Description

The ANVIL 0500173620 is a 6 #261 riser clamp designed for supporting stationary steel pipe risers, cast iron pipe, or conduit. It features a steel clamp material and is suitable for use on 6-inch pipes. The clamp has a load capacity of 1,600 lb and can withstand a maximum operating temperature of 450 Degrees F.

• Supports stationary steel pipe risers
• Suitable for cast iron pipe or conduit
• Secures onto tube or pipe with attached fasteners

Product Highlights

The ANVIL riser clamp provides extra support and distributes the load of the pipe.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0500173620
• Country of Origin: United States

Technical Specifications

• Item [Specifications]: Riser Clamp
• Finish [Specifications]: Plain
• Series: Figure 261
• Material [Specifications]: Steel
• Standards: and MSS SP-58 (Type 8). UL, ANSI/MSS SP-69, Federal Specification A-A-1192A (Type 8), ULC Listed (Sizes 1-1/2 in -8 in)., WW-H-171-E (Type 8)
• For Use On: Conduit, Pipe
• Bolt Length: 1/2 in
• Length (In.) [Specifications]: 14 3/4 in
• Product Type [Specifications]: Riser Clamp
• Bolt Diameter: 1/2 in
• For Pipe Size: 6 in
• Load Capacity: 1,600 lb
• Overall Width: 1 1/2 in
• Clamp Material: Steel
• Overall Length: 14.75 in
• Bolt Size (In.) [Specifications]: 1/2
• Max. Load (Lb.) [Specifications]: 1,600
• Pipe Size (In.) [Specifications]: 6 in
• Metal Detectable [Specifications]: Yes
• Clamp Material Finish [Specifications]: Not Applicable
• Mounting Hole Diameter: 0.5 in
• Bolt Center-to-Center Length: 9 in
• Description/Special Features [Specifications]: For support of stationary steel pipe risers, cast iron pipe or conduit. This product is not intended for use with hanger rods.
• Maximum Operating Temperature: 450 Degrees F
• Country of Origin: United States
• Description: 261 6 Blk Stl Pipe Riser Clamp
• Manufacturer: Anvil
• Model #: 261
• PDW MFR CAT: 0500173620
• Pittman #: 139932
• Size: 6"
• UNSPSC: 31162906
• Brand: ANVIL
• Dimensions: 14-3/4 in x 1-1/2 in W
• Domestic/Import: Domestic
• Finish: Black Oxide
