Anvil 0500173109 fig 260 Adjustable Clevis Hanger 4 in

Brand: ANVIL
SKU: 0500173109
Availability: In Stock

Ships same day if ordered by 12 pm
$24.64
$24.64
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

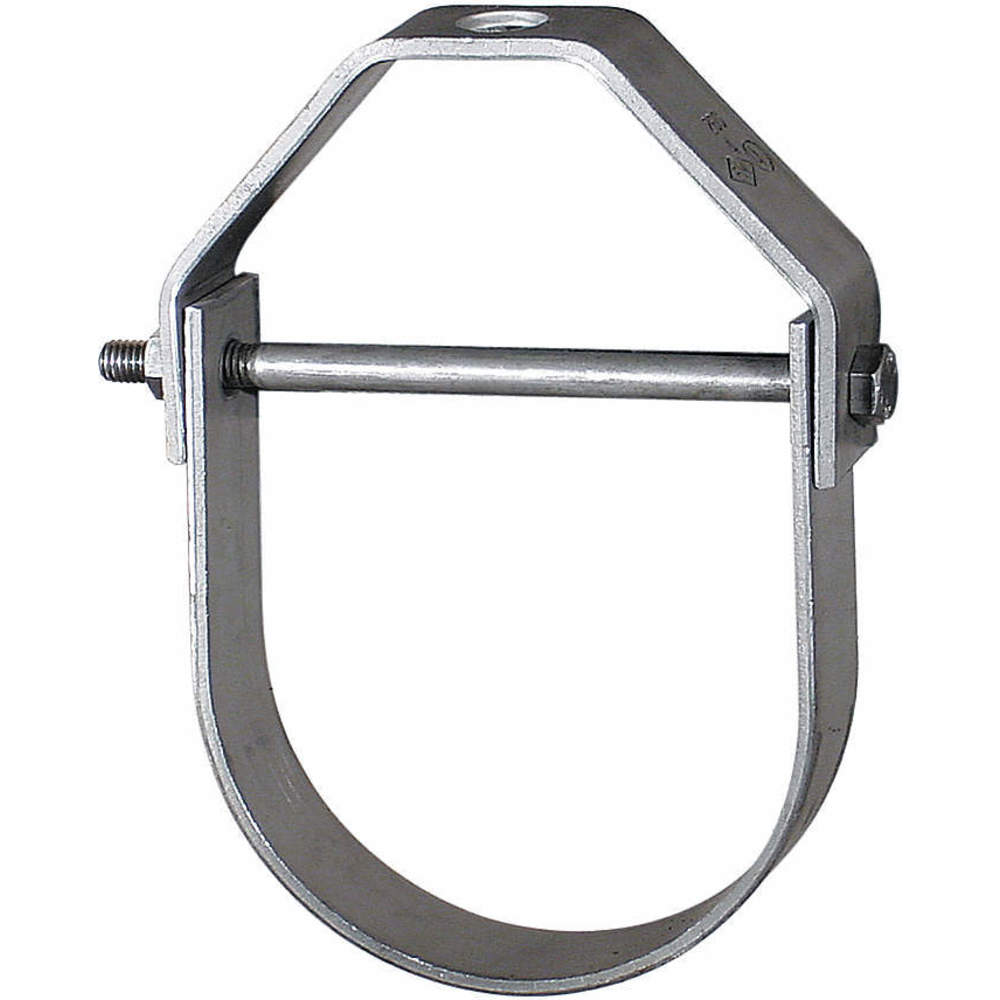

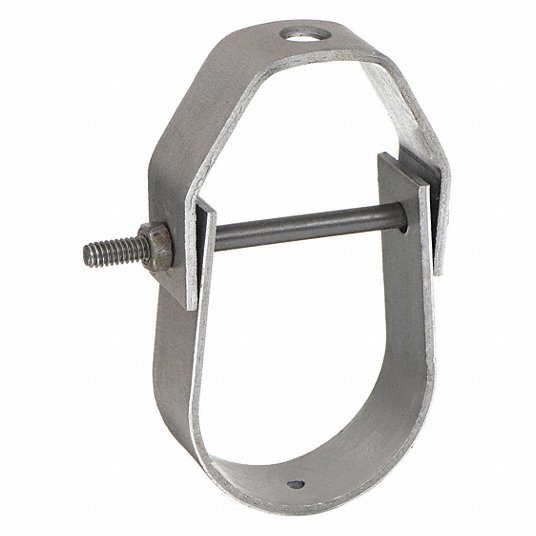

The ANVIL 0500173109 Fig 260 adjustable clevis hanger is designed for the suspension of stationary pipe lines. It is suitable for use with 4 inch pipes and 5/8 inch threaded rods, with a load capacity of 1430 lb. The clevis rod thread locks the nuts in place.

  • Adjustable
  • Clevis Rod Thread Locks the Nuts in Place
  • For Suspension Of Stationary Pipe Lines

Product Highlights

The ANVIL Fig 260 clevis hanger provides reliable support for stationary pipe lines, with easy vertical adjustment.

Product Information

Standard Information

  • Brand: ANVIL
  • Manufacturer Part Number: 0500173109
  • Country of Origin: US
Technical Specifications
Item
Clevis Hanger
Type
Adjustable
Finish
Plain
Series
Figure 260
Features
Clevis Rod Thread Locks the Nuts in Place
Material
Steel
Rod Size
5/8 in
Cushioned
No
Standards
A-A-1192A, cUL Listed, ANSI/MSS SP-69, FM Approved, MSS SP-58, UL Listed, WW-H-171-E
For Use On
Pipe
Hanger Type
Clevis
Length (In.)
7 13/16 in
Product Type
Clevis Hanger
For Pipe Size
4 in
Load Capacity
1430 lb
Overall Height
7.813 in
Hanger Material
Steel
Max. Load (Lb.)
1,430 lb
Pipe Size (In.)
4 in
Metal Detectable
Yes
For Insulated Pipe
No
For Threaded Rod Size
5/8 in
Hanger Material Finish
Not Applicable
Pipe Center to Hanger Top
6 1/2 in
Description/Special Features
For Suspension Of Stationary Pipe Lines
Maximum Operating Temperature
650 Degrees F
Required Number of Threaded Rods
1
Application
For suspension of stationary pipe lines
Standards and Approvals
A-A-1192A (Type 1) | ANSI/MSS SP-69 and MSS SP-58 (Type 1) | cULus Listed | FM Approved | WW-H-171-E (Type 1) | UL/ULC Listed
Nominal Size
4 Inch
Maximum Load Capacity
1430 lb
Maximum Temperature
650 deg F
