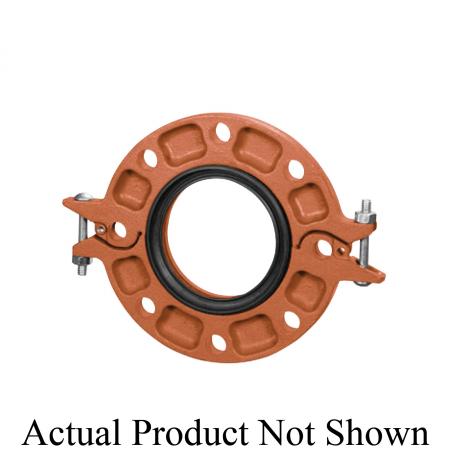

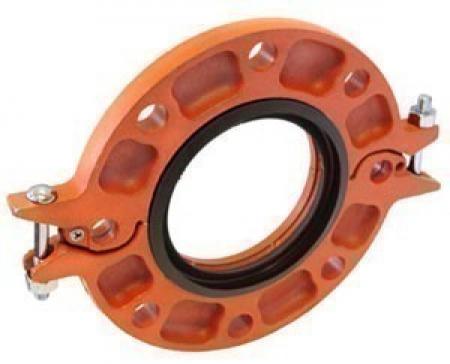

Anvil 0390210185 FIG 7012 Pipe Flange With Grade E Gasket 6 in

Product Description

The Anvil 0390210185 FIG 7012 pipe flange is designed for use with grooved connections in plumbing systems. This six inch flange is made from ductile iron for strength and durability. It includes a Grade E gasket for secure sealing. This product is suitable for various applications where reliable connections are needed.

• Compatible with grooved piping systems
• Constructed from ductile iron
• Includes Grade E gasket for effective sealing

Product Highlights

This pipe flange offers lasting strength and reliability for plumbing installations. It is ideal for both domestic use and construction sites.

Product Information

Standard Information

• Brand: Anvil
• Part Number: 0390210185

Technical Specifications

• Material: Ductile Iron
• Finish: Galvanized
• Nominal Size: 6 inches
• Bolt Circle Diameter: 9-1/2 inches
• Bolt Hole Size: 7/8 inches
• Number of Bolt Holes: 8
• Outside Diameter: 6-5/8 inches
• Pressure Rating: 300 psi
• Temperature Rating: -40 to 230 degrees F
• Series: FIG 7012
• Domestic/Import: Domestic
