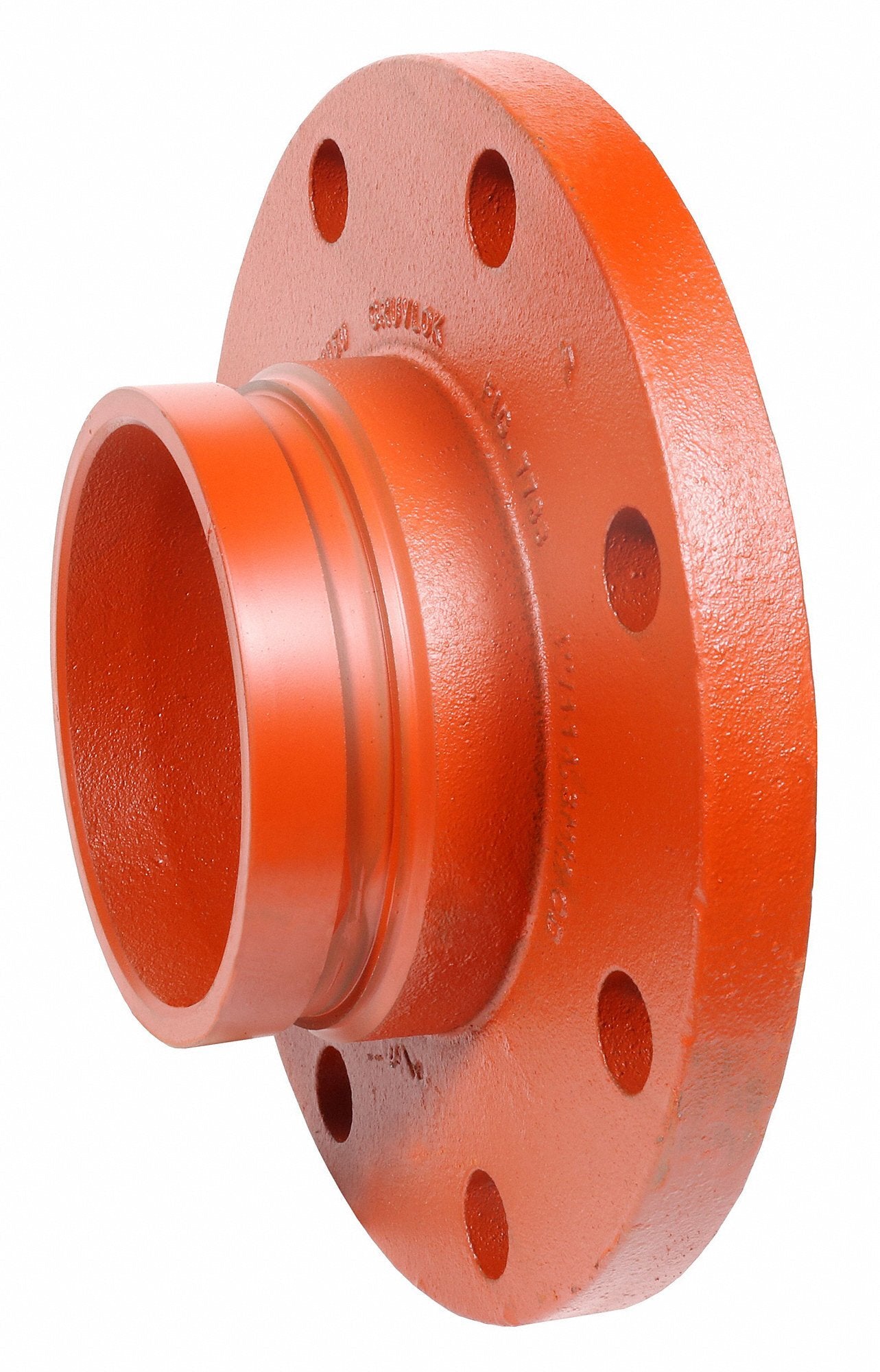

Anvil 0390202125 Fig 7788 Flange Adapter 8 in

Product Description

The ANVIL 0390202125 Fig. 7788 Flange Adapter allows for direct connection of Class 125 or Class 150 flanged components to a grooved piping system. It provides a raised serrated face flange connection with a shorter overall length. Grooved pipe fittings combine roll-grooving and two-bolt coupling designs for a reliable joint.

• Grooved pipe couplings and fittings are used to join pipes in both wet and dry systems.
• Grooved ends help maintain secure seals under both positive pressure and vacuum conditions.
• Alternative method of connecting to flanged components

Product Highlights

The Gruvlok Fig. 7788 flange adapter allows for direct connection of flanged components to a grooved piping system.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0390202125
• Country of Origin: US

Technical Specifications

• Brand: GRUVLOK
• Fitting/Connector Type: Flange Adapter
• Nominal Size: 8 in
• End Style: Grooved x Flanged
• Finish: Painted
• Material: Ductile Iron
• Pressure Class: 125/150 lb
• Color: Orange
• Manufacturer Name: ASC Engineered Solutions
• Pressure Rating: 300 psi
• Series: FIG 7788
• Application: Potable Water
• Domestic/Import: Domestic
• Standards and Approvals: ASTM A 536 Grade 65-45-12
• Bolt Circle Diameter: 11-3/4 in
• Bolt Hole Diameter: 7/8 in
• Fitting Connection Type: Grooved
• Flange Outside Diameter: 8-5/8 in
• Flange Thickness: 15/16 in
• Item: Adapter
• Number of Bolt Holes: 8
• Manufacturer Part Number: 0390202125
• Maximum Operating Pressure: 300 psi
• Country of Origin: USA (subject to change)
