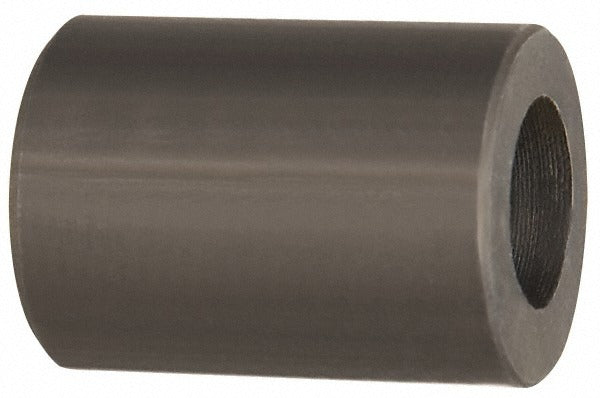

Anvil 0362060006 Socket Weld Coupling 1/8 in Class 3000

Product Description

The ANVIL 0362060006 is a forged carbon steel socket weld coupling designed for high-pressure piping systems in industrial, commercial, and mechanical applications. Rated at Class 3000 with a 3000 psi pressure rating, this coupling provides a strong, permanent connection between pipe segments using a socket weld end connection on both ends. The black finish is standard for this fitting class. At 0.08 pounds, it is a compact 1/8 inch fitting suited for small-bore piping runs carrying liquid or gas service. Licensed pipefitters, plumbers, and mechanical contractors are the typical installers for this type of forged fitting.

This coupling is used in high-pressure small-bore piping systems where socket weld connections are specified. Common applications include steam, hydraulic, gas, and liquid process lines in industrial plants, mechanical rooms, and commercial construction. The 1/8 inch size makes it appropriate for instrument lines, pilot lines, and similar small-diameter branch connections. Its Class 3000 rating makes it compatible with Schedule 80 pipe in standard socket weld piping configurations.

Key Features

• Forged carbon steel construction for high-pressure service integrity
• Class 3000 rating with 3000 psi liquid and gas pressure rating
• Socket weld end connections on both ends for permanent, leak-resistant joints
• 1/8 inch fitting size for small-bore piping applications
• Black finish as standard for this fitting classification
• Lightweight at 0.08 pounds for easy handling in tight spaces

Compatibility

Designed as an OEM-style socket weld fitting for Class 3000 high-pressure piping systems using 1/8 inch schedule pipe in liquid and gas service applications.

Installation Notes

Socket weld fittings are installed by licensed pipefitters or plumbers in accordance with applicable mechanical and piping codes such as ASME B31.1 or B31.3. Depressurize and isolate the piping system completely before cutting into any existing line. The pipe end must be clean, deburred, and inserted to the proper depth before welding. Do not attempt to disassemble or reuse a socket weld fitting after it has been welded.
