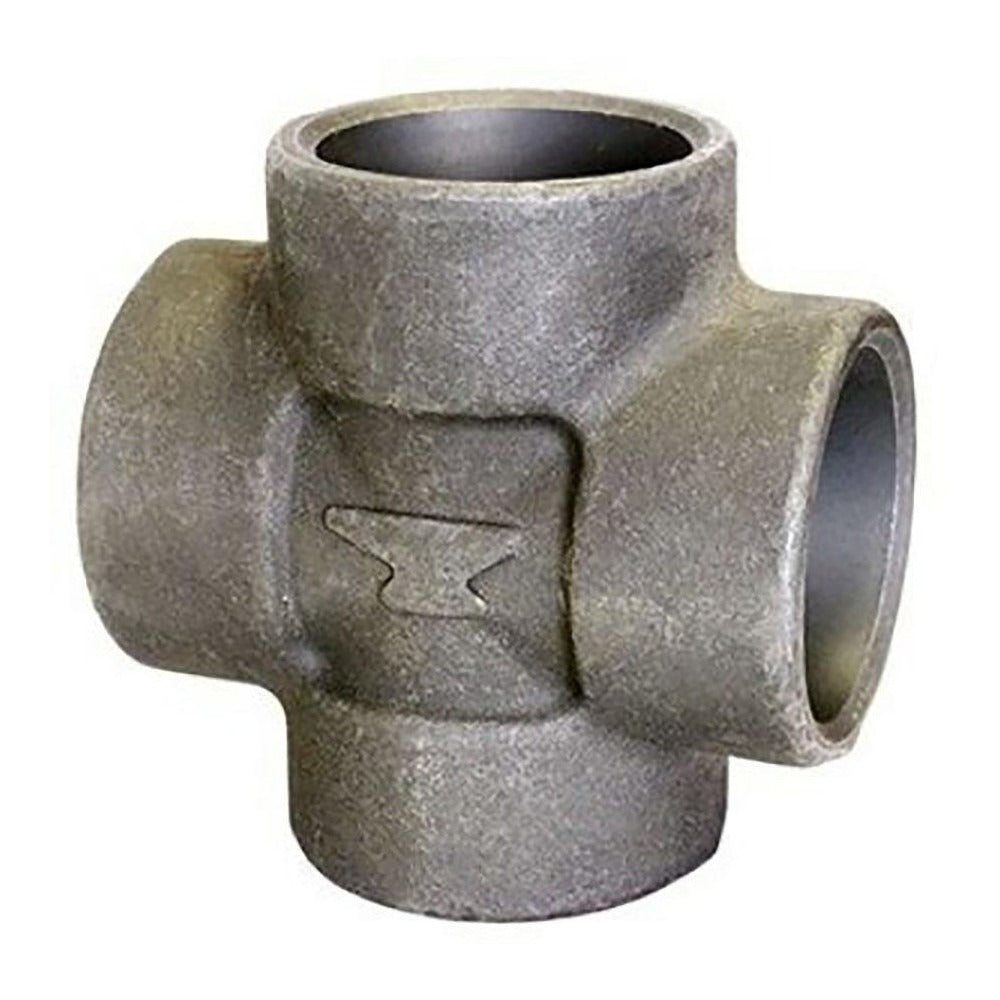

Anvil 0362037806 1 Inch Socket Weld Cross Fitting Class 3000

Product Description

The ANVIL 0362037806 is a forged carbon steel cross fitting designed for socket weld connections in high-pressure piping systems. Rated at Class 3000 and 3000 psi, this four-way cross fitting meets ASME B16.11 dimensional standards and ASTM A105 and ASTM A182 material requirements. The black finish provides basic corrosion resistance during storage and installation. At 1.56 pounds, the fitting is sized for 1-inch pipe and is intended for permanent, welded piping assemblies in industrial, commercial, and mechanical contracting applications where pressure integrity is critical.

This fitting is used in high-pressure steam, gas, and liquid piping systems where a four-way branch connection is required. Socket weld construction makes it appropriate for smaller-diameter, high-pressure lines where threaded connections are not acceptable. Typical installation environments include mechanical rooms, process piping, and industrial plant piping. Licensed pipefitters and plumbers install this type of fitting in compliance with applicable ASME and ASTM standards.

Key Features

• Forged carbon steel construction meets ASTM A105 and ASTM A182 material specifications
• Class 3000 pressure rating at 3000 psi for high-pressure service
• Socket weld end connections for permanent, full-penetration weld joints
• Complies with ASME B16.11 and ASME B1.20.1 dimensional and thread standards
• Black finish for standard piping identification and storage protection
• 1-inch fitting size for standard nominal pipe sizing

Compatibility

Designed as an OEM-style forged steel socket weld cross fitting for 1-inch Class 3000 piping systems conforming to ASME B16.11 requirements.

Installation Notes

Installation must be performed by a licensed pipefitter or plumber in accordance with applicable mechanical codes including ASME B31.1 or B31.3 as required by the system classification. Depressurize and isolate the piping system completely before cutting into any existing line. Socket weld fittings require full-penetration fillet welds performed by a qualified welder to the applicable weld procedure specification. Do not use this fitting as a threaded connection — the socket weld design requires welding for a code-compliant, pressure-rated joint.
