Anvil 0362025009 Black Tee 3/8 Inches Socket Weld Class 3000

Product Description

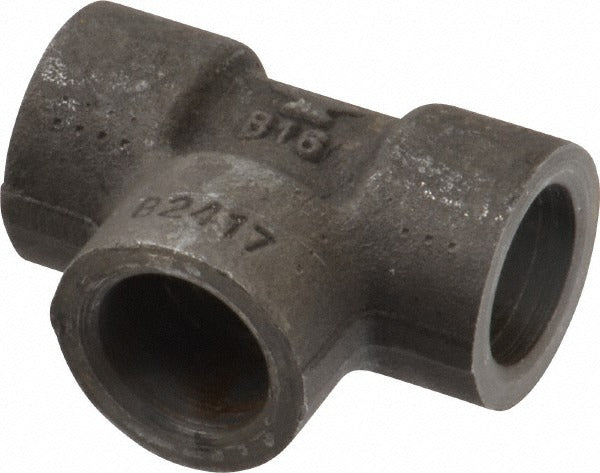

The ANVIL 0362025009 is a forged carbon steel tee fitting with a black finish, rated for Class 3000 service. It features a 3/8-inch socket weld end connection and is manufactured to meet multiple ASME and ASTM standards. This fitting is used to create a branch connection in piping systems carrying liquids or gases at high pressures up to 3000 psi. It is installed by licensed pipefitters and plumbers in industrial, commercial, and mechanical piping applications where a durable, high-strength forged fitting is required.

This tee fitting is suited for use in high-pressure piping systems handling steam, gas, oil, water, and other compatible media. The socket weld configuration makes it appropriate for smaller-diameter piping runs in process piping, plant utilities, and mechanical rooms. Its forged carbon steel construction and black finish are standard for industrial service environments. The Class 3000 pressure rating aligns with schedule 80 and schedule 160 pipe applications in demanding service conditions.

Key Features

• Forged carbon steel construction for high-strength, high-pressure service
• Class 3000 pressure rating up to 3000 psi
• 3/8-inch socket weld end connections for clean, full-penetration joints
• Black finish standard for industrial piping environments
• Compliant with ASME B16.11, ASME B1.20.1, ASTM A105, ASTM A182, and ASTM A350
• Tee shape allows inline branch connections in a single fitting

Compatibility

Designed as an OEM-style socket weld tee for use in Class 3000 forged carbon steel piping systems with 3/8-inch pipe.

Installation Notes

Socket weld fittings are installed by qualified pipefitters in accordance with ASME B31.3 or the applicable piping code for the system. Depressurize and isolate the piping system completely before cutting into any line. Socket weld joints require a fillet weld performed by a certified welder and must be inspected per the governing code before returning the system to service. Do not use thread sealant or mechanical joining methods on socket weld ends.
