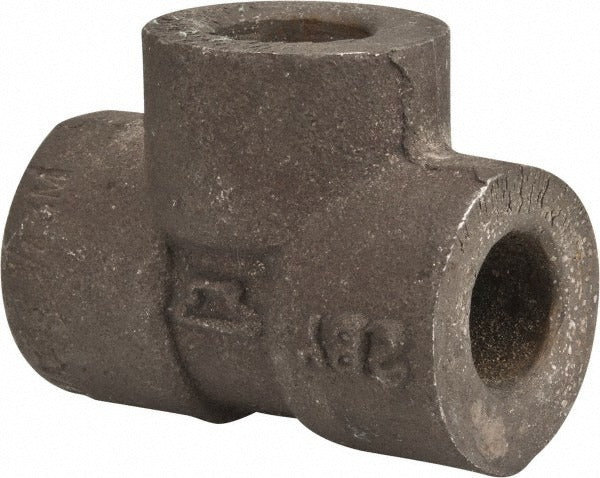

Anvil 0362024804 Black Tee 1/4 in Socket Weld Class 3000

Product Description

The ANVIL 0362024804 is a forged carbon steel socket weld tee designed for high-pressure piping systems in industrial, commercial, and mechanical applications. Rated at Class 3000 with a 3000 psi pressure rating, this tee is built to handle demanding service conditions where a reliable, leak-free branch connection is required. The black finish is standard for this fitting class. It conforms to ASME B16.11 for socket weld and threaded fittings and meets ASTM A105, ASTM A182, and ASTM A350 material standards. The NPT thread standard is referenced per ASME B1.20.1. Sized at 1/4 inch, this fitting is suited for tight-space branch connections in process piping, steam, gas, and hydraulic lines.

This fitting is used in industrial process piping, mechanical rooms, and utility systems where socket weld construction is specified. The Class 3000 rating makes it appropriate for high-pressure steam, compressed gas, hydraulic fluid, and similar services. It is typically installed by licensed pipefitters, plumbers, and mechanical contractors working to ASME or facility piping specifications. The compact 1/4 inch size suits instrumentation lines, small-bore branch connections, and secondary process runs.

Key Features

• Class 3000 pressure rating at 3000 psi for high-pressure service
• Socket weld end connections for full-penetration weld joints
• Forged carbon steel construction for strength and durability
• Black finish standard for this fitting class
• Meets ASME B16.11, ASTM A105, ASTM A182, and ASTM A350 standards
• ASME B1.20.1 thread standard compliance

Compatibility

Designed as an OEM-style socket weld tee fitting for 1/4 inch Class 3000 forged carbon steel piping systems conforming to ASME B16.11 requirements.

Installation Notes

Installation should be performed by a qualified pipefitter or licensed plumber in accordance with applicable ASME piping codes and facility specifications. Depressurize and isolate the piping system completely before cutting in or welding any fitting. Socket weld fittings require a certified welder following applicable welding procedures — do not substitute socket weld fittings in systems requiring butt weld joints without engineering approval. Verify fitting pressure and temperature ratings against system design conditions before installation.
