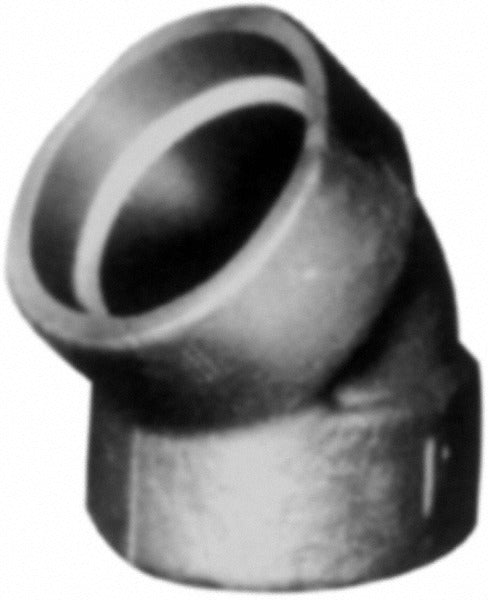

Anvil 0362014409 45 Degree Elbow 3 in Socket Weld Class 3000

Product Description

The ANVIL 0362014409 is a 3-inch, 45-degree socket weld elbow manufactured from forged carbon steel with a black finish. It is rated Class 3000 and Schedule 80, making it suitable for high-pressure liquid and gas piping systems with a pressure rating of 3000 psi. This fitting is used to redirect pipe runs at a 45-degree angle in industrial and commercial piping installations. Licensed pipefitters and plumbers install this type of fitting in demanding service environments where strength and pressure integrity are critical.

This elbow is appropriate for use in high-pressure steam, liquid, and gas piping systems where socket weld connections are specified. The forged carbon steel construction and Class 3000 rating suit commercial and industrial applications such as process piping, mechanical rooms, and utility distribution systems. It is sold individually and is a standard catalog fitting for Schedule 80 socket weld configurations.

Key Features

• 45-degree elbow geometry for moderate direction changes in piping runs
• Socket weld end connections for secure, high-integrity joints
• Forged carbon steel construction for strength under high-pressure service
• Class 3000 rating with 3000 psi liquid and gas pressure rating
• Schedule 80 wall thickness compatibility
• Black finish for corrosion resistance in typical indoor piping environments

Compatibility

Designed as an OEM-style replacement or new-installation fitting for Schedule 80 socket weld piping systems requiring a 3-inch, 45-degree elbow in high-pressure liquid or gas service.

Installation Notes

Installation should be performed by a licensed pipefitter or plumber in accordance with applicable mechanical and plumbing codes. Shut off and depressurize the piping system completely before cutting in or replacing any fitting. Socket weld fittings require proper gap clearance and qualified weld procedures per applicable standards. Do not exceed the rated pressure for the fitting class in service.
