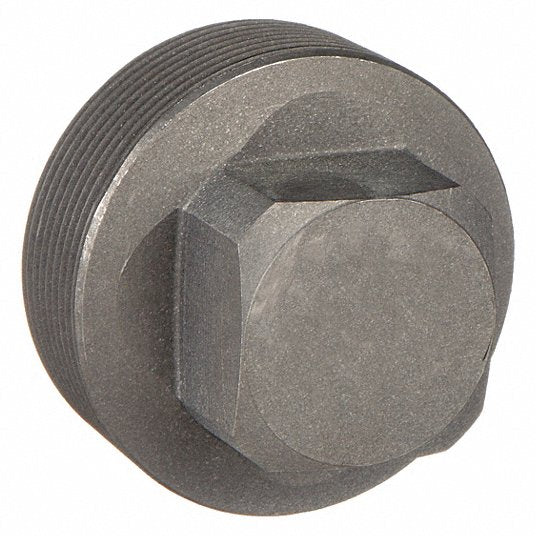

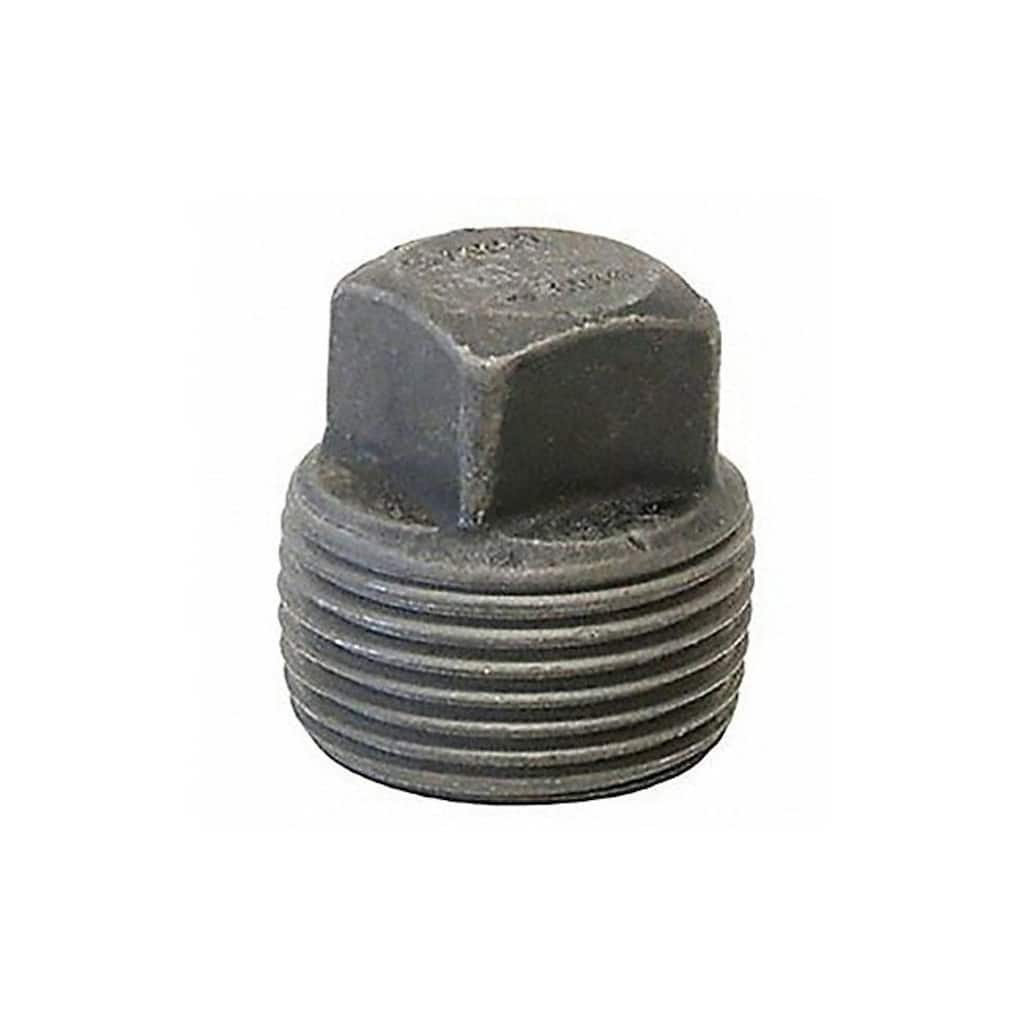

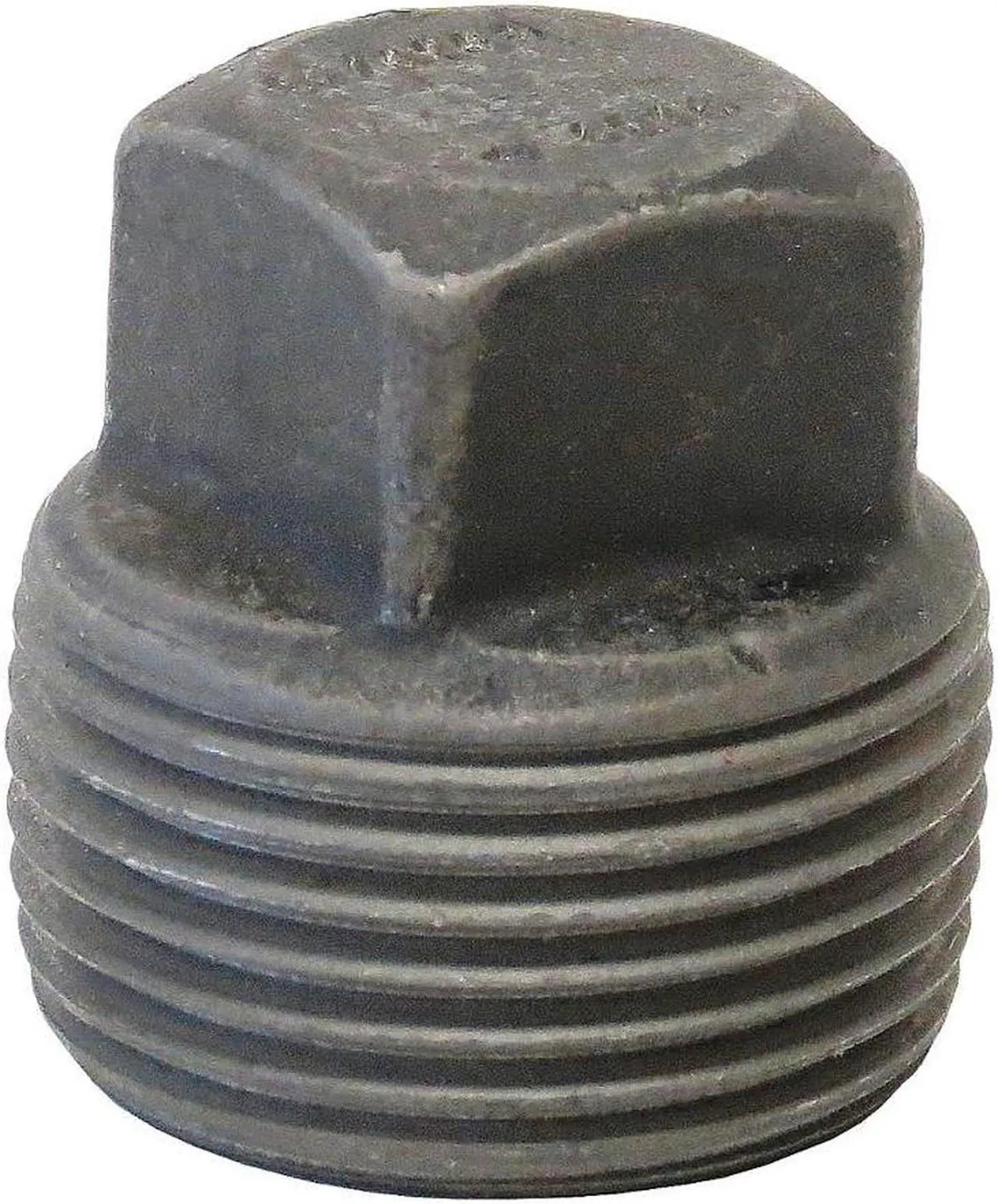

Anvil 0361302409 Square Head Plug 4 in Pipe Size

Product Description

The ANVIL 0361302409 square head plug is made of forged steel with a 4 in pipe size and male NPT connection. These Class 6000 threaded fittings connect with high-pressure pipe. Threaded fittings twist onto pipe using various male and female thread connections including NPT or BSPT.

• Constructed from forged steel
• Features a 4 in fitting pipe size
• Male NPT connection type

Product Highlights

This square head plug is suitable for high-pressure applications, withstanding up to 300 psi at 150° F. It conforms to ASME B16.14, ASTM A105, and ASTM A197 standards.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0361302409
• Country of Origin: USA

Technical Specifications

• Category: Forged Steel
• Material: Forged Steel
• Brand: ANVIL
• Specific Fitting Shape: Square Head
• Pipe Fitting Material: Forged Steel
• Nominal Pipe Size: 4 in
• Temp. Range: -20° to 350° F
• Standards: ASME B16.14, ASTM A105, ASTM A197
• Basic Fitting Shape: Plug
• Finish/Coating: Black
• Fitting Connection Type: Male NPT
• Includes Pre-Applied Thread Sealant: No
• Includes Seal: No
• Plug Construction: Solid
• Manufacturer Part Number: 0361302409
• Maximum Operating Pressure: 300 psi @ 150° F
• UNSPSC: 40142313
• Figure Number: 2122
• Source: Domestic
• Product Type: Plug
• Size: 4
