Anvil 0361130602 Black Cross 2 in Threaded Class 3000

Product Description

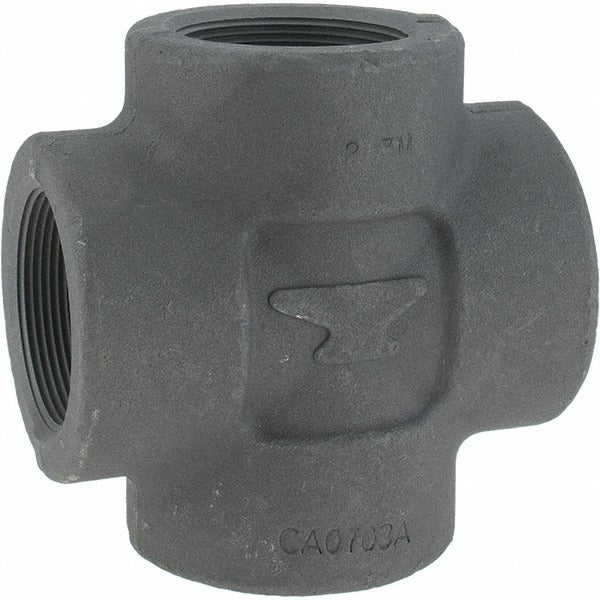

The ANVIL 0361130602 is a forged carbon steel pipe cross fitting with a black finish, designed for high-pressure threaded piping systems. Rated at Class 3000 and 3000 psi, it meets ASME B16.11 standards for socket-weld and threaded fittings. The 2-inch NPT threaded connections conform to ASME B1.20.1 thread specifications. Material certifications include ASTM A105, ASTM A182, and ASTM A350, confirming the forged carbon steel construction meets mechanical and chemical requirements for pressure piping service. Licensed plumbers, pipefitters, and mechanical contractors install this fitting in industrial and commercial piping systems where a four-way branch connection is required.

This cross fitting is suited for use in high-pressure gas, steam, water, and oil piping systems in commercial and industrial settings. The Class 3000 pressure rating makes it appropriate for demanding mechanical room and process piping applications. The 2-inch threaded end connections allow installation without welding, making it a practical choice for field assembly, repair work, and maintenance scenarios where heat-free joining is required or preferred.

Key Features

• Class 3000 pressure rating at 3000 psi for high-pressure piping service
• Forged carbon steel construction with ASTM A105, ASTM A182, and ASTM A350 certifications
• 2-inch NPT threaded end connections conforming to ASME B1.20.1
• Black finish forged fitting meeting ASME B16.11 dimensional and performance standards
• Four-way cross configuration for branching piping runs in a single fitting

Compatibility

Designed as an OEM-style threaded cross fitting for Class 3000 forged carbon steel piping systems using 2-inch NPT connections in commercial and industrial plumbing and mechanical applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable mechanical and plumbing codes. Isolate and depressurize the piping system fully before removing any existing fittings or making new connections. Apply an appropriate thread sealant or PTFE tape to the NPT threads before assembly. Inspect threads for damage before installation and do not overtighten, as forged fittings can crack iron or steel pipe if excessive force is applied.
