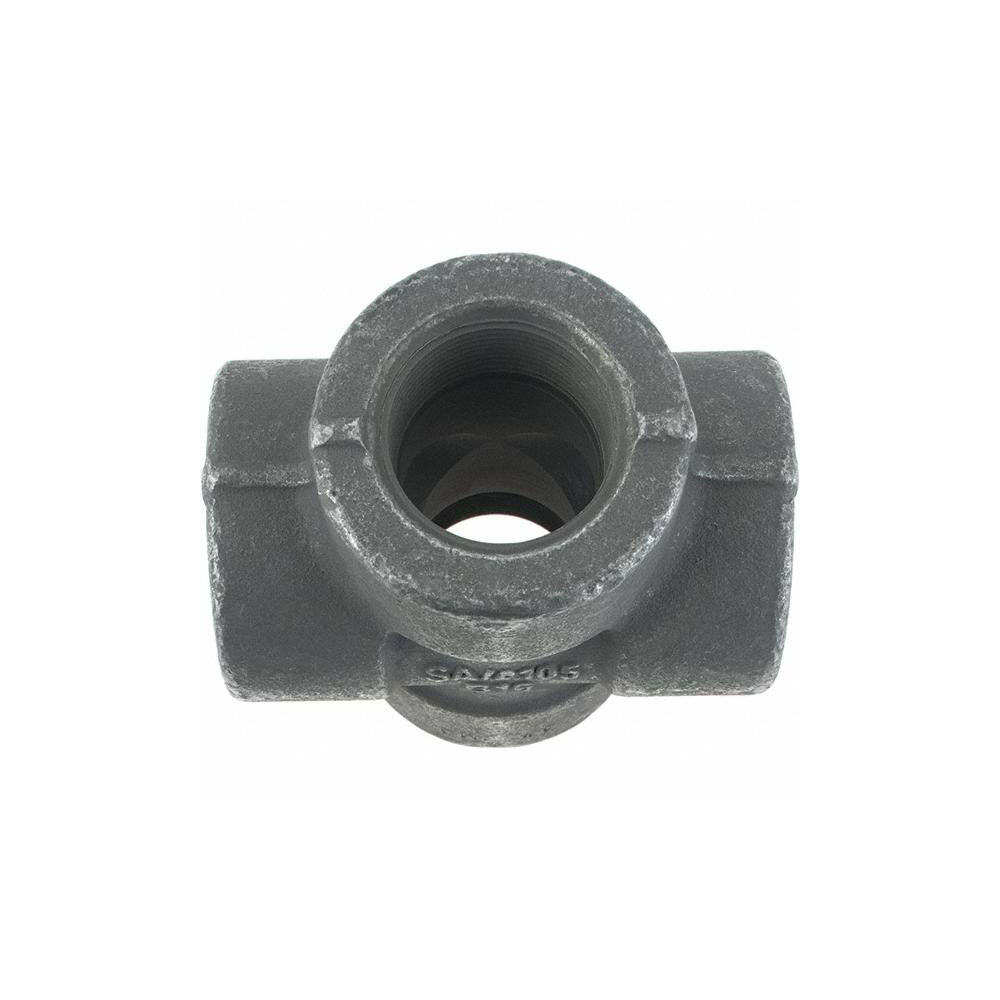

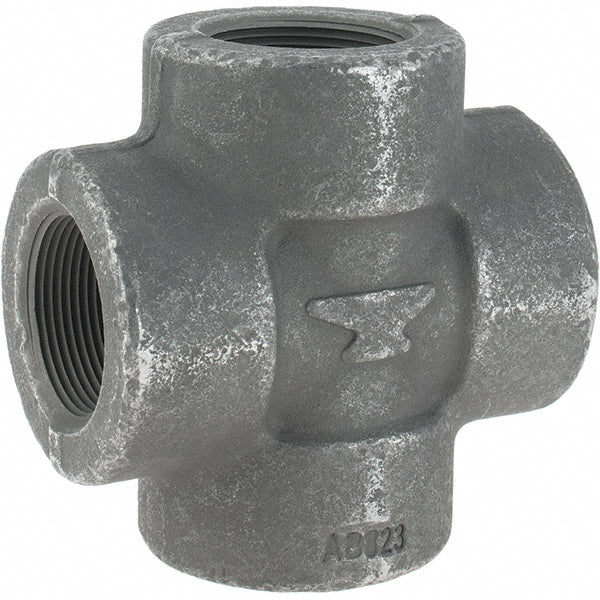

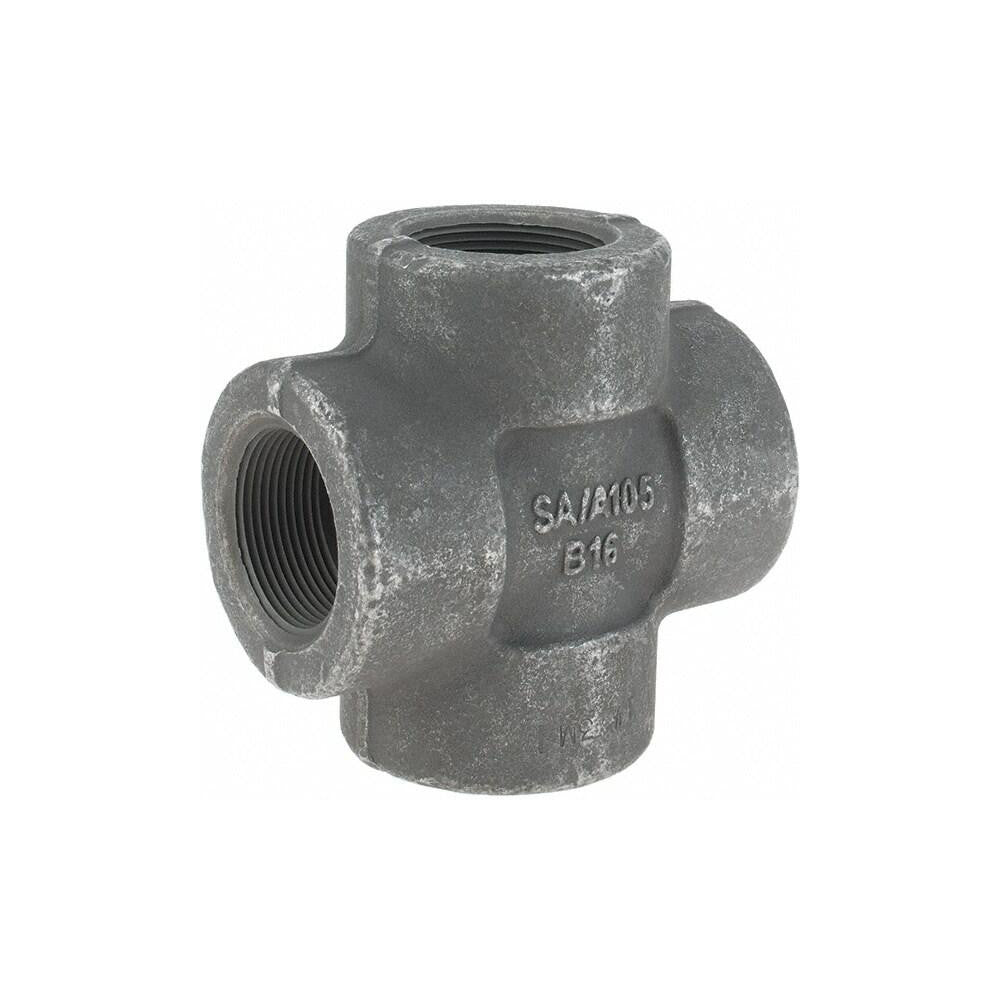

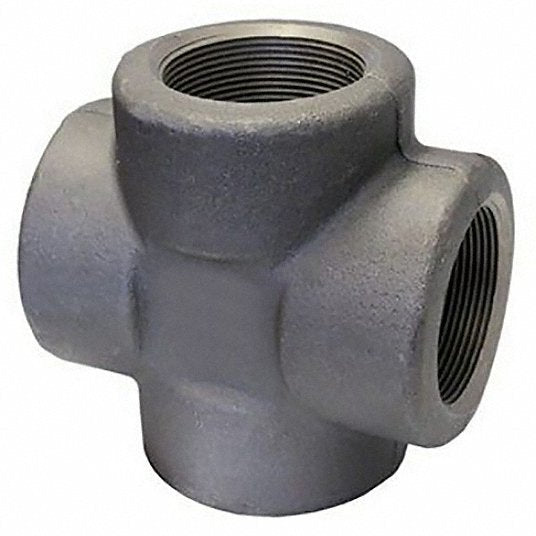

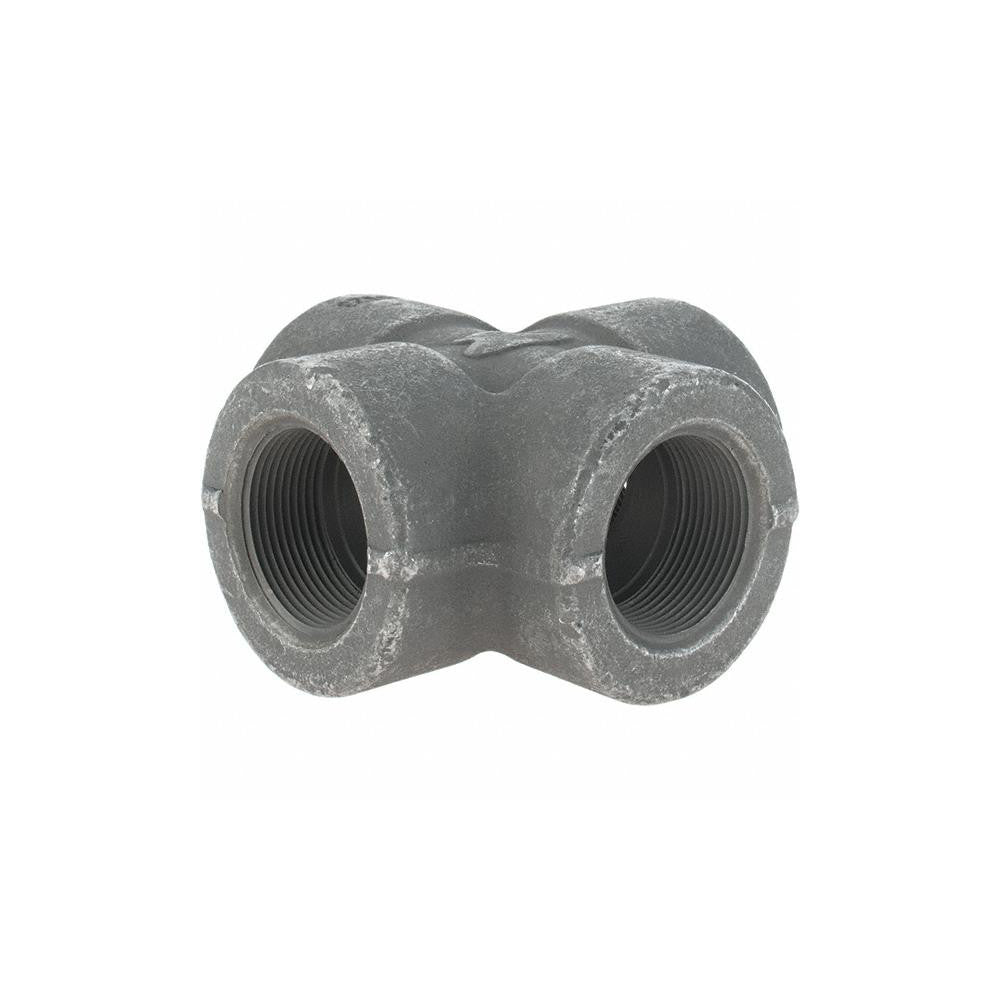

Anvil 0361130404 1-1/2 inches Black Forged Steel Cross

Brand: ANVIL
SKU: 0361130404
Availability: In Stock

Ships same day if ordered by 12 pm
$161.12
$161.12
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The ANVIL 0361130404 is a 1-1/2" black forged steel cross, designed for pipe schedule 160 and Class 3000 applications. This fitting is suitable for use with natural gas and oil, featuring female NPT threading on all sides. It withstands a maximum operating pressure of 1,500 psi at 150 Degrees F.

  • Constructed from forged steel for durability.
  • Features female NPT threaded connections.
  • Suitable for high-pressure applications up to 1,500 psi.

Product Highlights

The ANVIL 0361130404 forged steel cross ensures reliable connections in demanding piping systems.

Product Information

Standard Information

  • Brand: ANVIL
  • Manufacturer Part Number: 0361130404
  • Country of Origin: United States
Technical Specifications
Item
Cross
Class
Class 3000
Color
Black
Gender
Female
Pipe Size
1 1/2 in
Standards
ASME B16.11, B1.20.1, ASTM A106
Threading
NPT
Application
Natural Gas, Oil
Temp. Range
-20 Degrees to 550 Degrees F
Outside Dia.
2-31/32"
Fitting Shape
Cross
Includes Seal
No
Max. Pressure
1500 psi @ 150 Degrees F
Pressure Level
High Pressure (1000-3000 psi)
Connection Type
Threaded
Number of Holes
4.0
Fitting Pipe Size
1 1/2 in x 1 1/2 in x 1 1/2 in x 1 1/2 in
For Pipe Schedule
160
Fitting Side A Type
NPT
Fitting Side B Type
NPT
Fitting Side C Type
NPT
Fitting Side D Type
NPT
Pipe Fitting Gender
Female Female Female Female
Pipe Size (Fittings)
1-1/2"
Fitting Side A Gender
Female
Fitting Side B Gender
Female
Fitting Side C Gender
Female
Fitting Side D Gender
Female
Pipe Fitting Material
Black Forged Steel
Fitting Schedule/Class
Class 3000
Specific Fitting Shape
Cross
Fitting Connection Type
FNPT
Basic Pipe Fitting Shape
Cross
Pipe Size - Pipe Fitting
1-1/2"
Saturated Steam Pressure
300 psi @ 550 Degrees F
Maximum Operating Pressure
1,500 psi @ 150 Degrees F
Basic Pipe Fitting Material
Metal
Pipe Fitting Schedule/Class
Class 3000
Specific Pipe Fitting Shape
Cross
Pipe Fitting Connection Type
FNPT
Fitting Side A Nominal Pipe Size
1 1/2 in
Fitting Side B Nominal Pipe Size
1 1/2 in
Fitting Side C Nominal Pipe Size
1 1/2 in
Fitting Side D Nominal Pipe Size
1 1/2 in
Includes Pre-Applied Thread Sealant
No
End Style
NPT
Fitting / Connector Type
Cross
Material
Steel
Nominal Size
1-1/2 in
Schedule Rating
SCH 80/XH
Manufacturer
Anvil International
Manufacturer #
0361130404
Method of Manufacture
Forged
Pressure Class
3000 Lb
Series
FIG 2115
Liquid and Gas Pressure Rating (psi)
3000
MPN
0361130404
