Anvil 0361129604 Black Cross Fitting 1/2 Inch Class 3000

Product Description

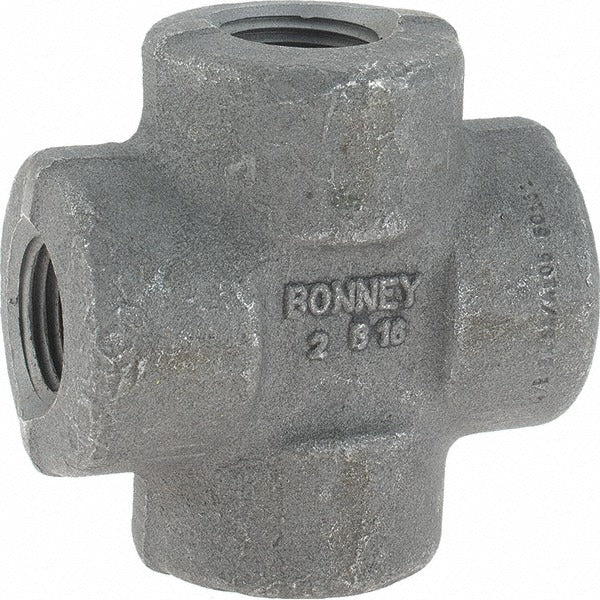

The ANVIL 0361129604 is a forged carbon steel black cross fitting designed for threaded pipe connections in high-pressure piping systems. This Class 3000 cross fitting provides a four-way junction point in a piping run and is rated for use with both liquid and gas service. With a black finish and NPT threading conforming to ASME B1.20.1, it meets the demands of commercial and industrial plumbing, mechanical, and oil and gas applications. Licensed plumbers and pipefitters install this type of fitting where branch connections are required on pressurized lines.

This fitting is suited for residential mechanical rooms, commercial HVAC piping, industrial process piping, and oil and gas distribution systems where a four-way pipe junction is needed at 1/2 inch pipe size. It is appropriate for both liquid and gas service at pressures up to 3000 psi, making it a reliable choice for high-pressure threaded piping assemblies. Installers working under ASME and ASTM standards will find this fitting compliant with ASME B16.11, ASTM A105, ASTM A182, and ASTM A350.

Key Features

• Class 3000 pressure rating at 3000 psi for liquid and gas service
• Forged carbon steel construction for strength and durability in high-pressure systems
• Black finish for corrosion resistance in standard service conditions
• NPT threaded end connections conforming to ASME B1.20.1
• Compliant with ASME B16.11, ASTM A105, ASTM A182, and ASTM A350
• 1/2 inch fitting size for compact piping runs and branch connections

Compatibility

Designed as an OEM-style replacement or new-install component for Class 3000 threaded forged steel piping systems using 1/2 inch NPT connections in liquid and gas service applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable codes including the International Plumbing Code (IPC) and applicable ASME standards. Isolate and depressurize the piping system completely before removing or installing any threaded fittings. Use an appropriate thread sealant or PTFE tape on NPT threads per the applicable code and system fluid compatibility requirements. Inspect threads for damage before installation and do not overtighten, as forged fittings can damage mating pipe threads if forced.
