Anvil 0320200280 Steel Coupling 4 Inch

Brand: ANVIL
SKU: 0320200280
Availability: In Stock

Ships same day if ordered by 12 pm

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$283.96
$283.96
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

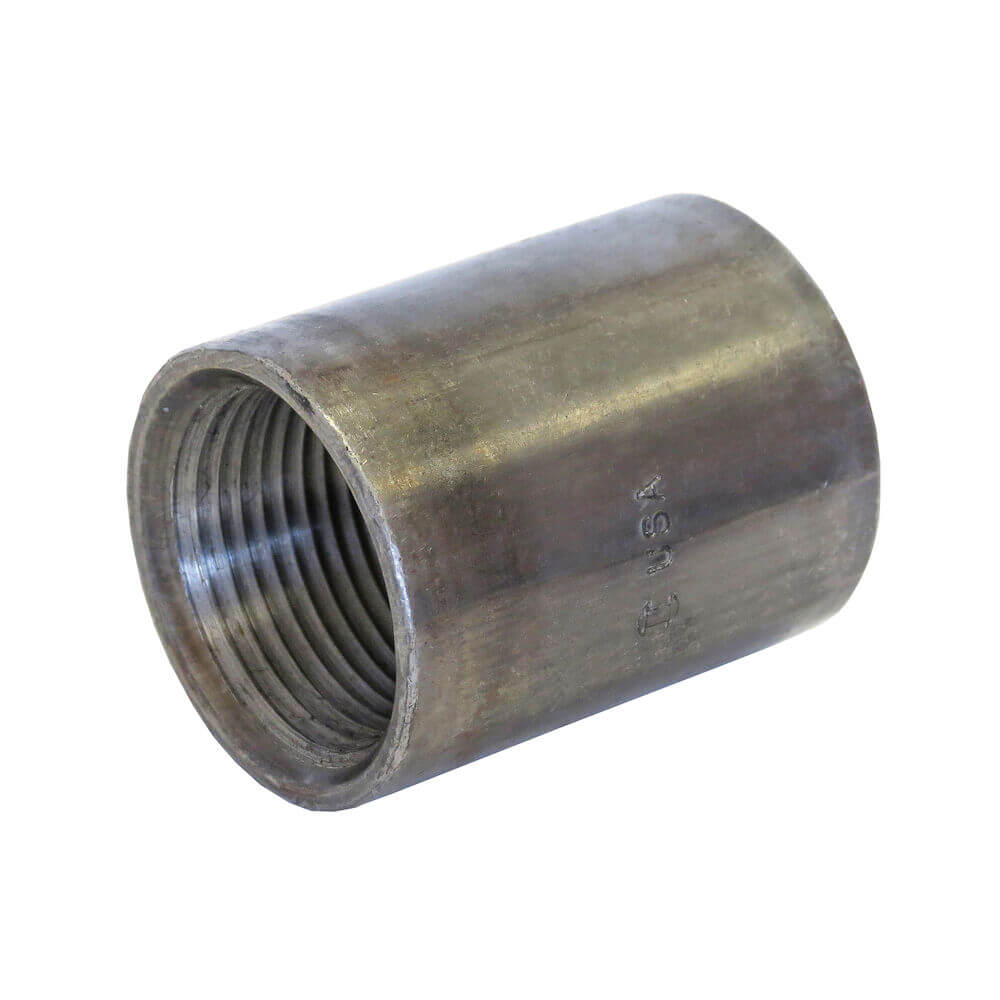

The ANVIL 0320200280 is a steel coupling with a 4 inch nominal size. This merchant coupling features a standard, taper tapped design with female NPT connections. It is suitable for domestic use and has a pressure rating of 300 psi. The coupling is constructed from ASTM A865 and A589 steel.

  • Standard, taper tapped design
  • Female NPT x Female NPT connection type
  • Constructed from ASTM A865 and A589 steel

Product Highlights

Steel coupling with 4 inch nominal size, featuring female NPT connections and a taper tapped design.

Product Information

Standard Information

  • Brand: ANVIL
  • Manufacturer Part Number: 0320200280
  • Country of Origin: US

Technical Specifications

  • MPN: 0320200280
  • Brand: ANVIL
  • Material: Steel
  • Series/Model: 336
  • Item Name: Merchant Coupling
  • Type: Standard, Taper Tapped
  • Nominal Size: 4 x 4 Inch
  • Connection Type: FNPT x FNPT
  • Outer Diameter: 5 Inch
  • Finish: Black
  • Pressure Class: 150 lb
  • Pressure Rating: 300 psi
  • Temperature Rating: -20 to 150 deg F
  • Thread Per Inch: 8
  • Body Material: Malleable Iron
  • Max. Pressure: 300 psi @ 150°F
  • Pipe Size: 4"
  • Saturated Steam Pressure: 150 psi
  • Temp. Range: -20°F to +150°F
  • HS Code: 7307923010
