Anvil 0320200058 Steel Coupling 1 Inch

Product Description

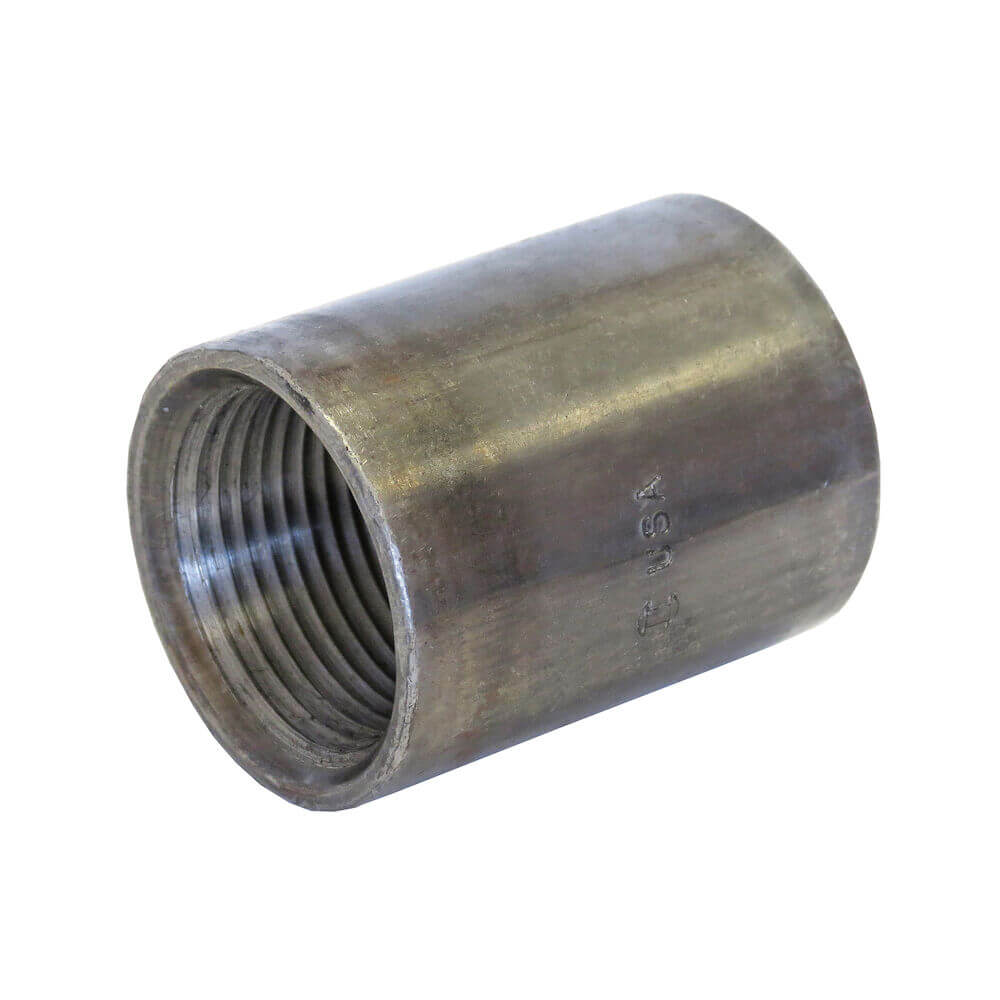

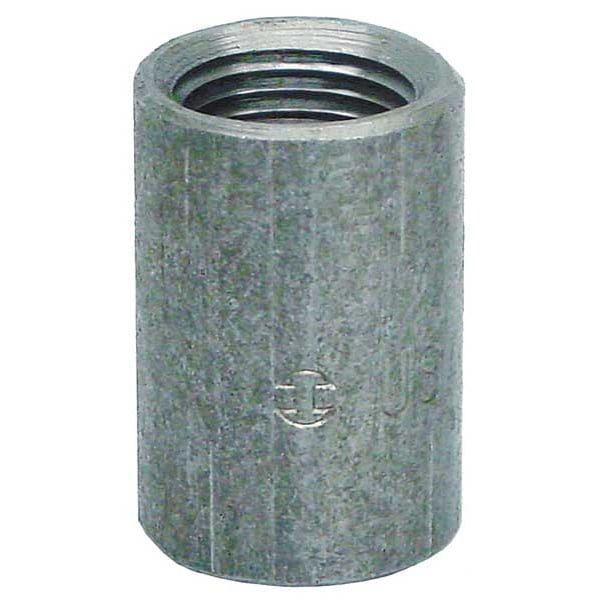

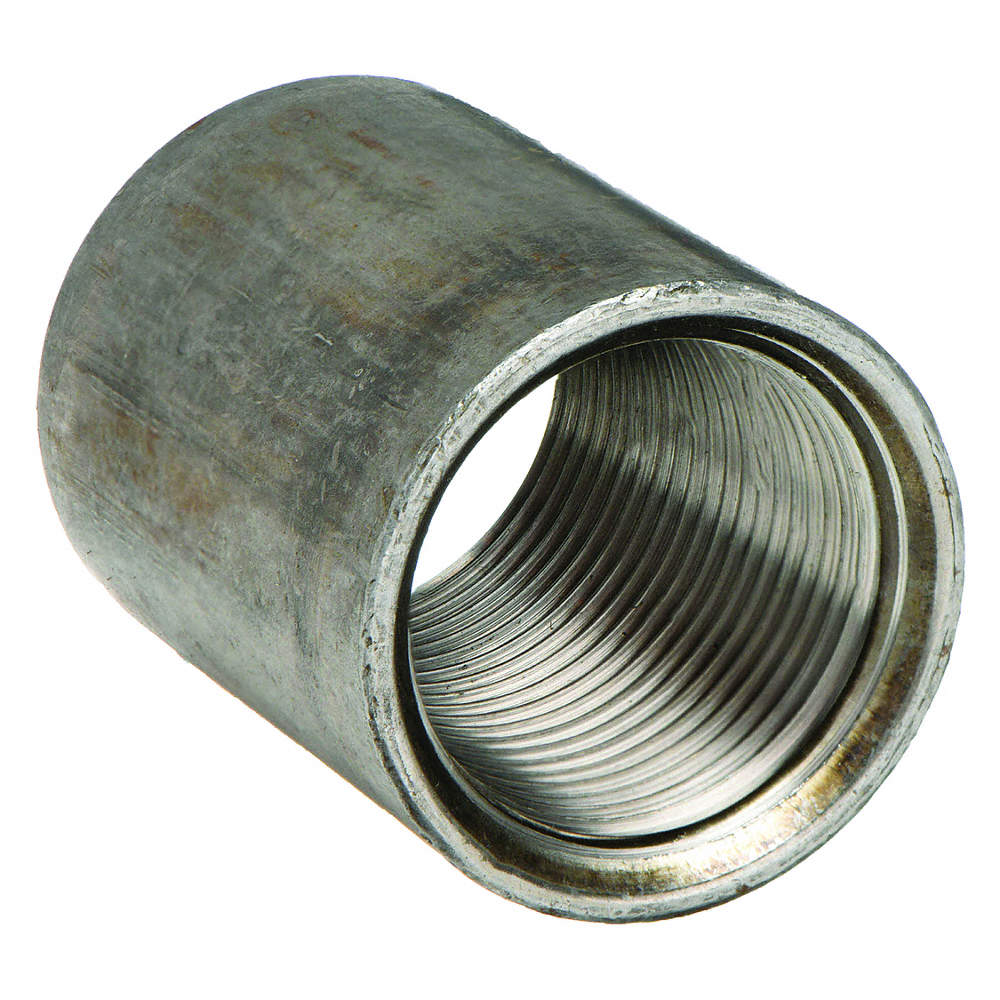

The ANVIL 0320200058 steel coupling is a straight tapped merchant full coupling. Designed for use with air, natural gas, non-potable water, oil, and steam applications. It has a 1 inch nominal size and FNPT connection type.

• Standard & Approvals: ASTM A-865 and A-589, ASME B16.3
• Fitting Connection Type: FNPT
• Pipe Fitting Material: Malleable Iron

Product Highlights

The ANVIL steel coupling is suitable for various applications with a maximum pressure of 300 psi @ 150 Degrees F.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0320200058
• Country of Origin: United States

Technical Specifications

• Brand: Anvil
• Item Name: Merchant Full Coupling
• Type: Straight Tapped
• Nominal Size: 1 Inch
• Connection Type: FNPT
• Outer Diameter: 1.576 Inch
• Length: 2 Inch
• Material: Steel
• Finish: Black
• Schedule: STD
• Pressure Class: 150#
• Pressure Rating: 300 psi
• Temperature Rating: -20 to 350 deg F
• Thread Per Inch: 11-1/2 TPI
• Item: Merchant Coupling
• Application: Air, Natural Gas, Non-Potable Water, Oil, Steam
• Basic Fitting Shape: Coupling
• Body Material: Malleable Iron
• Class: Class 150
• Color: Black
• Fitting Side A Gender: Female
• Fitting Side A Nominal Pipe Size: 1"
• Fitting Side A Type: NPS
• Fitting Side B Gender: Female
• Fitting Side B Nominal Pipe Size: 1 in
• Fitting Side B Type: NPS
• For Pipe Schedule: 40
• Includes Pre-applied Thread Sealant: No
• Includes Seal: No
• Max. Pressure: 300 psi @ 150 F
• Maximum Operating Pressure: 300 psi @ 150 Degrees F
• Pipe Fitting Material: Steel
• Pipe Size: 1"
• Saturated Steam Pressure: 150 psi @ 350 Degrees F
• Specific Fitting Shape: Merchant Full Coupling
• Temp. Range: -20 F to +150 F
• standard: ANSI B1.20.1, ASME B16.11, ASTM A105, ASTM A182, ASTM A350
• MPN: 0320200058
• UPC: 069029134271
• Country of Origin: United States
• Pipe Size (Fittings): 1 in
• Pipe Size - Pipe Fitting: 1 in
• Fitting Connection Type: FNPT
• Basic Pipe Fitting Material: Metal
• Fitting Schedule/Class: Class 150
• Basic Pipe Fitting Shape: Coupling
• Specific Pipe Fitting Shape: Coupling
