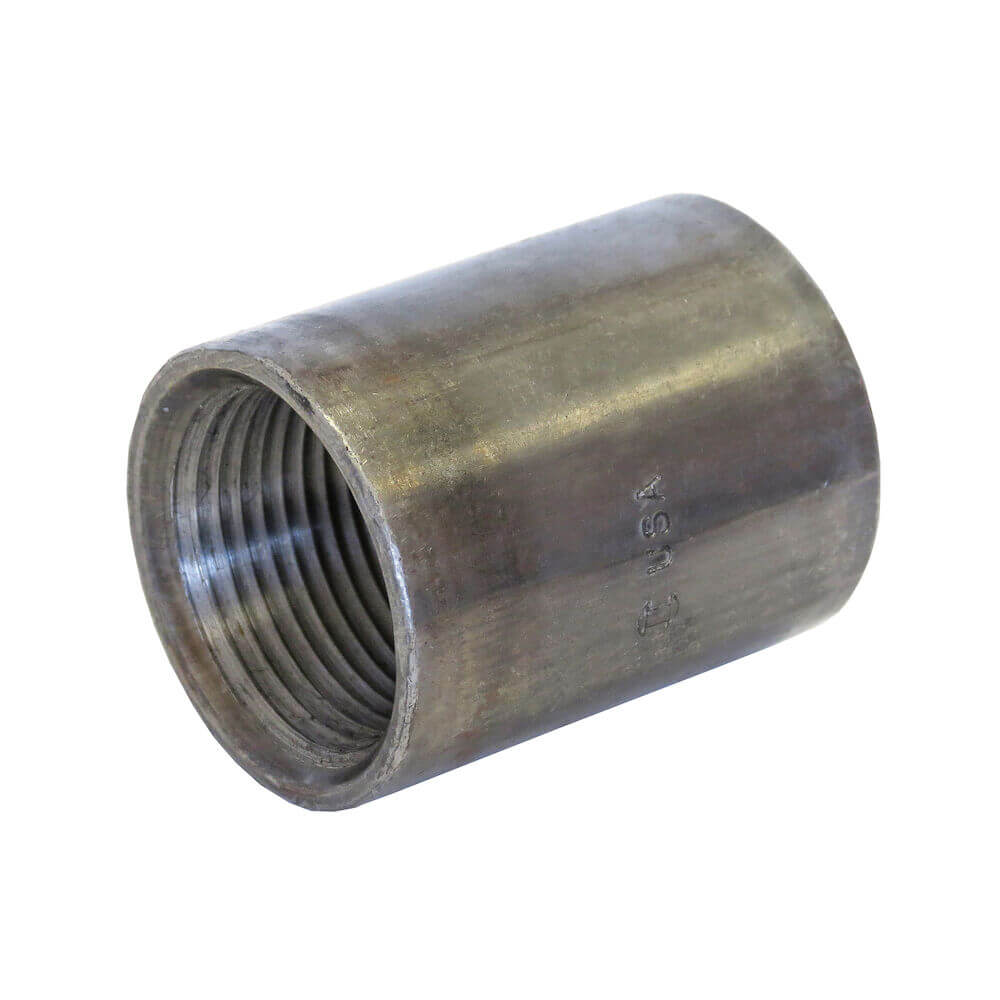

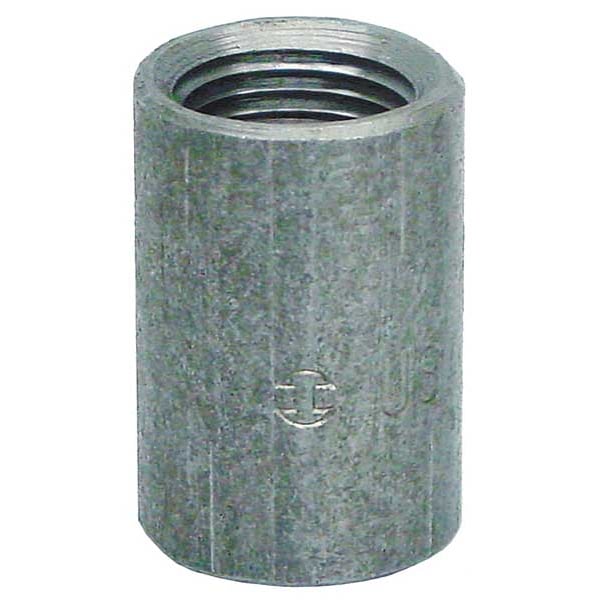

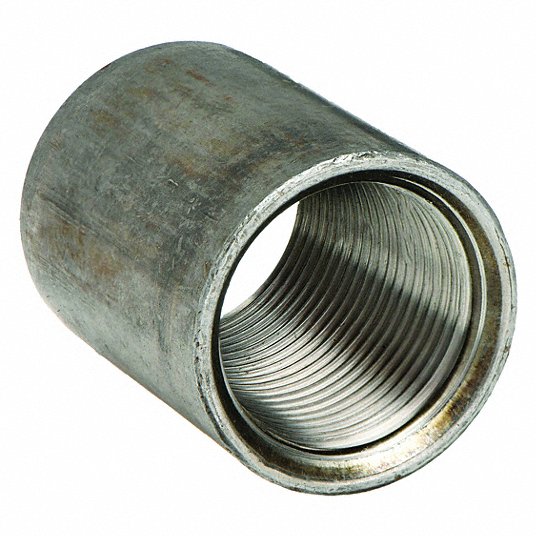

Anvil 0320200041 Steel Coupling 3/4 Inch

Product Description

The ANVIL 0320200041 is a steel coupling designed for connecting pipes. This straight tapped merchant coupling is suitable for medium-pressure pipe applications, offering easy disassembly compared to unthreaded fittings. It requires a thread sealant, such as PTFE tape, to ensure a leak-proof connection.

• Straight fitting shape
• Suitable for air, gases, non-potable water, and oils
• Maximum operating pressure of 300 psi @ 150° F

Product Highlights

The ANVIL steel coupling ensures secure connections in various piping systems, providing reliability and ease of maintenance.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0320200041
• Country of Origin: US

Technical Specifications

• Brand: ANVIL
• MPN: 0320200041
• Material: Steel
• Fitting Shape: Straight
• Connector Type: Coupling
• Class: 150
• For Pipe Schedule: 40
• Maximum Operating Pressure: 300 psi @ 150° F
• Includes Seal: No
• Includes Pre-Applied Thread Sealant: No
• Fitting Side 1: Female 3/4 in NPS Threaded
• Fitting Side 2: Female 3/4 in NPS Threaded
• For Media Type: Air; Gases; Non-Potable Water; Oils
• Standards: ANSI B1.20.1 ASME B16.11 ASTM A105 ASTM A182 ASTM A350
• UNSPSC: 40142315
• Model: 0320200041
• Type: Pipes, Valves & Fittings > Fittings > Black Pipe Fittings
• California Prop 65 Warning: N
• Country of Origin: US
• Weight: 0.2800
• Length: 1.520
• Width: 1.300
• Depth: 1.300
• Voltage: N/A
• Features: Straight, Steel, Class Class 150, For Pipe Schedule Schedule 40,
• Power Source: N/A
• Number of Batteries: N/A
• Battery Size: N/A
• Battery Included: No
• Motor Type: N/A
• Battery Capacity: N/A
• Battery Life: N/A
• Cable Length: N/A
• Pipe Size (Fittings): 3/4"
• Pipe Size - Pipe Fitting: 3/4 in
• Pipe Size: 3/4"
• Fitting Side A Nominal Pipe Size: 3/4 in
• Fitting Side B Nominal Pipe Size: 3/4 in
• Specific Fitting Shape: Merchant Full Coupling
• Fitting Connection Type: FNPT
• Pipe Fitting Material: Steel
• Item: Merchant Coupling
• Pipe Fitting Schedule/Class: Class 150
• Fitting Schedule/Class: Class 150
• Basic Pipe Fitting Shape: Coupling
• Saturated Steam Pressure: 150 psi
• Temp. Range: -20 Degrees to 350 Degrees F
• Max. Pressure: 300 psi @ 150 Degrees F
• Basic Pipe Fitting Material: Metal
• Application: Air, Natural Gas, Non-Potable Water, Oil, Steam
• Fitting Side A Type: NPS
• Fitting Side B Type: NPS
• Fitting Side B Gender: Female
• Fitting Side A Gender: Female
