Anvil 0319908083 Hex Bushing 2-1/2x1-1/4 inches

Product Description

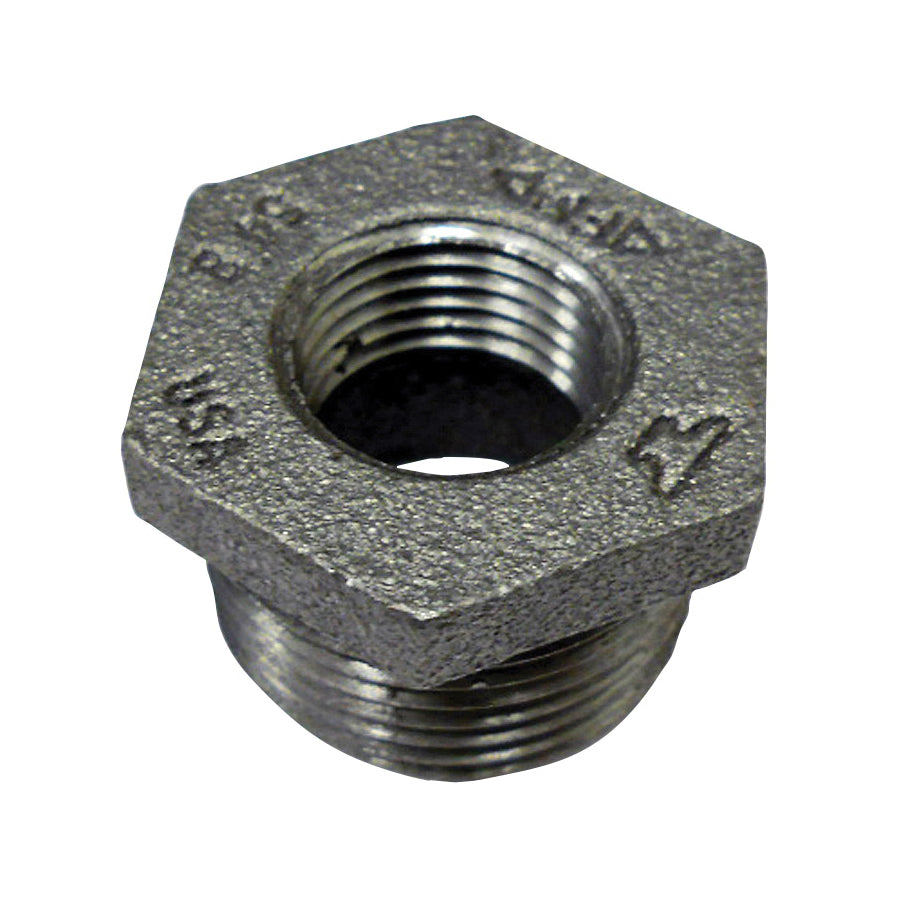

The ANVIL 0319908083 hex bushing is a 2-1/2X1-1/4" reducing type fitting made from cast iron with a galvanized finish. It is suitable for plumbing, mechanical, HVAC, industrial, fire protection, mining, oil, and gas applications. This bushing conforms to ASME B16.3/B1.20.1 and ANSI/NSF 61 standards.

• Inside hex head
• Reducing type
• Galvanized finish

Product Highlights

The Anvil hex bushing is made of cast iron with galvanized finish and is lead-free.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0319908083
• Country of Origin: US

Technical Specifications

• MPN: 0319908083
• Reference ID: ANVIL0319908083
• Brand: ANVIL
• Height: 2.5
• Length: 2.5
• Width: 2.5
• Domestic / Import: Domestic
• Finish: Galvanized
• Fitting / Connector Type: Bushing
• Material: Cast Iron
• Nominal Size: 2-1/2 x 1-1/4 in
• Manufacturer: Anvil International
• Type: Hex Head
• Brand Name: Anvil International
• Mfg Part#: 0319908083
• Item: Hex Bushing
• Class: 125 lbs.
• Classification: 125
• Connection Type: Threaded
• End Connections: Thread x Thread
• Fitting Size: 2 1/2" x 1 1/4"
• Fitting Type: Bushing, Hex
• Liquid And Gas Pressure Rating: 125 psi
• Pressure Rating: 125 psi
• Schedule: Schedule 40
• Size A: 1 1/4"
• Size B: 2 1/2"
• Steam Pressure Rating: 125 psi
• Temp. Rating: -20°F to +150°F
• Temperature: -20°F to +150°F
• Type A: NPSC
• Type B: NPSC
• End Connection: Thread
