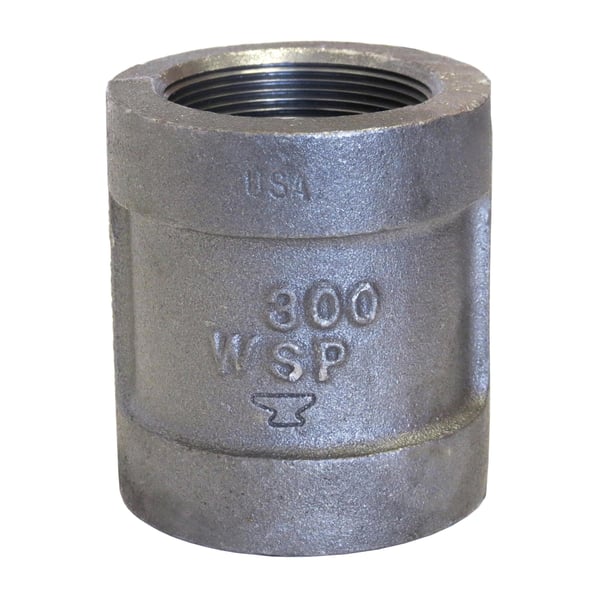

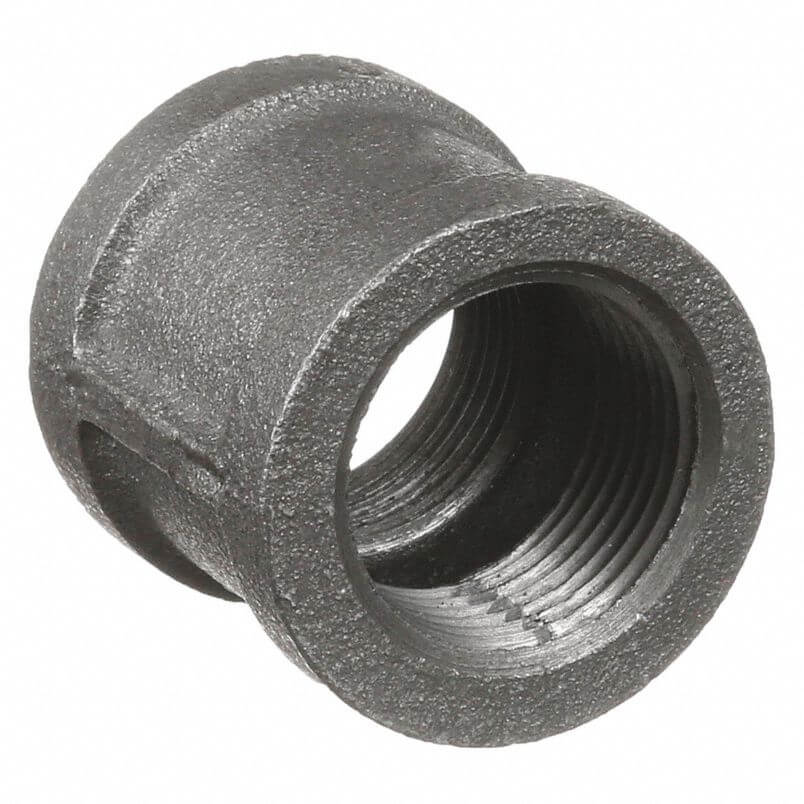

Anvil 0310539804 Coupling 2-1/2 Inch Nominal Pipe Size

Product Description

The ANVIL 0310539804 coupling is a black malleable iron fitting designed for connecting pipes. Suitable for air, natural gas, non-potable water, oil, and steam applications. It conforms to ASME B16.3 and is 100% gas tested at a minimum of 100 PSI. Ideal for schedule 80 pipes.

• Constructed from durable malleable iron
• Suitable for a variety of media including air, natural gas, and steam
• Compliant with ASME B16.3 standards

Product Highlights

The Anvil coupling ensures secure and reliable connections in diverse piping systems.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0310539804
• Country of Origin: US

Technical Specifications

• Item: Coupling
• Application: Air, Natural Gas, Non-Potable Water, Oil, Steam
• Basic Fitting Shape: Coupling
• Body Material: Malleable Iron
• Class: Class 300
• Color: Black
• Connection Type: FNPT
• Fitting Side A Gender: Female
• Fitting Side A Nominal Pipe Size: 2 1/2"
• Fitting Side A Type: NPT
• Fitting Side B Gender: Female
• Fitting Side B Nominal Pipe Size: 2 1/2"
• Fitting Side B Type: NPT
• For Pipe Schedule: 80
• Includes Pre-applied Thread Sealant: No
• Includes Seal: No
• Maximum Pressure: 1000 psi @ 150°F
• Pipe Fitting Material: Malleable Iron
• Pipe Size: 2 1/2"
• Saturated Steam Pressure: 300 psi
• Specific Fitting Shape: Coupling
• Standards: Aar Approved, Asme B16.3, Fm Approved, Ul Listed
• Operating Temperature: -20°F to +150°F
• Features: Straight, Malleable Iron, Class Class 300, For Pipe Schedule Schedule 80, 2 1/2 in, Female, Threaded, 1, 000 psi @ 150 Degrees F Maximum Operating Pressure
• Item Length: 4.000
• Item Height: 4.300
• Item Width: 4.000
• Country of Origin: US
• California Prop 65 Warning: N
• Compatible Brand: ANVIL
• Item Weight: 5.2900
• MPN: 0310539804
• Weight: 5.2900
• Length: 4.000
• Width: 4.000
• Depth: 4.000
