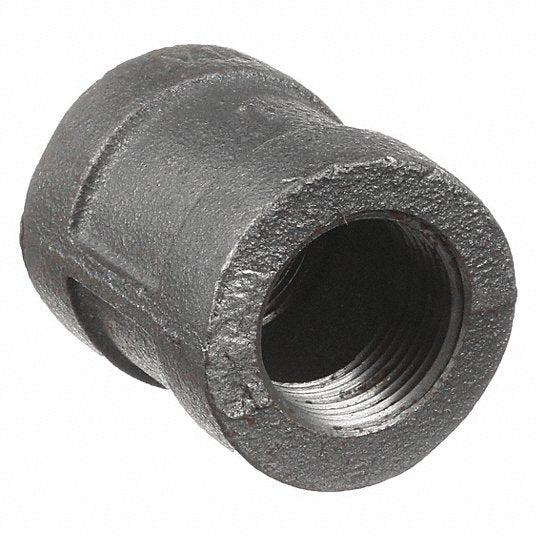

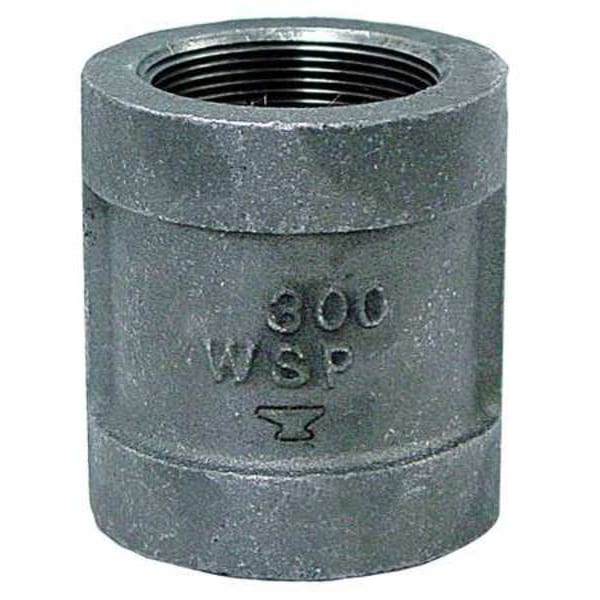

Anvil 0310538004 1/4 inches BM 300# Coupling

Product Description

The ANVIL 0310538004 is a 1/4" BM 300# coupling. These Class 300 threaded fittings connect with medium- to high-pressure (300-3000 psi) pipe. This coupling is suitable for air, natural gas, non-potable water, oil, and steam applications and is constructed from malleable iron for pipe schedule 80.

• Constructed from malleable iron
• Suitable for medium- to high-pressure applications
• Maximum operating pressure of 2,000 psi @ 150° F

Product Highlights

This ANVIL coupling is ideal for connecting pipes in various applications, ensuring a secure and reliable connection.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0310538004
• Country of Origin: USA

Technical Specifications

• MPN: 0310538004
• Brand: ANVIL
• Specific Fitting Shape: Coupling
• Pipe Fitting Material: Malleable Iron
• Fitting Side A Nominal Pipe Size: 1/4 in
• Fitting Side B Nominal Pipe Size: 1/4 in
• Fitting Side A Type: NPT
• Fitting Side B Type: NPT
• Class: Class 300
• Standards: AAR Approved, ASME B16.3, FM Approved, UL Listed
• Basic Fitting Shape: Coupling
• Application: Air; Natural Gas; Non-Potable Water; Oil; Steam
• Fitting Side A Gender: Female
• Fitting Side B Gender: Female
• For Pipe Schedule: 80
• Includes Pre-Applied Thread Sealant: No
• Includes Seal: No
• Maximum Operating Pressure: 2,000 psi @ 150° F
• Pipe Size (Fittings): 1/4"
• Max. Pressure: 2000 psi@150 Degrees F
• Saturated Steam Pressure: 300 psi @ 550 Degrees F
• Temp. Range: -20 Degrees to 550 Degrees F
• Pipe Fitting Schedule/Class: Class 300
• Pipe Size - Pipe Fitting: 1/4 in
• Pipe Size: 1/4"
• Model: 0310538004
