Anvil 0310530605 2 BM 300# Cross

Product Description

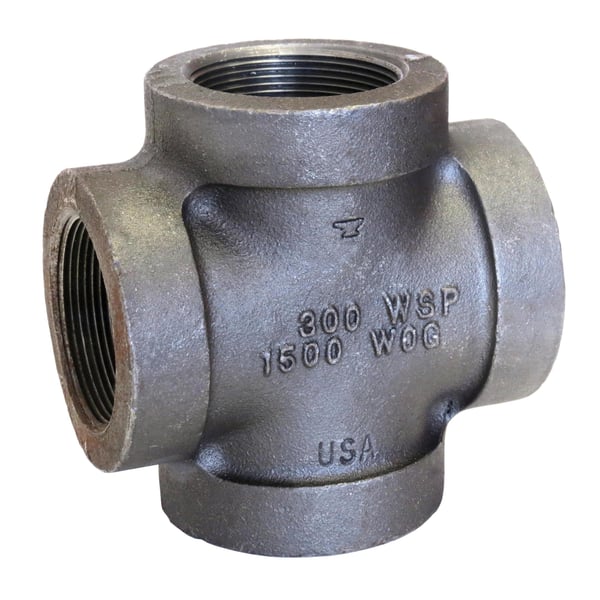

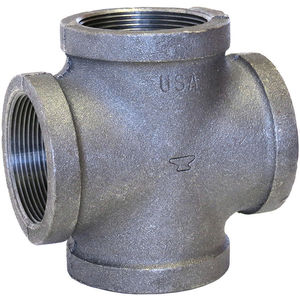

The ANVIL 0310530605 is a 2 BM 300# Cross. This fitting, part of the FIG 1165 series, is designed to hold two different pipe parts together and direct gas and liquid movement. Constructed from malleable iron with a black oxide finish, it features a 2 in nominal size and FNPT end style. It is suitable for applications within a temperature range of -20 to 150 deg F.

• Malleable iron pipe fittings hold two different pipe parts together and direct gas and liquid movement.
• Manufactured in the United States of America.
• Trade Agreement Act, 52.225-5, compliant. Origin is subject to change.

Product Highlights

This Anvil pipe cross is made from malleable iron with a black oxide finish and is suitable for connecting pipes in various applications.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0310530605
• Country of Origin: United States

Technical Specifications

• MPN: 0310530605
• Brand: ANVIL
• Domestic/Import: Domestic
• End Style: FNPT
• Finish: Black Oxide
• Fitting/Connector Type: Cross
• Material: Malleable Iron
• Nominal Size: 2 in
• Pressure Class: 300 lb
• Pressure Rating: 1500 psi
• Series: FIG 1165
• Temperature Rating: -20 to 150 deg F
• Type: Pipe Cross
• Minimum Operating Temperature: -20°F
• Maximum Operating Temperature: 150°F
• Class: 300 lb
• Schedule: 80
