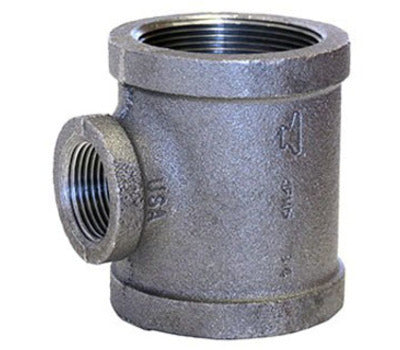

ANVIL 0310049804 2 x 1-1/2 x 2 in. Female Black Malleable Iron Reducing Tee

Product Description

The ANVIL 0310049804 is a black malleable iron reducing tee, designed for use in potable water applications. This fitting conforms to ASME B16.3 dimensions and pressure ratings. It is suitable for various pipe sizes, specifically two inches, one and a half inches, and two inches.

• UL listed and FM approved for quality assurance.
• Tested for through wall porosity using an air under water process.
• Applicable for Class 150 and Class 300 installations.

Product Highlights

This reducing tee provides secure connections and is essential for creating branch line connections in plumbing systems.

Product Information

Standard Information

• Brand: ANVIL
• Catalog Number: 0310049804

Technical Specifications

• Material: Malleable Iron
• Length: Four and seven-sixteenths inches
• Weight: Two point twenty-four pounds
• Application: Potable Water
• Pressure Rating: 150 lb
• Maximum Temperature Rating: Plus one hundred fifty degrees Fahrenheit
• Minimum Temperature Rating: Minus twenty degrees Fahrenheit
• Specifications Met: ASME B16.3, cULus Listed, FM Approved, ANSI/NSF 61, ASTM A197, ASME B1 20.1
