Anvil 0309002202 threaded flange 1 inch 4-1/4 inch class 125 galvanized

Product Description

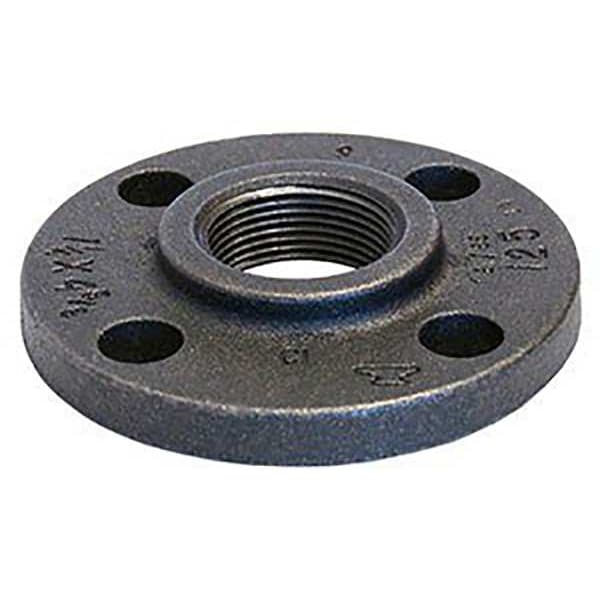

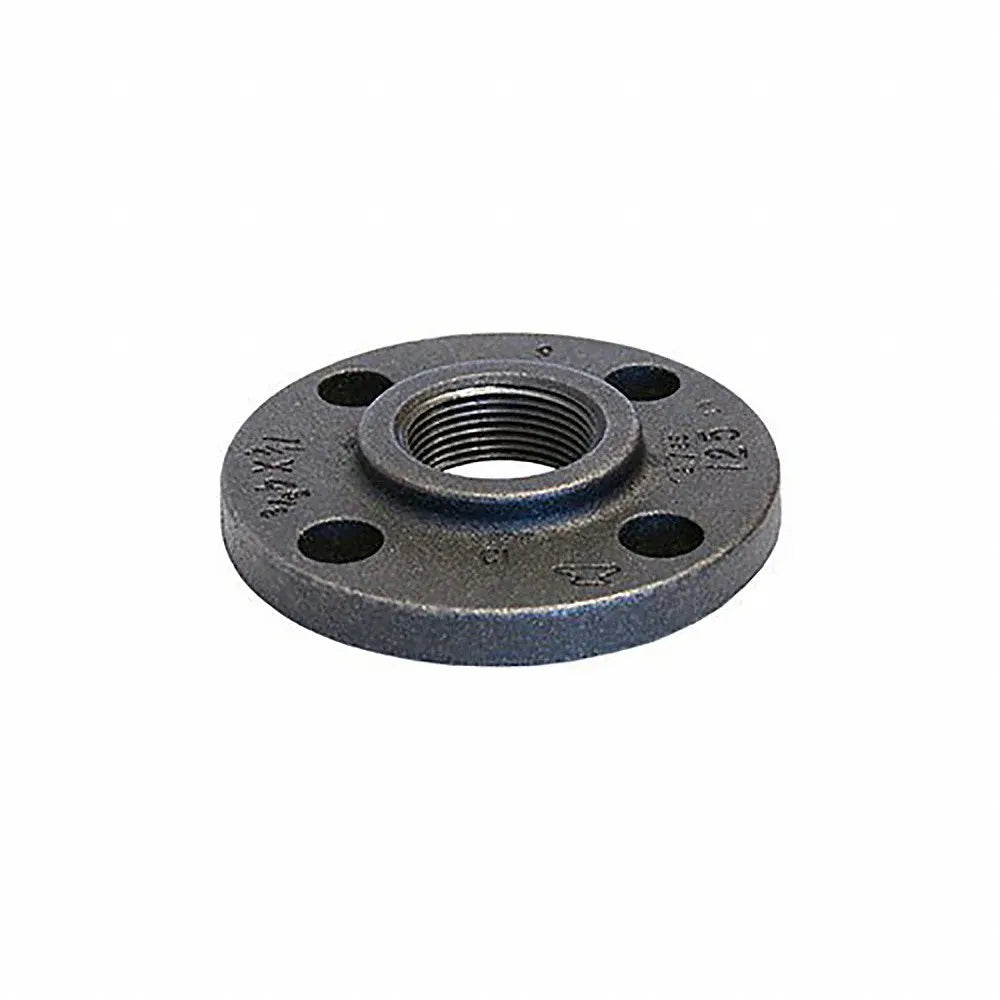

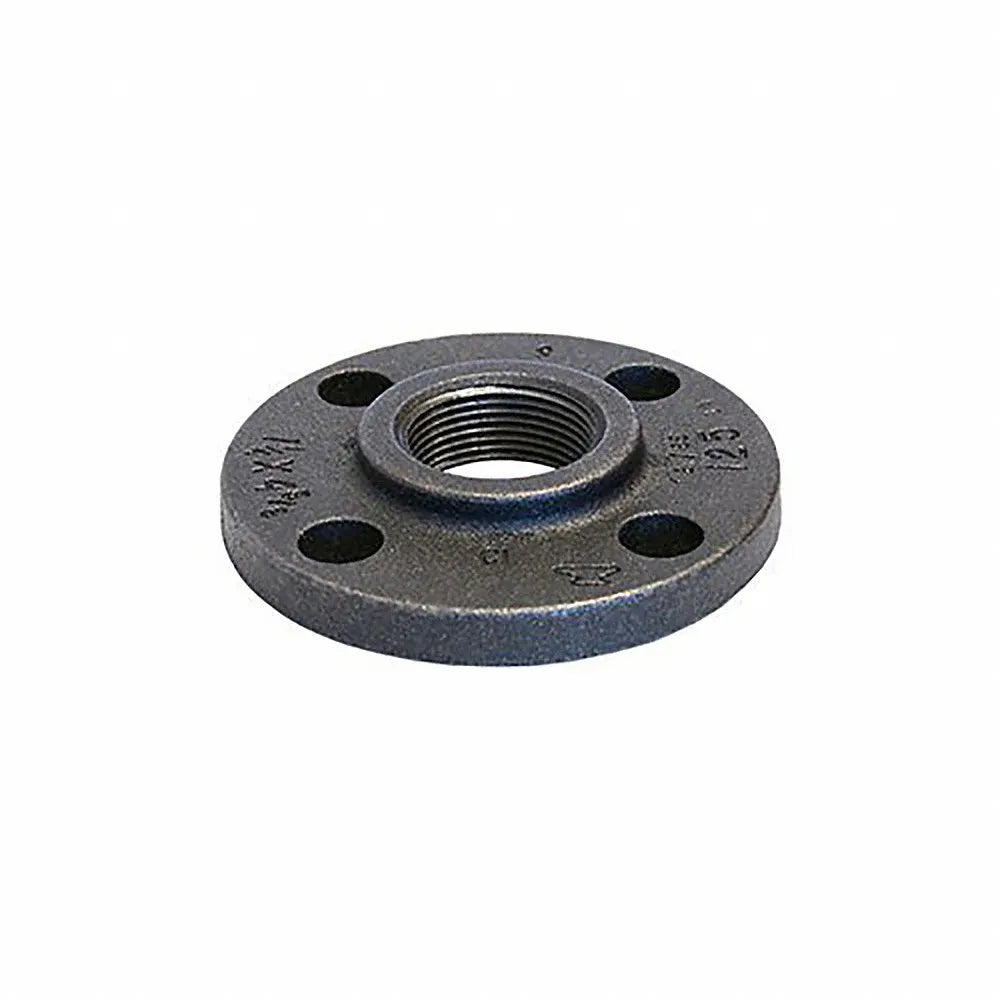

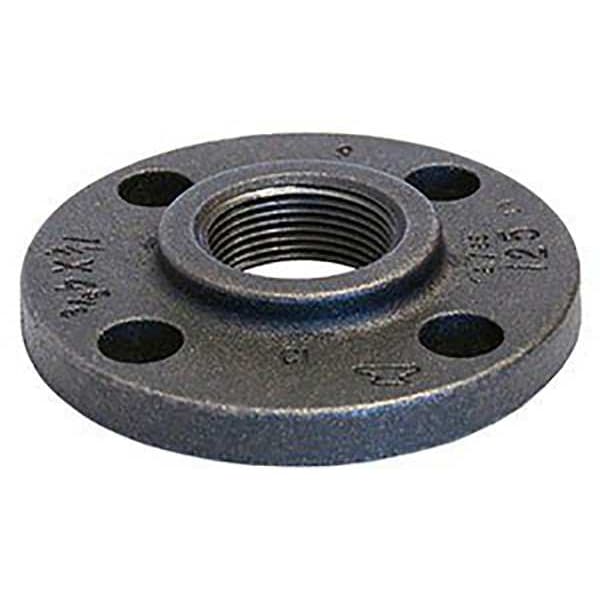

The ANVIL 0309002202 Threaded Flange is a Class 125 cast iron component, galvanized for durability. Designed for a 1 inch nominal pipe size, it features a flanged x FNPT connection type and a 4 1/4 inch outside diameter. This flange is suitable for air, oil, and non-potable water applications, with a maximum operating pressure of 175 psi at 150 degrees F. It connects to external pipe threads without welding.

• Cast Iron construction with galvanized finish for enhanced durability.
• Designed for 1 inch nominal pipe size with a Class 125 pressure rating.
• Flanged x FNPT connection type, suitable for air, oil, and non-potable water.

Product Highlights

Galvanized cast iron threaded flange for 1 inch pipe, Class 125, 175 psi max.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0309002202
• Country of Origin: United States

Technical Specifications

• Product Type: Pipe Flange
• Class: Class 125
• Color: Silver
• Application: Air, Oil, Non-Potable Water
• Flange Type: Threaded Flange
• Finish/Coating: Galvanized
• Flange Thickness: 7/16 in
• For Pipe Schedule: 40
• Nominal Pipe Size: 1 in
• Fitting Connection Type: Flanged x FNPT
• Flange Outside Diameter: 4 1/4 in
• Maximum Operating Pressure: 175 psi @ 150 Degrees F
• Pipe Fitting Material: Cast Iron
• Standards: ASME B1.20.1, ASME B16.1, ASTM A126, ASTM A153
• Connection Surface: Flat
• Material Grade: A197
