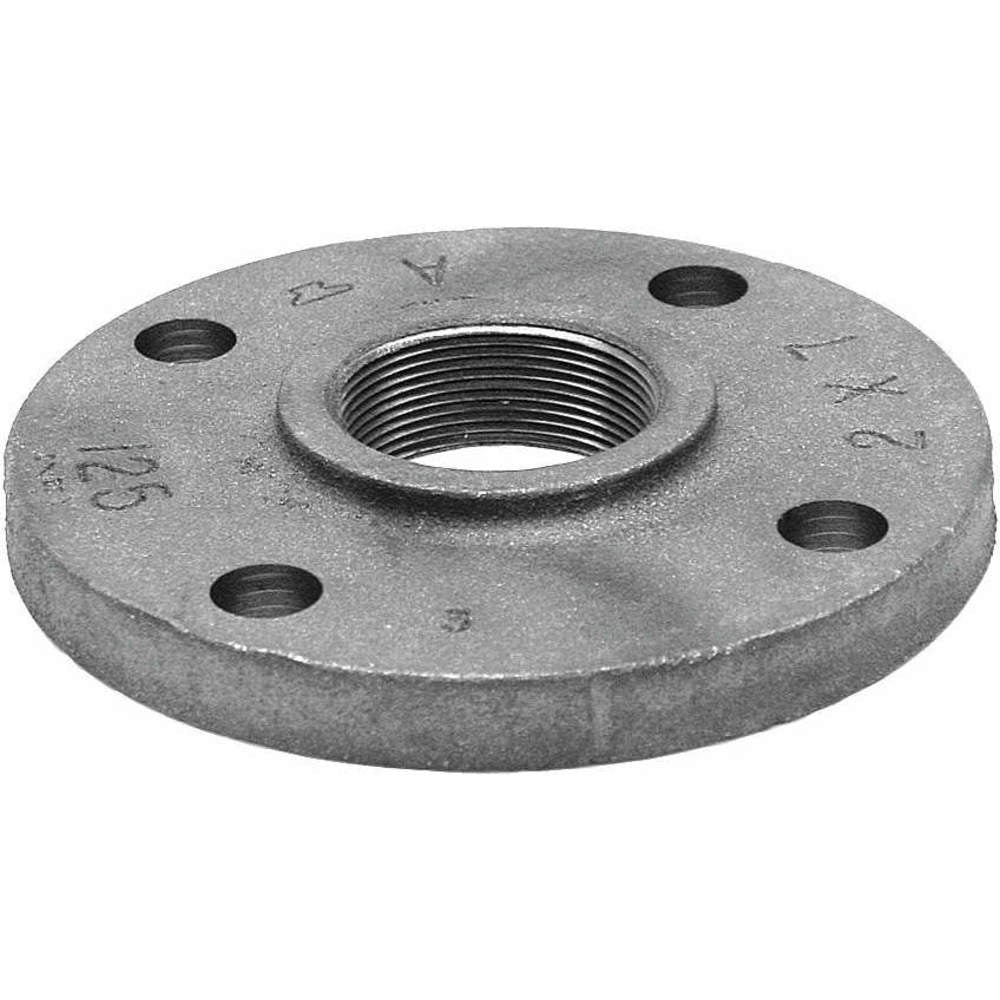

Anvil 0308010909 Reducing Companion Flange 2 in Nominal Pipe Size 13-1/2 in Diameter

Product Description

The Anvil 0308010909 is a cast iron reducing companion flange designed for use with 2 in nominal pipe and threaded flanged x FNPT connections for floor and drain applications. It features a faced and drilled flange with four bolt holes and a 13-1/2 in flange outside diameter and overall length. The flange is Class 125, rated to 175 psi, and suitable for temperatures from -20 F to 150 F for fire protection and non-potable water systems.

• Cast iron construction with faced and drilled flange; flanged x FNPT threaded connection; Class 125.
• 2 in nominal pipe size; flange outside diameter and overall length 13-1/2 in; four bolt holes.
• Maximum operating pressure 175 psi; temperature range -20 F to 150 F; intended for floor/drain, fire protection and non-potable water systems.

Product Highlights

Cast iron reducing companion flange, 2 in nominal, Class 125, 175 psi, 13-1/2 in diameter.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0308010909
• Country of Origin: US
