Anvil 0308008002 CI 125# Thrd Red Flg 2X7-1/2 inches

Product Description

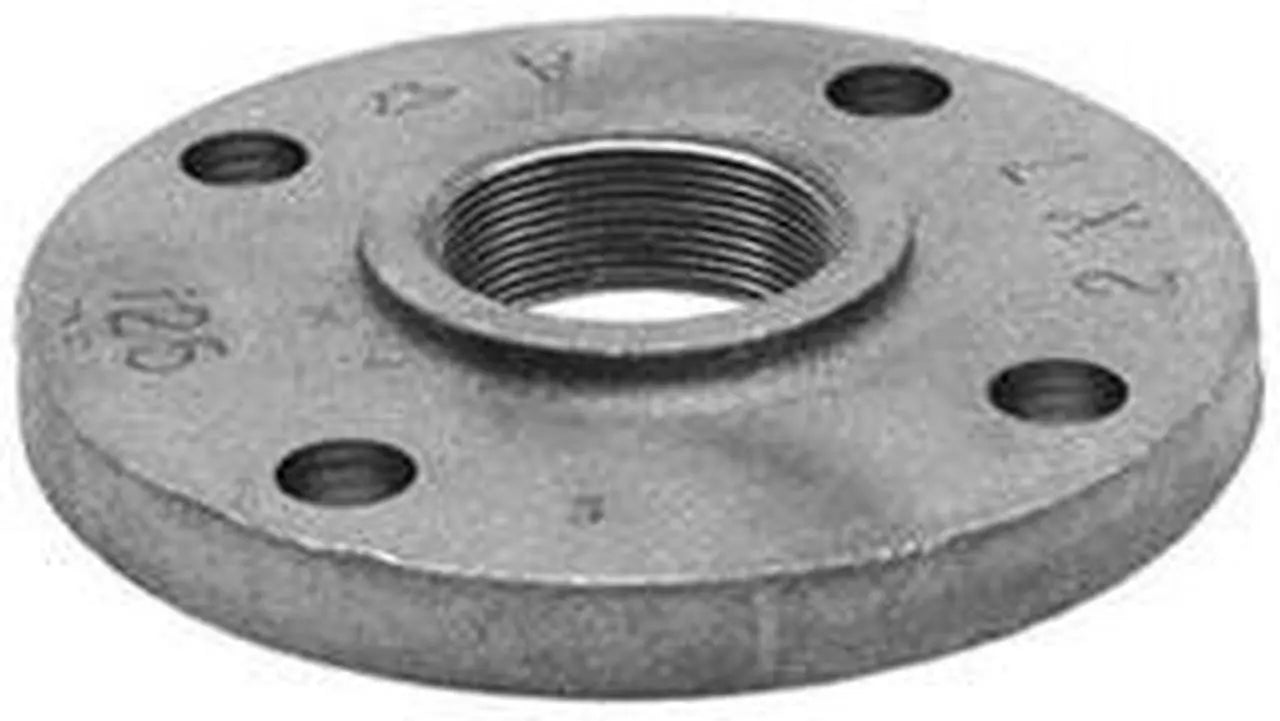

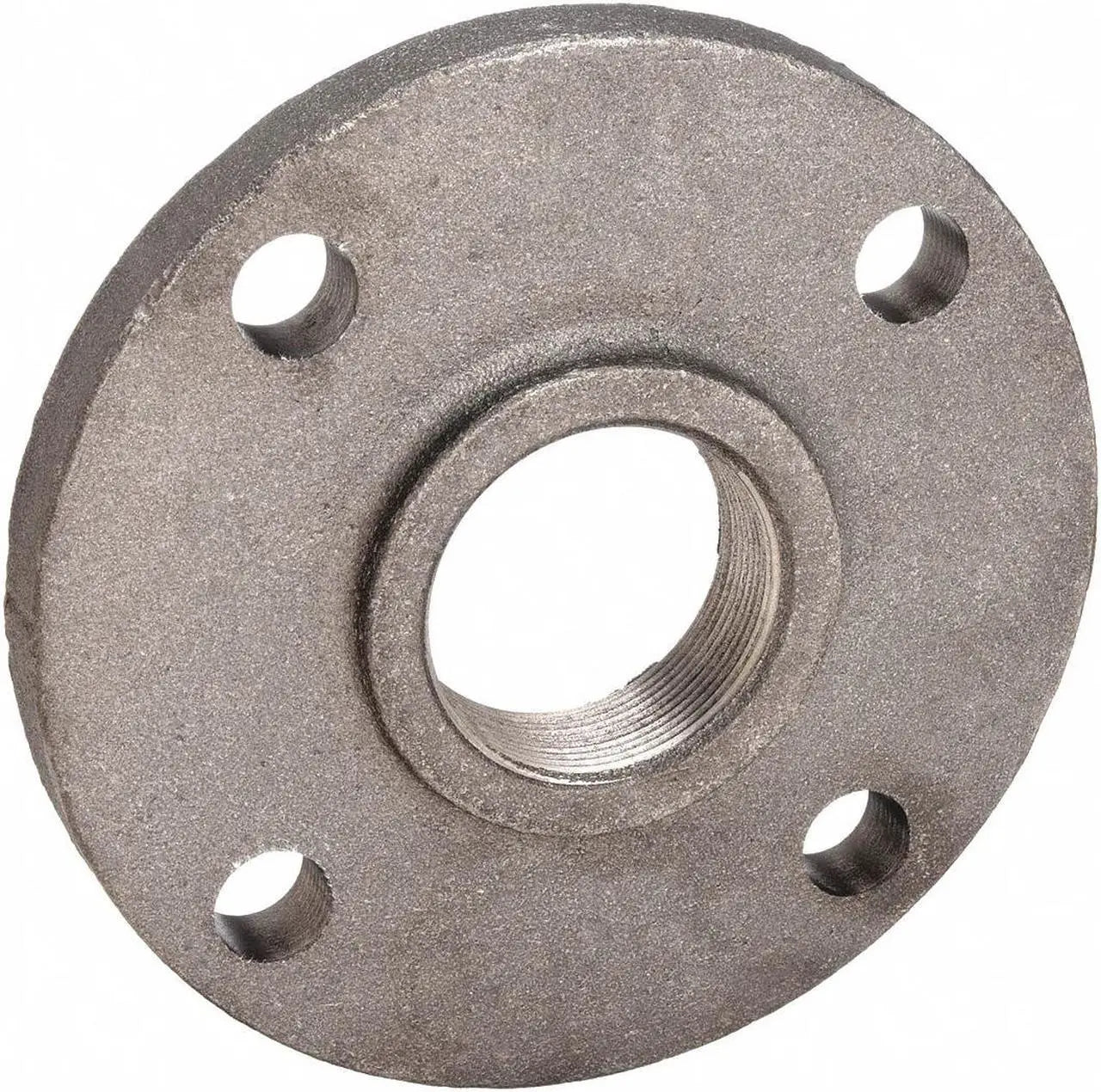

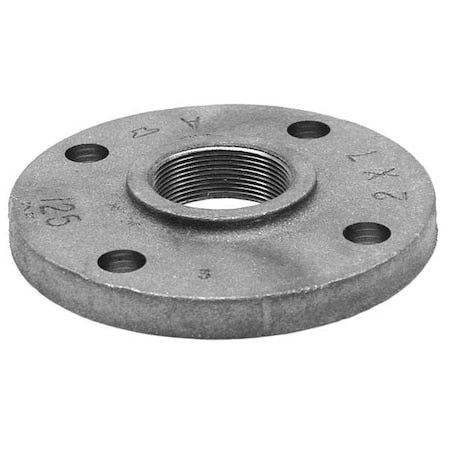

The ANVIL 0308008002 is a Cast Iron Reducing Companion Flange, Class 125, designed for pipe systems requiring a threaded connection. This durable fitting features a 2-inch pipe size and a 7-1/2 inch outside diameter, suitable for various industrial and plumbing applications. It is rated for a maximum pressure of 175 psi and a saturated steam pressure of 125 psi, operating efficiently within a temperature range of -20 to 150 degrees F. Manufactured to ASME B16.4 standards, it ensures reliable performance for fluid transfer and maintenance.

• Features a threaded connection for easy installation and disassembly without welding.
• Constructed from robust Cast Iron, ensuring durability and resistance in demanding environments.
• Complies with UL, FM Approved, and ASME B16.4 standards for quality and safety.

Product Highlights

Cast Iron Reducing Companion Flange, Class 125, with 2-inch nominal pipe size and 7-1/2 inch outside diameter, ideal for threaded pipe connections in fire protection and non-potable water systems.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0308008002
• Country of Origin: United States

Technical Specifications

• Brand: ANVIL
• MPN: 0308008002
• Material: Cast Iron
• Class: Class 125
• Nominal Pipe Size: 2 in
• Connection Type: Flanged x FNPT
• Standards: UL, FM Approved, ASME B16.4
• Maximum Operating Pressure: 175 psi @ -20 Degrees to 150 Degrees F
• Saturated Steam Pressure: 125 psi
• Outside Diameter: 7 1/2 in
• Number of Bolt Holes: 4
• Temperature Range: -20 Degrees to 150 Degrees F
• Application: Fire Protection, Non-Potable Water
• Type: Faced & Drilled Threaded
• Flange Type: Threaded Flange
• Hub Diameter: 3-1/16 in
• Length Through Hub: 1 in
• Schedule Rating: SCH 40/STD
• Series: FIG 1016
• Thickness: 3/4 in
• Finish: Black
• Domestic/Import: Domestic
