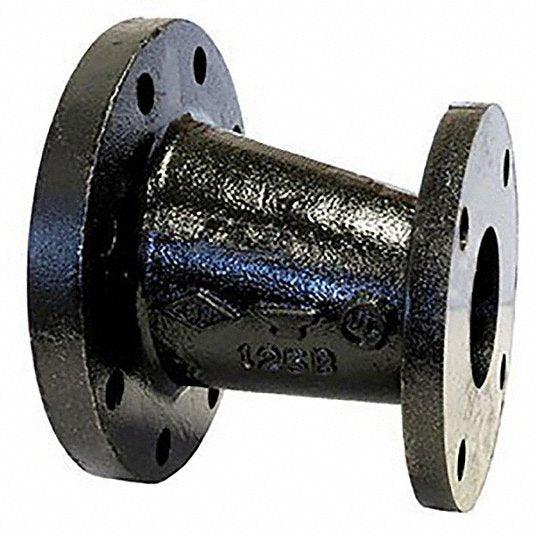

Anvil 0306069808 FIG 826 Eccentric Pipe Reducer, 6x5 inches

Product Description

The ANVIL 0306069808 FIG 826 is an eccentric pipe reducer with flanged ends, designed to connect pipes of different sizes. This reducer has a nominal size of 6x5 inches and a SCH 40/STD schedule. It is made of cast iron and coated in black paint. It is suitable for use with air, natural gas, non-potable water, oil, and steam.

• Constructed from durable cast iron
• Features flanged ends for secure connection
• Suitable for a range of applications including air, natural gas, and steam

Product Highlights

The Anvil FIG 826 eccentric reducer facilitates pipe size transitions while maintaining alignment. It is rated to 125 lb and conforms to ASME specifications.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0306069808
• Country of Origin: Mexico

Technical Specifications

• End Style: Flanged
• Material: Cast Iron
• Nominal Size: 6 x 5 in
• Pressure Rating: 125 Lb
• Schedule Rating: SCH 40/STD
• Finish: Black
• Length: 9 in
• Manufacturer: Anvil International
• Manufacturer Part Number: 0306069808
• Series: FIG 826
• Temperature Rating: -20 to 450 deg F
• Type: Eccentric Reducer
• Specific Fitting Shape: Eccentric Reducer
• Pipe Fitting Material: Cast Iron
• Class: Class 125
• Standards: ASME B1.20.1, ASME B16.1, ASTM A126, ASTM A153
• Basic Fitting Shape: Reducer
• Application: Air; Natural Gas; Non-Potable Water; Oil; Steam
• Fitting Side A Nominal Pipe Size: 6 in
• Fitting Side A Type: Flanged
• Fitting Side B Nominal Pipe Size: 5 in
• Fitting Side B Type: Flanged
• For Pipe Schedule: 40
• Includes Pre-Applied Thread Sealant: No
• Includes Seal: No
• Item: Eccentric Reducer
• Overall Length: 9 in
• Maximum Operating Pressure: 175 psi @ 150° F
• Industry Standards/Certifications: ASME B16.1; ASTM A- 126 (A) or (B); ASTM A-153; ASME B1.20.1; ASME B16.1
• Coatings: Black
• Max. Rated Pressure: 200 psi
