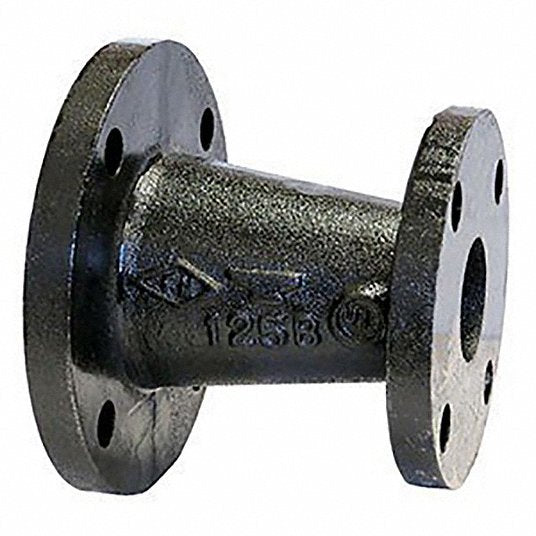

Anvil 0306060401 Concentric Reducer Coupling 6 in x 5 in

Product Description

The ANVIL 0306060401 concentric reducer coupling is made from cast iron with flanged ends to mechanically connect two pipes, incorporating a gasket between joints to create a seal. It is designed for use in air, natural gas, non-potable water, oil, and steam applications. This reducer conforms to ASME and ASTM standards.

• Constructed from durable cast iron.
• Features flanged connections for secure sealing.
• Suitable for air, natural gas, non-potable water, oil, and steam applications.

Product Highlights

The ANVIL concentric reducer provides a reliable flanged connection between different sized pipes in various applications.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0306060401
• Country of Origin: Mexico

Technical Specifications

• Specific Fitting Shape: Concentric Reducer
• Pipe Fitting Material: Cast Iron
• Class: Class 125
• Standards: ASME B1.20.1, ASME B16.1, ASTM A126, ASTM A153
• Basic Fitting Shape: Reducer
• Application: Air; Natural Gas; Non-Potable Water; Oil; Steam
• Finish/Coating: Painted
• Fitting Side A Nominal Pipe Size: 6 in
• Fitting Side A Type: Flanged
• Fitting Side B Nominal Pipe Size: 5 in
• Fitting Side B Type: Flanged
• For Pipe Schedule: 40
• Includes Pre-Applied Thread Sealant: No
• Includes Seal: No
• Item: Concentric Reducer
• Overall Length: 9 in
• Maximum Operating Pressure: 175 psi @ 150° F
• End Style: Flanged
• Nominal Size: 6 x 5 in
• Pressure Rating: 125 Lb
• Schedule Rating: SCH 40/STD
• Finish: Black
• Length: 9 in
• Manufacturer: Anvil International
• Manufacturer #: 0306060401
• Series: FIG 825
• Temperature Rating: -20 to 450 deg F
• Type: Concentric
• Figure Number: 825
• Regulatory: ASME B16.1; ASTM A- 126 (A) or (B); ASTM A-153; ASME B1.20.1; UL Listed; FM Approved
• Fitting Size: 6 in X 5 in
• Connection: Flanged
