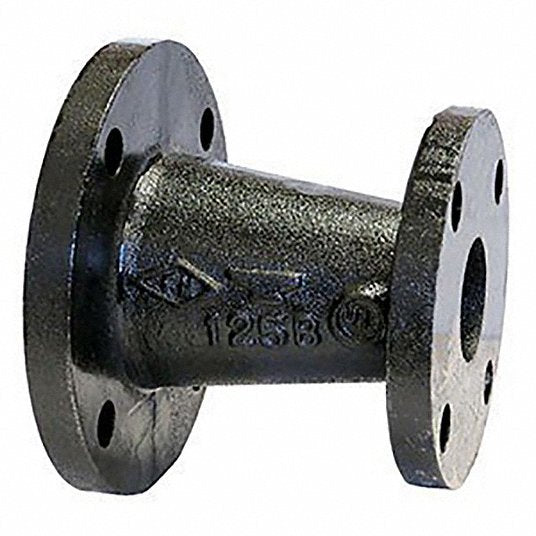

ANVIL Anvil 0306059809 Concentric Reducer Coupling: Cast Iron, 5 in x 4 in Fitting Pipe Size, Class 125, Flanged x Flanged
ANVIL Anvil 0306059809 Concentric Reducer Coupling: Cast Iron, 5 in x 4 in Fitting Pipe Size, Class 125, Flanged x Flanged
ANVIL Anvil 0306059809 Concentric Reducer Coupling: Cast Iron, 5 in x 4 in Fitting Pipe Size, Class 125, Flanged x Flanged
ANVIL Anvil 0306059809 Concentric Reducer Coupling: Cast Iron, 5 in x 4 in Fitting Pipe Size, Class 125, Flanged x Flanged

Anvil 0306059809 Concentric Reducer Coupling: Cast Iron, 5 in x 4 in Fitting Pipe Size, Class 125, Flanged x Flanged

Brand: ANVIL
SKU: 0306059809
Availability: In Stock

Ships same day if ordered by 12 pm
$1,120.75
$1,120.75
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The ANVIL 0306059809 concentric reducer coupling is a cast iron fitting designed to mechanically connect two pipes. This Class 125 fitting features flanged connections on both sides, with a 5-inch nominal pipe size on side A and a 4-inch nominal pipe size on side B. It is suitable for air, natural gas, non-potable water, oil, and steam applications.

  • Constructed from durable cast iron material.
  • Features flanged connections for a secure seal.
  • Complies with ASME B1.20.1, ASME B16.1, ASTM A126, and ASTM A153 standards.

Product Highlights

This concentric reducer coupling is ideal for connecting pipes of different sizes in various industrial applications. Its flanged design ensures a reliable and leak-proof connection.

Product Information

Standard Information

  • Brand: ANVIL
  • Manufacturer Part Number: 0306059809
  • Country of Origin: Mexico
Technical Specifications
Specific Fitting Shape
Concentric Reducer
Coupling
Coupling
Pipe Fitting Material
Cast Iron
Class
Class 125
Standards
ASME B1.20.1, ASME B16.1, ASTM A126, ASTM A153
Basic Fitting Shape
Reducer
Application
Air; Natural Gas; Non-Potable Water; Oil; Steam
Finish/Coating
Painted
Fitting Side A Nominal Pipe Size
5 in
Fitting Side A Type
Flanged
Fitting Side B Nominal Pipe Size
4 in
Fitting Side B Type
Flanged
For Pipe Schedule
40
Includes Pre-Applied Thread Sealant
No
Includes Seal
No
Item
Concentric Reducer
Overall Length
8 in
Maximum Operating Pressure
175 psi @ 150° F
Brand Name
Anvil International
Mfg Part#
0306059809
Figure Number
825
Regulatory
ASME B16.1; ASTM A- 126 (A) or (B); ASTM A-153; ASME B1.20.1; UL Listed; FM Approved
Product Type
Concentric Reducer
Fitting Size
5 in X 4 in
Import Or Domestic
Domestic
Type
Concentric
Coating
Black
Connection
Flanged
