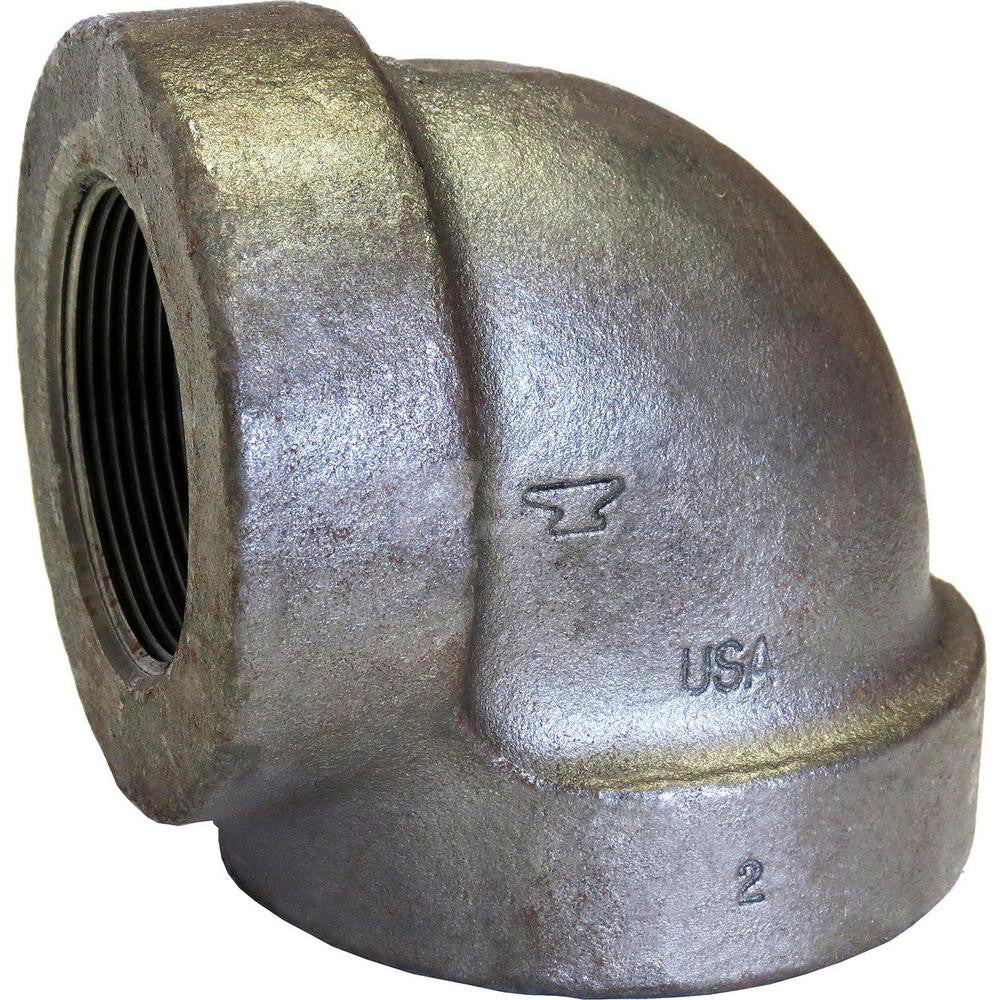

Anvil 0300501400 1-1/2 inches CI 250# 90 ell

Product Description

The ANVIL 0300501400 is a 1-1/2" CI 250# 90 ELL. Constructed from cast iron with a black oxide finish, this fitting is suitable for gas, liquid, and steam applications. It adheres to ASTM A126 Class A material specifications and provides a 90-degree angle for connection. It has a pressure rating of 250 PSI SWP, 400 PSI liquid at 150 deg F, and 400 PSI gas at 150 deg F.

• Cast iron material
• Black oxide finish
• 1-1/2 inch size

Product Highlights

Cast iron 90-degree elbow suitable for gas, liquid, and steam applications with a 250 PSI SWP pressure rating.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0300501400
• Country of Origin: UNITED STATES

Technical Specifications

• Fitting Type: 90 deg Elbow
• Fitting Size: 1-1/2"
• End Connections: Thread x Thread
• Material: Cast Iron
• Class: 250
• Connection Type: Threaded
• Liquid and Gas Pressure Rating (psi): 250
• Brand Name: Anvil International
• Mfg Part#: 0300501400
• UPC: 690291016844
• Angle: 90 DEG
• Pressure Rating: 400 psi
• Elbow Degree: 90
• Fitting Material: Cast Iron
• Import Or Domestic: Domestic
• Type: Extra Heavy
• End Style: Thread
• Finish: Black
• Fitting/Connector Type: 90 deg Elbow
• Method of Manufacture: Cast
• Nominal Size: 1-1/2 in
• Pressure Class: 250 lb
• Schedule Rating: SCH 80/XH
• Series: FIG 421
• Temperature Rating: -20 to 150 deg F
