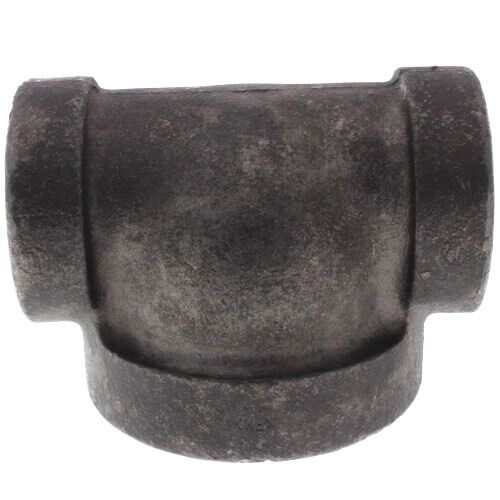

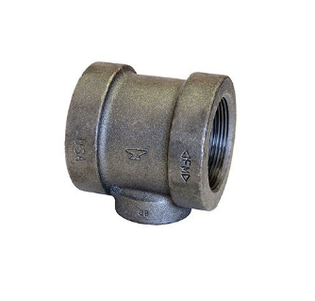

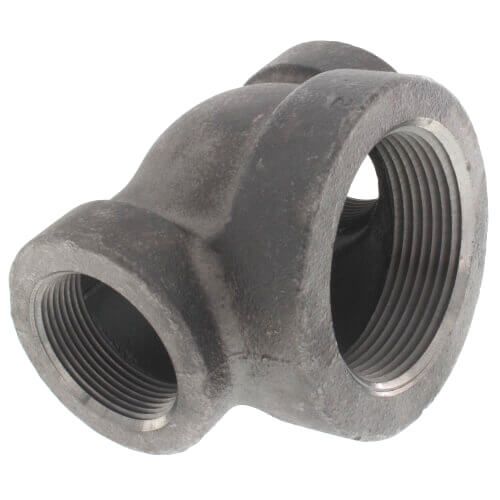

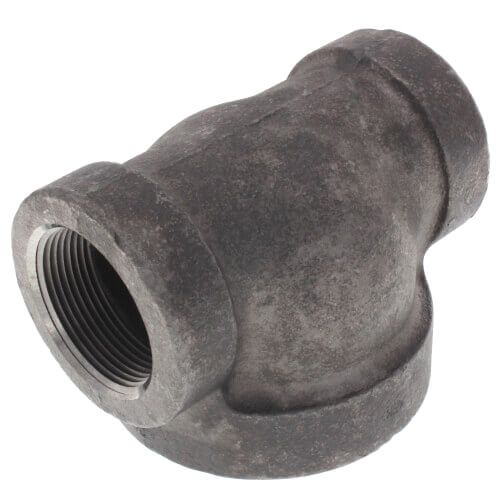

Anvil 0300051208 fig 359 pipe reducing tee 1-1/2x1-1/2x2 in

Product Description

The ANVIL 0300051208 FIG 359 Pipe Reducing Tee is a cast iron fitting with FNPT connections. Suitable for plumbing, mechanical, HVAC, industrial, fire protection, mining, oil, and gas applications. It conforms to ASME-B16.4 standards and Federal Specifications WW-P-501.

• Constructed from cast iron
• Features female NPT threaded connections on all ends
• Suitable for applications ranging from -20 to 350 deg F

Product Highlights

This reducing tee is ideal for creating transitions between different pipe sizes in various plumbing and industrial systems.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0300051208
• Country of Origin: United States

Technical Specifications

• Category: Tee
• Brand: Anvil
• Item: Reducing Tee
• Class: Class 125
• Gender: Female
• Pipe Size: 1 1/2 in, 2 in
• Standards: UL: FM Approved: ASME B16.4
• Threading: NPT
• Application: Plumbing, Mechanical, HVAC, Industrial, Fire Protection, Mining, Oil, Gas Application
• Temp. Range: -20 Degrees to 350 Degrees F
• Fitting Shape: Tee
• Includes Seal: No
• Max. Pressure: 175 psi@-20 Degrees to 150 Degrees F
• Class/Pressure: Class 125 175 psi @ 150 Degrees F
• Connection Type: Threaded
• Fitting Pipe Size: 1 1/2 in x 1 1/2 in x 2 in
• For Pipe Schedule: 40
• Fitting Side A Type: NPT
• Fitting Side B Type: NPT
• Fitting Side C Type: NPT
• Pipe Fitting Gender: Female Female Female
• Pipe Size (Fittings): 1-1/2" x 1-1/2" x 2"
• Fitting Side A Gender: Female
• Fitting Side B Gender: Female
• Fitting Side C Gender: Female
• Pipe Fitting Material: Cast Iron
• Fitting Schedule/Class: Class 125
• Specific Fitting Shape: Reducing Tee
• Fitting Connection Type: FNPT
• Basic Pipe Fitting Shape: Tee
• Pipe Size - Pipe Fitting: 1-1/2" x 1-1/2" x 2"
• Saturated Steam Pressure: 125 psi
• Maximum Operating Pressure: 175 psi @ 150 Degrees F
• Basic Pipe Fitting Material: Metal
• Pipe Fitting Schedule/Class: Class 125
• Specific Pipe Fitting Shape: Reducing Tee
• Pipe Fitting Connection Type: FNPT
• Fitting Side A Nominal Pipe Size: 1 1/2 in
• Fitting Side B Nominal Pipe Size: 1 1/2 in
• Fitting Side C Nominal Pipe Size: 2 in
• Includes Pre-Applied Thread Sealant: No
• Country of Origin (subject to change): United States
• Size: 1-1/2" x 1-1/2" x 2"
• Product Type: Reducing Tee
• Material: Cast Iron
• Domestic / Import: Domestic
• End Style: FNPT
• Finish: Black
• Fitting / Connector Type: Tee
• Nominal Size: 1-1/2 INCH X 1-1/2 INCH X 2 INCH
• Pressure Class: 125 Lb
• Manufacturer: Anvil International
• Manufacturer #: 0300051208
• Pressure Rating: CLASS 125, 175 PSI
• Schedule Rating: SCH 40/STD
• Series: FIG 359
• Temperature Rating: 350 DEG F
• Material Specification: ASTM A126
• End Connection: FEMALE THREADED X FEMALE THREADED X FEMALE THREADED
• Standards and Specification: WW-P-501
• Model: 359
• Vendor UPC (12): 690291013584
• VENDOR Product No: 0300051208
