Anvil 0300041209 Cast Iron Reducing Tee Class 125 (1 1/4 in x 3/4 in x 1 in)

Product Description

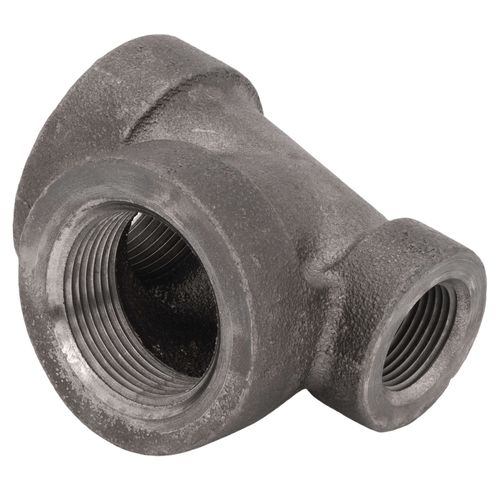

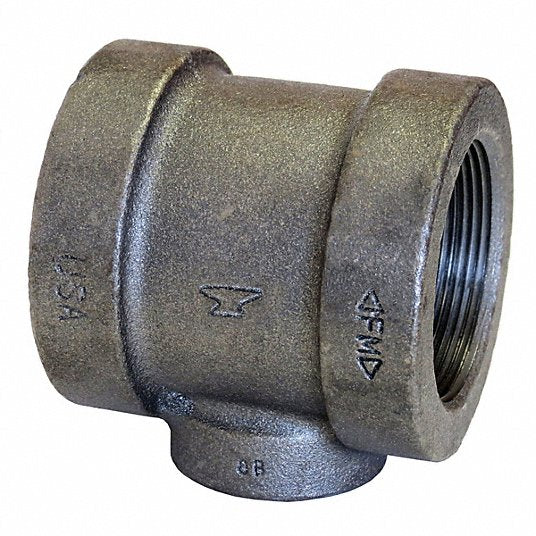

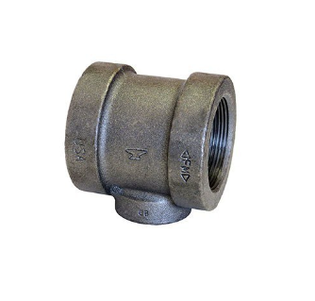

The ANVIL 0300041209 is a cast iron reducing tee, designed for pipe schedule 40 and Class 125 applications. It features female NPT threading in sizes 1 1/4 in, 3/4 in, and 1 in. Suitable for air, natural gas, non-potable water, oil, and steam, with a maximum operating pressure of 175 psi at 150 Degrees F.

• Constructed from durable cast iron material.
• Features female NPT threaded connections.
• Suitable for various applications including air, natural gas, and steam.

Product Highlights

This cast iron reducing tee is ideal for connecting pipes of different sizes in plumbing, HVAC, and industrial applications.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0300041209
• Country of Origin: United States

Technical Specifications

• Item: Reducing Tee
• Class: Class 125
• Gender: Female
• Pipe Size: 1 1/4 in, 1 in, 3/4 in
• Standards: UL: FM Approved: ASME B16.4
• Threading: NPT
• Application: Air, Natural Gas, Non-Potable Water, Oil, Steam
• Temperature Range: -20 Degrees to 150 Degrees F
• Fitting Shape: Tee
• Includes Seal: No
• Max. Pressure: 175 psi@-20 Degrees to 150 Degrees F
• Connection Type: Threaded
• Fitting Pipe Size: 1 1/4 in x 3/4 in x 1 in
• For Pipe Schedule: 40
• Fitting Side A Type: NPT
• Fitting Side B Type: NPT
• Fitting Side C Type: NPT
• Pipe Fitting Gender: Female Female Female
• Pipe Size (Fittings): 1-1/4" x 3/4" x 1"
• Fitting Side A Gender: Female
• Fitting Side B Gender: Female
• Fitting Side C Gender: Female
• Pipe Fitting Material: Cast Iron
• Fitting Schedule/Class: Class 125
• Specific Fitting Shape: Reducing Tee
• Fitting Connection Type: FNPT
• Basic Pipe Fitting Shape: Tee
• Pipe Size - Pipe Fitting: 1-1/4" x 3/4" x 1"
• Saturated Steam Pressure: 125 psi
• Maximum Operating Pressure: 175 psi @ 150 Degrees F
• Basic Pipe Fitting Material: Metal
• Pipe Fitting Schedule/Class: Class 125
• Specific Pipe Fitting Shape: Reducing
• Pipe Fitting Connection Type: FNPT
• Fitting Side A Nominal Pipe Size: 1 1/4 in
• Fitting Side B Nominal Pipe Size: 3/4 in
• Fitting Side C Nominal Pipe Size: 1 in
• Includes Pre-Applied Thread Sealant: No
• Country of Origin (subject to change): United States
• Product Type: Reducing Tee
• Figure Number: 359
• Regulatory: ASME B16.4; ASTM A-126 (A); ASTM A-153; ASME B1.20.1
• Source: Domestic
• Size: 1 1/4
• Series: 533
