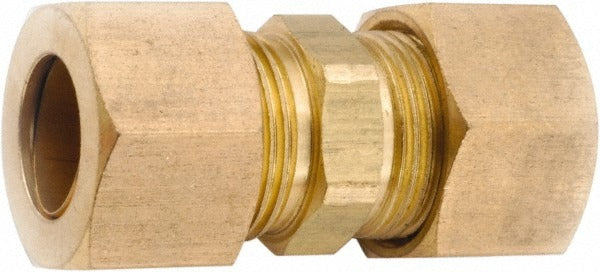

Anderson Metals 750062-05 Compression Tube Union 1/2-24

Product Description

The ANDERSON METALS 750062-05 is a straight compression tube union designed to join two compression-end tube lines in a single inline fitting. Constructed from lead free brass, this union provides a secure, leak-resistant connection rated for up to 3000 psi maximum working pressure. The fitting uses a 1/2-24 straight thread size and accepts compression connections on both ends, making it a reliable choice for plumbing, hydraulic, and fluid-transfer applications where a clean, repeatable union joint is required. Licensed plumbers and fluid-system technicians are the typical installers of this fitting.

This compression tube union is suited for residential and light commercial plumbing systems as well as instrumentation and fluid-transfer lines that demand a high-pressure-rated inline connection. Its compression by compression end configuration allows it to connect two tube runs without soldering, threading pipe ends, or specialized tooling beyond standard compression fitting tools. The lead free brass construction meets requirements for potable water and other regulated fluid applications where material compliance is mandatory.

Key Features

• Lead free brass construction — compliant for potable water and regulated fluid service
• 3000 psi maximum working pressure rating for high-demand applications
• Compression by compression end connections — no soldering or pipe threading required
• 1/2-24 straight thread size for consistent, repeatable fitment
• Compact form factor suitable for tight inline installations

Compatibility

Designed as an OEM-style replacement and standard fitting for compression tube union applications in plumbing, hydraulic, and fluid-transfer systems that accept 1/2-24 compression connections.

Installation Notes

Installation is typically performed by a licensed plumber or qualified fluid-system technician. Shut off and depressurize the supply line fully before removing or installing any compression fitting. Use appropriate tube cutters and deburring tools to ensure clean, square tube ends before seating ferrules. Follow IPC and local plumbing code requirements for fitting material and pressure ratings in the system being serviced.
