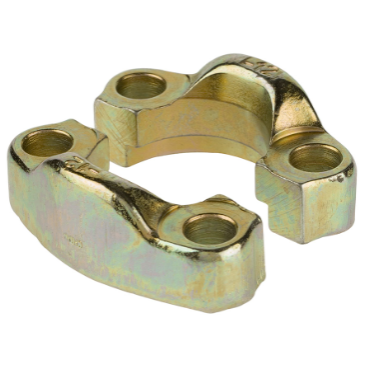

Anchor Fluid Power 40SFO SAE J518 / ISO 6162 Split Flange Kit

Product Description

The Anchor Fluid Power 40SFO is a kit designed for SAE J518 and ISO 6162 split flange connections. This kit is suitable for tube, hose end, and split flange adapter connections. It includes components essential for reliable assembly and maintenance of hydraulic systems.

• Kits include two flange halves, bolt kit, and a Buna o-ring.
• Available in forged 316L stainless and carbon steel construction.
• Features a silver Trivalent finish for high corrosion resistance.

Product Highlights

The kit ensures a complete solution with durable materials, ideal for industrial applications demanding reliable performance.

Product Information

Standard Information

• Brand: Anchor Fluid Power
• MPN: 40SFO

Technical Specifications

• Component: Kit w/ 2 Split Flanges & Hardware
• Tube Diameter: 2.95 in
• Thickness: 0.75 in
• Length: 4.5 in
• O-Ring Size: 232
• Flange Diameter: 3.34 in
• Bolt Centers: 3.5 in
• Pressure Code Rating: Code 61
• Material: Carbon Steel
• Overall Thickness: 1.5 in
• Bolt Hole Size: 0.531 in
• Weight: 2.55 LB
