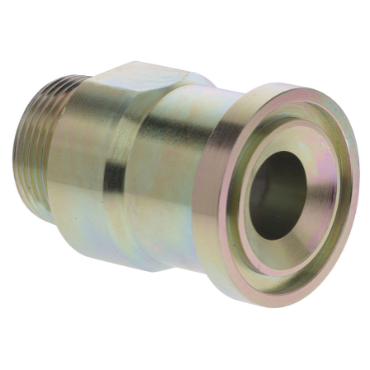

Anchor Fluid Power 304-16-16 Split Flange Adapter

Product Description

The Anchor Fluid Power 304-16-16 is a split flange adapter designed for versatile connections in hydraulic systems. It adapts a four-bolt flange connection to multiple male thread options. This product is ideal for professionals seeking reliable and effective hose and tube connections.

• One-piece carbon steel construction minimizes leak points
• Silver Trivalent finish ensures corrosion resistance
• Compatible with Anchor's SAE split flanges

Product Highlights

Use this adapter for efficient connectivity in hydraulic applications, ensuring a secure fit for your hydraulic lines.

Product Information

Standard Information

• Brand: Anchor Fluid Power
• Part Number: 102073721

Technical Specifications

• Threads per Inch: 12
• Fitting Angle: Straight
• Tube O.D.: 1 inch
• Pressure Code Rating: Code 61
• Flange Diameter: 2.11 inches
• Thread Size: 1 7/16 inches
• Length: 1 3/4 inches
• Flange Head Size: 1 inch
• Overall Length: 2.8 inches
• Thread Type: O-Ring Face Seal
• Weight: 1.07 pounds
