AMTROL 109E Fill-Trol with Valve

Product Description

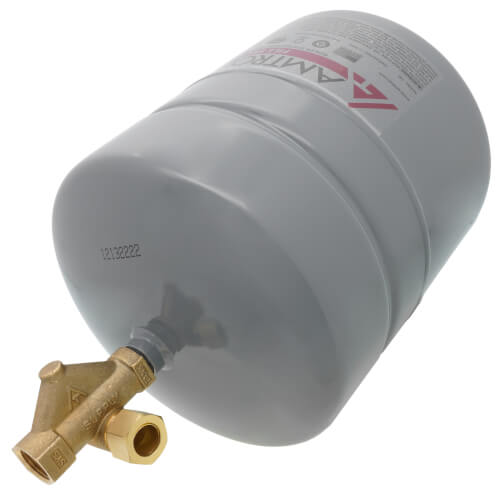

The AMTROL FILL-TROL system, model 109E, combines a diaphragm-type expansion tank with an automatic fill valve. This setup allows for automatic system make-up, streamlining processes by removing the need for a separate fill valve.

• Adjustable pressure up to 100 psig
• Factory pre-charged to 12 psig
• 2-gallon tank volume

Product Highlights

Product Information

Standard Information

• Manufacturer Part Number: 109E
• Application: Heating

Technical Specifications

• Tank Volume: 2 gallons
• Connection Size: 1/2 inches
• Connection Type: NPFT
• Max Pressure: 100 psi
• Max Accepted Volume: 1 gallon
• Precharged PSI: 12 psi
• Height: 15 inches
• Diameter: 8 inches
• Weight: 6 lbs
• Warranty: 5 years
• Thread Size: 1/2 inches
