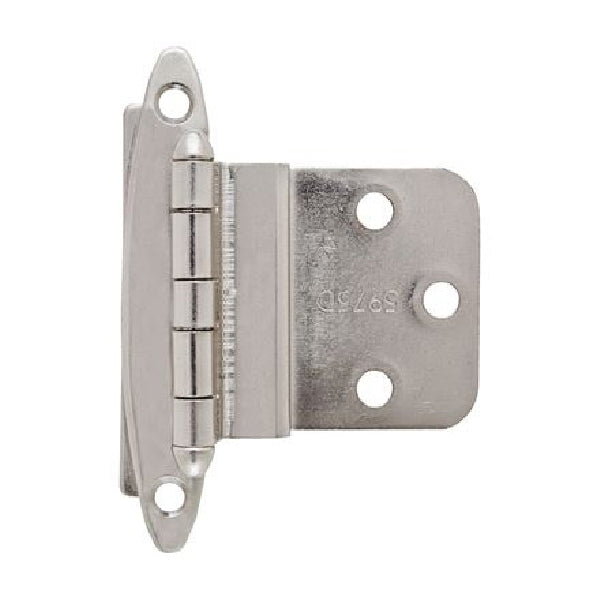

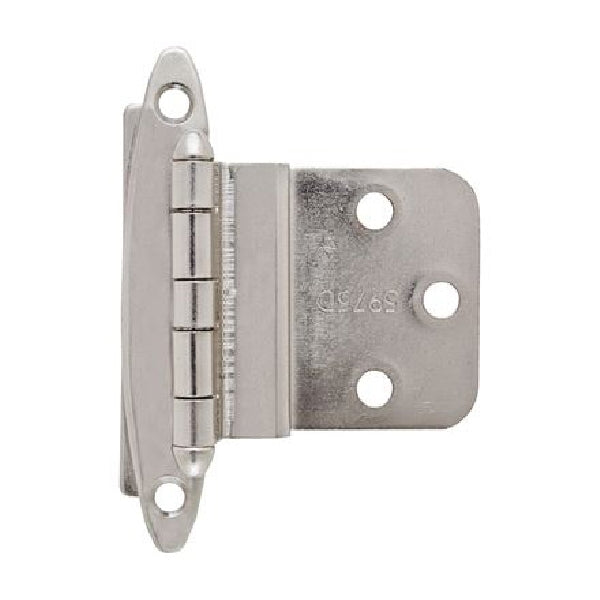

Amerock bpr3417g10 Cabinet Hinge Satin Nickel Face Mount

Product Description

The AMEROCK bpr3417g10 is a face-mount cabinet hinge designed for framed cabinet construction. Built from steel with a satin nickel finish, it measures 2-3/4 inches in length by 2 inches in width and features a 3/8-inch inset and 1/2-inch projection. The five-hole mounting pattern provides solid fastening to the cabinet face frame. This is a non self-closing hinge, meaning door movement and positioning are managed by the installer or a separate mechanism. Cabinetmakers, millwork contractors, and general carpenters typically install this hardware during cabinet assembly or renovation projects.

This hinge is suited for residential and light commercial cabinetry using traditional face-frame construction. The transitional style makes it a practical choice for kitchen cabinets, bathroom vanities, and built-in storage where a clean, understated satin nickel finish is specified. The face-mounting design is compatible with standard framed cabinet doors requiring a 3/8-inch inset, and the five-hole layout supports secure attachment to the face frame and door.

Key Features

• Face-mount design for framed cabinet construction with 3/8-inch inset
• Non self-closing operation for manual door positioning
• Steel construction with satin nickel finish for durability and corrosion resistance
• Five-hole mounting pattern for secure attachment to face frame and door
• 1/2-inch projection accommodates standard face-frame door clearance
• Transitional style suits a wide range of residential and light commercial cabinet applications

Compatibility

Designed as an OEM-style replacement or new-install face-mount hinge for framed cabinet doors requiring a 3/8-inch inset configuration.

Installation Notes

Installation is typically performed by a finish carpenter or cabinetmaker using a drill, screwdriver, and appropriate wood screws sized for the cabinet material. Confirm door inset dimension and frame thickness before mounting to ensure proper clearance. Remove the door from the cabinet opening before installing hinges when retrofitting existing cabinetry. Follow manufacturer pilot-hole recommendations to prevent splitting in face-frame material.

Technical Specifications

• Length: 2-3/4 inches
• Width: 2 inches
• Inset Size: 3/8 inches
• Projection Size: 1/2 inch
• Number of Holes: 5
• Material: Steel
• Finish: Satin Nickel
• Hinge Type: Non Self-Closing
• Mounting Type: Face
• Cabinet Frame Type: Frame
• Style: Transitional

Standard Information

• Brand: AMEROCK
• Manufacturer Part Number: bpr3417g10
