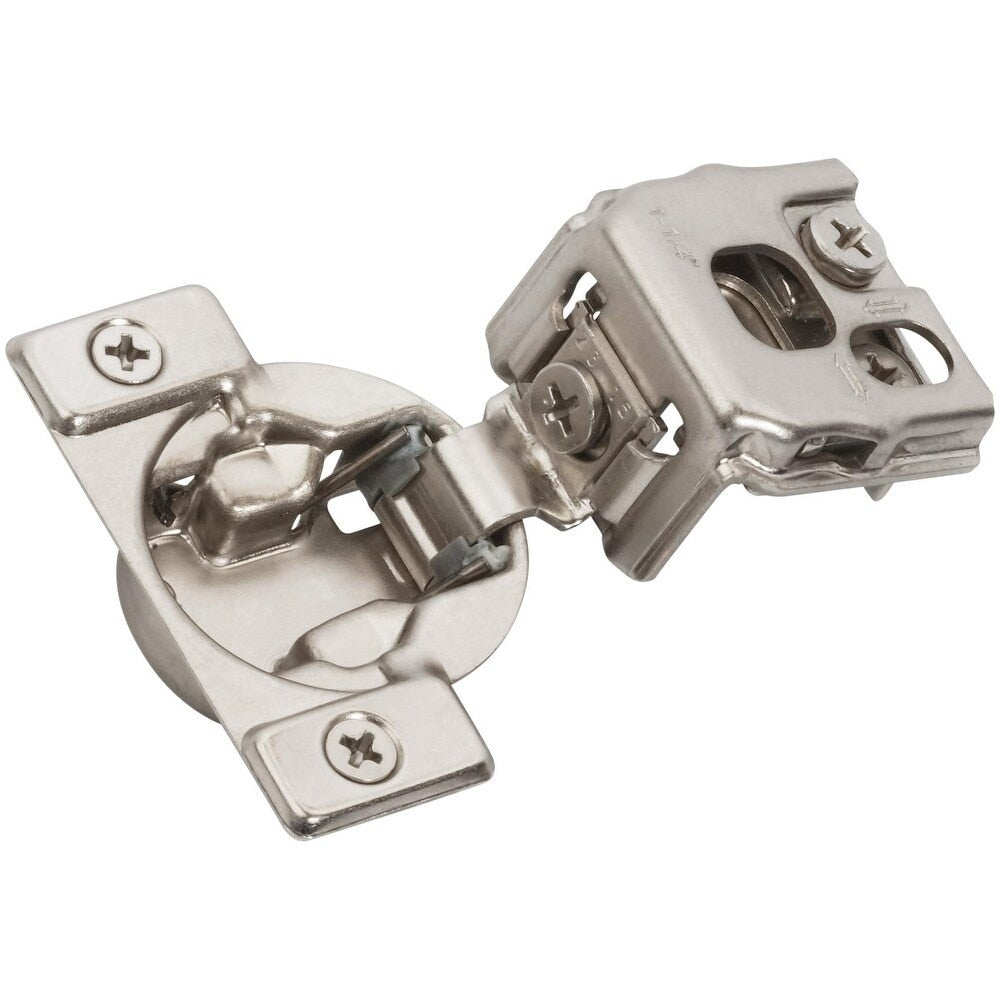

Amerock BP9236SLFF Concealed Cabinet Hinge 1-1/4 Inch Pair

Product Description

The AMEROCK BP9236SLFF is a self-closing concealed hinge designed for overlay cabinet door installations in residential and light commercial cabinetry. Constructed of high-quality steel, this hinge delivers a 105-degree opening angle and features a soft-close mechanism that brings cabinet doors to a quiet, controlled close without slamming. The 3-way adjustability allows lateral, vertical, and depth corrections after installation, making alignment straightforward for finish carpenters, cabinet installers, and experienced DIYers. Each order includes two hinges sold as a pair. The unit weighs 0.27 pounds and is finished in grey nickel to complement a range of cabinet hardware styles.

This hinge is suited for face-frame and frameless cabinet applications requiring a concealed European-style hinge with soft-close function. The 1-1/4 inch cup size fits standard 35mm hinge boring found on most manufactured and custom cabinet doors. Typical installation scenarios include kitchen cabinets, bathroom vanities, and laundry or utility cabinetry where quiet operation and clean aesthetics are required. The grey nickel finish coordinates with brushed nickel and similar hardware finishes commonly specified in residential renovation and new construction projects.

Key Features

• Soft-close mechanism provides quiet, controlled door closing without slamming
• 3-way adjustable for lateral, vertical, and depth fine-tuning after mounting
• 105-degree opening angle suits standard overlay cabinet door configurations
• High-quality steel construction for long-term durability in daily-use cabinetry
• Concealed design keeps hardware hidden when the cabinet door is closed
• Sold as a pair — two hinges included per order

Compatibility

Designed as an OEM-style replacement or upgrade hinge for standard 35mm cup-bore overlay cabinet doors in residential and light commercial cabinetry applications.

Installation Notes

Installation is typically performed by a cabinet installer, carpenter, or experienced DIYer using a drill, 35mm Forstner bit, and a screwdriver or impact driver set to low torque. Ensure cabinet doors are fully unloaded and the mounting surface is clean and structurally sound before drilling cup holes. The 3-way adjustment screws should be set after the door is hung to achieve proper alignment and gap consistency across all doors. Follow the hinge manufacturer mounting instructions and local building codes where applicable.

Technical Specifications

• Opening Angle: 105 degrees
• Size: 1-1/4 inches
• Adjustment: 3-way adjustable
• Close Type: Soft close
• Hinge Style: Concealed
• Material: Steel
• Finish: Grey Nickel
• Weight: 0.27 pounds
• Quantity: 2 hinges per pair
• UPC: 00026634333260

Standard Information

• Brand: AMEROCK
• Manufacturer Part Number: BP9236SLFF
