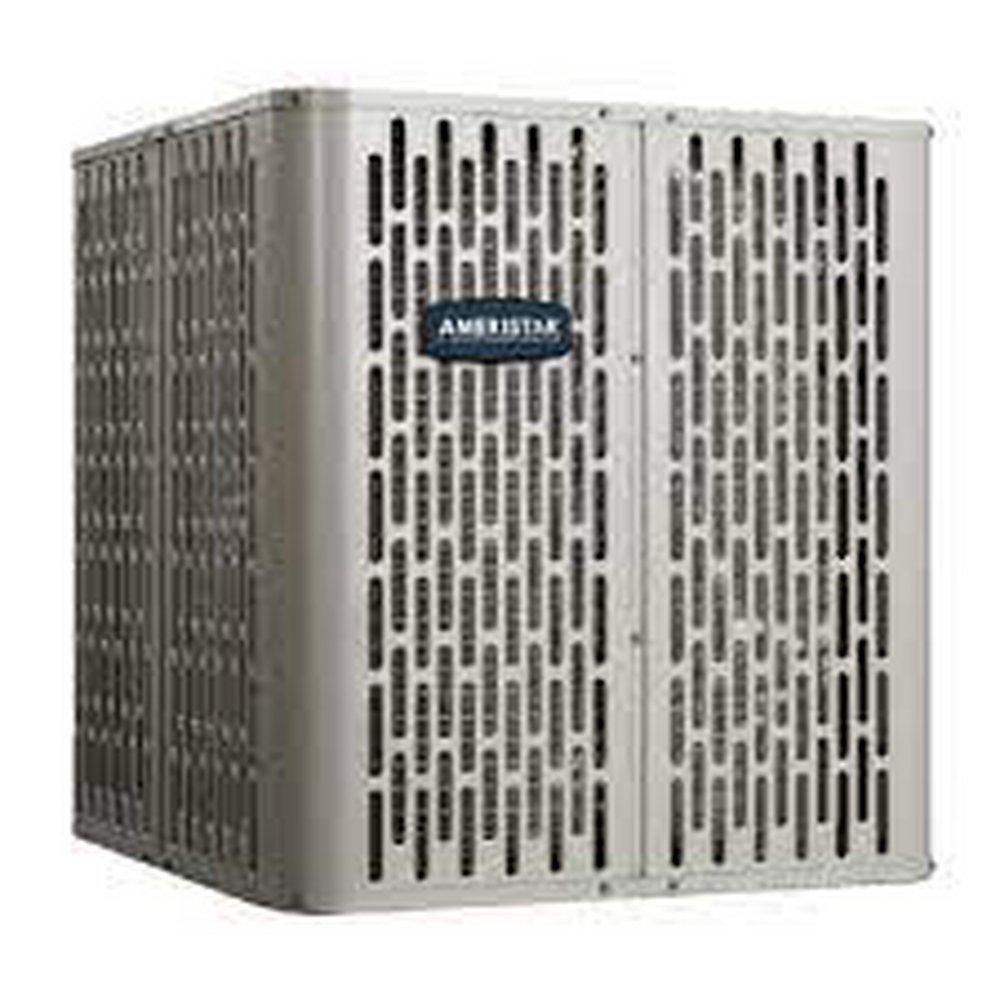

Ameristar A5HP5060A1000A Heat Pump 5 Ton replacement

Product Description

The AMERISTAR A5HP5060A1000A single-stage heat pump provides energy-efficient heating and cooling. Operating at 70 - 75 dB, it features a scroll compressor and uses R-454B refrigerant. This 208/230 volt, 33 amp unit has a 60000 BTU/hr capacity and a 15 SEER rating. Designed for comfort and quiet operation all year long.

• Single stage heat pump
• Energy efficient heating and cooling
• Comfort and quiet operation

Product Highlights

Provides energy efficient heating and cooling. Operates quietly at 70-75 dB.

Product Information

Standard Information

• Brand: AMERISTAR
• Manufacturer Part Number: A5HP5060A1000A

Technical Specifications

• Brand: Ameristar
• Manufacturers: American Standard
• Model: A5HP5
• Voltage: 208/230 volt
• Amperage: 33 amp
• Horsepower: 1/3 hp
• Frequency: 60 Hz
• Phase: Single Phase
• Rotational Speed: 850 Rpm
• BTU/hr: 60000 BTU/hr
• CFM: 4992 cfm
• SEER: 15.0
• Compressor: Scroll Compressor
• Refrigerant: R-454B Refrigerant
• Liquid Line: 5/16 Inch
• Suction Line: 7/8 Inch
• Fuse Rating: 50 amp
• Face Area: 30.8 sq-ft
• Coil: 2 - 24 FPI
• Drive: Direct Drive
• Tonnage: 5 ton
• Sound Level: 72 dBA
• Stages: 1 Stages
• Finish: Powder Paint
• A2L Compatible: Yes
• Compressor Stages: Single Stage
• Compressor Type: Scroll
• EER2: 10
• EER2 Range: 0 - 10.5
• Energy Star Compliant: Yes
• Factory Std. Refrigerant Charge: 6
• HSPF2: 7.5
• HSPF2 Range: 7.5 - 25.0
• Max Fuse Size: 50
• Rated Load Amps (RLA): 22.3
• Refrigeration Control Type: TXV
• SEER2: 14.3
• SEER2 Range: 14.3 - 15.1
• Type: IA5HP5060A1000A
• Volts: 208/230V
• Refrigerant Type: R-454B
• Used On Model/Brand: Ameristar
• Number_of_Nominal Cooling Capacity (Tons): 5.0 Ton
