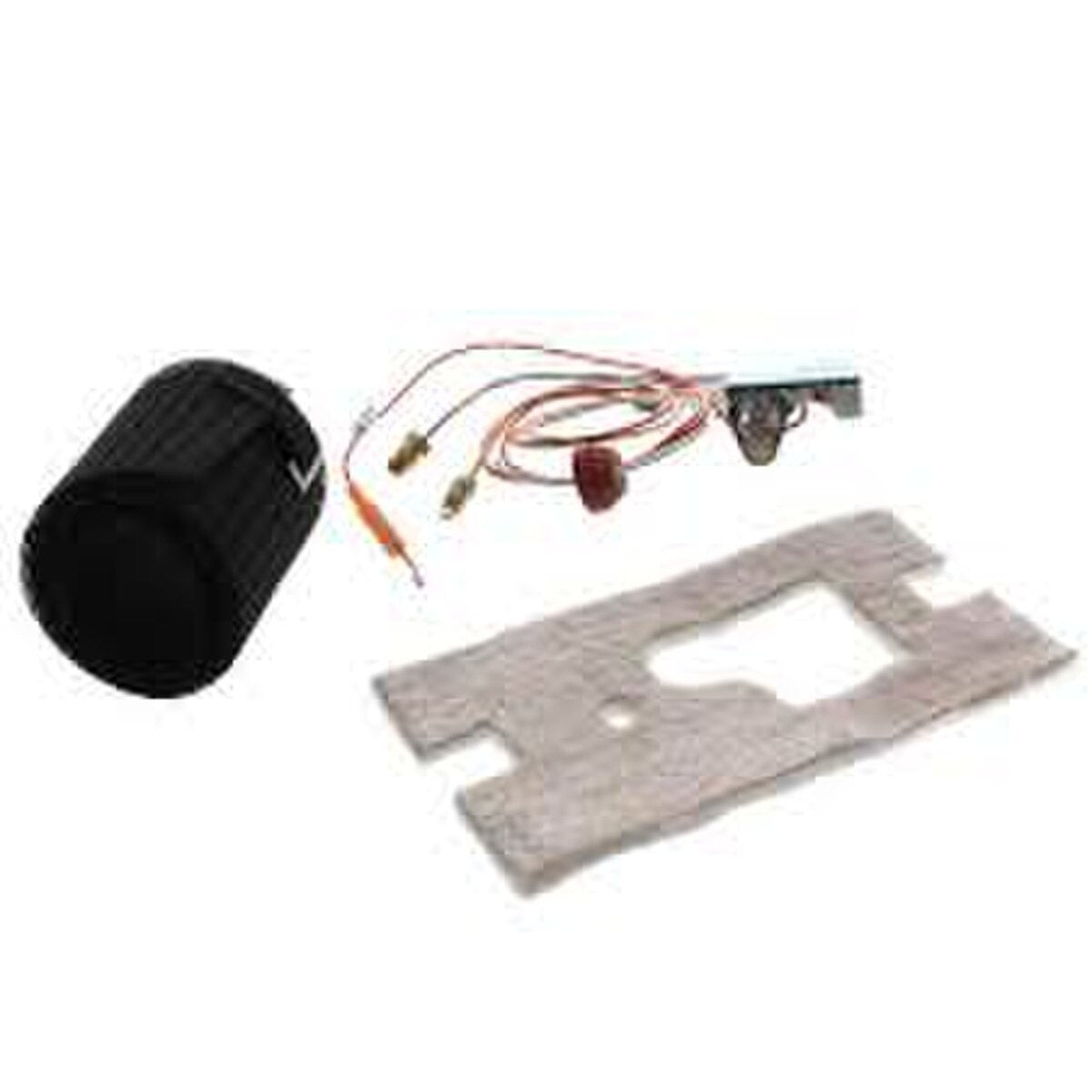

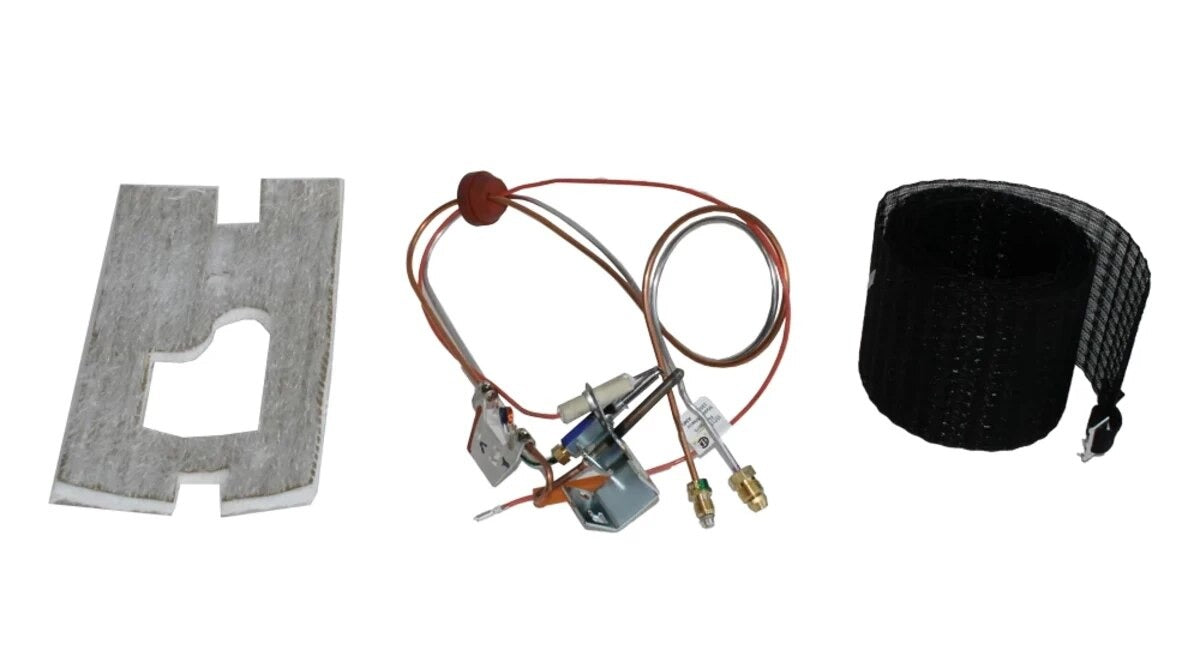

American Water Heaters 100109286 Pilot Assembly (1 Pack) Replacement 320774
Availability:
In Stock
Ships same day if ordered by 12 pm
- $136.58
- $136.58
- Unit price
- / per
✓
Better Price in Cart
Manufacturer pricing rules prevent us from advertising our discount — no account or email required to see it.
-
Secure Payments
-
Easy Returns
-
Expert Advice
-
Fast Shipping
Product Description
The American Water Heaters 100109286 pilot assembly is a natural gas pilot component manufactured by A. O. Smith Corporation for water heaters. It delivers and supports the pilot flame used for ignition and flame carryover and is offered as a single OEM replacement component compatible with part number 320774. The assembly is rated to 200 deg C and is intended for restoring pilot ignition operation in matching water heater applications.
- Natural gas pilot assembly with 200 deg C temperature rating
- Delivers and supports pilot flame for ignition and flame carryover
- OEM replacement component compatible with part number 320774; sold as a single unit
Product Highlights
Natural gas pilot assembly, 200 deg C rating, OEM replacement (MPN 100109286) compatible with 320774
Product Information
Standard Information
- Brand: AMERICAN WATER HEATERS
- Manufacturer Part Number: 100109286
Technical Specifications
Vendor: AMERICAN WATER HEATERS
American Water Heaters 100109286 Pilot Assembly (1 Pack) Replacement 320774
$136.58
Vendor: AMERICAN WATER HEATERS
American Water Heaters 100109286 Pilot Assembly (1 Pack) Replacement 320774
$136.58
