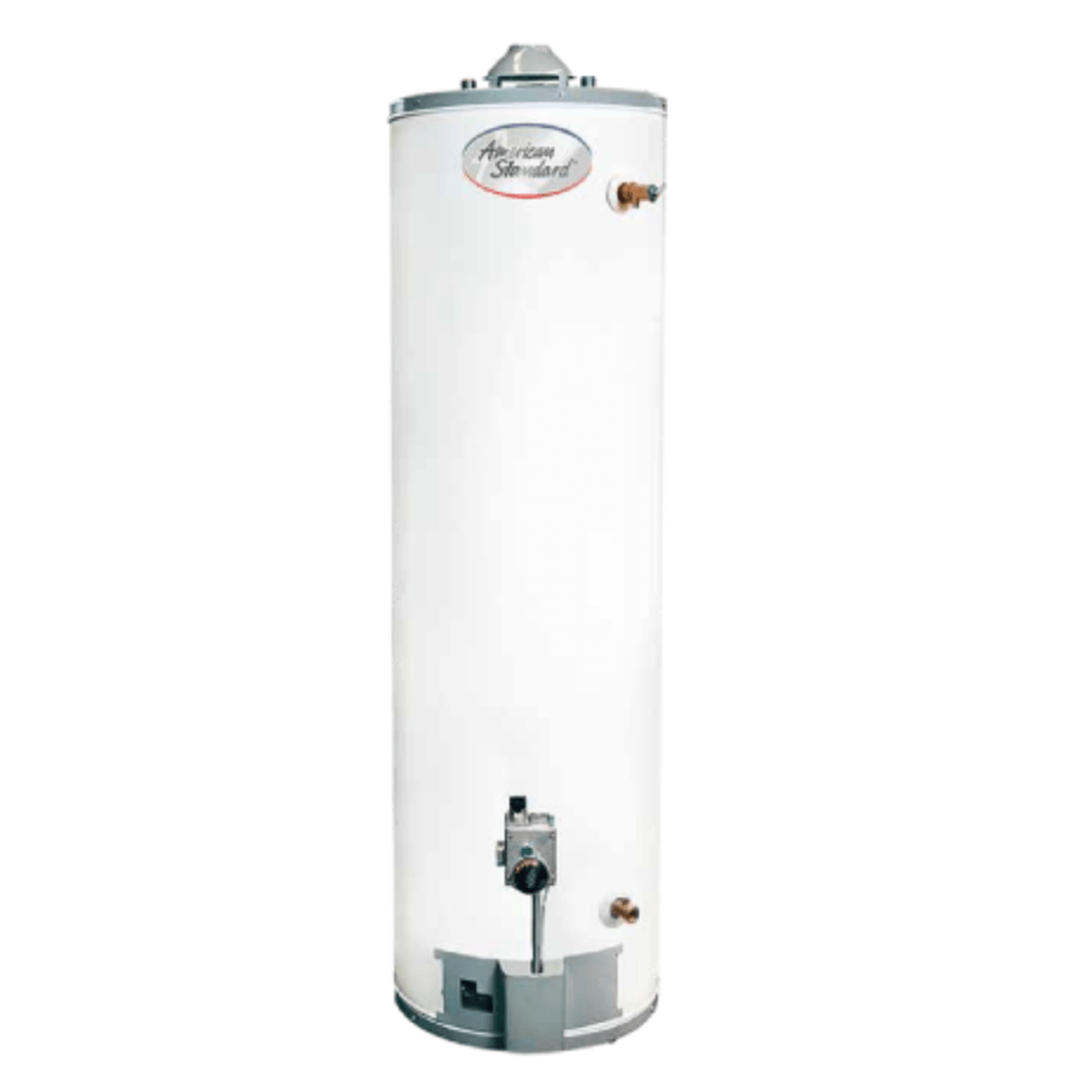

American Standard Water Heater GR50L136

Product Description

The American Standard Water Heater GR50L136 is a 50-gallon natural gas water heater designed for residential use. This unit features Vaporshield technology which ensures safety by cutting off the gas and air supply to prevent vapor burn in the combustion chamber. The push-button piezo igniter allows for easy pilot lighting without matches. The tank is glass-lined with Dura-Glas for corrosion protection.

• Complies with SCAQMD 2008 and BAAQMD 2009 emissions standards.
• Equipped with Vaporshield technology for enhanced safety.
• Features a glass-lined tank for added durability.

Product Highlights

This water heater is ideal for homes needing reliable hot water supply with efficient design.

Product Information

Standard Information

• Brand: American Standard Water Heater
• MPN: GR50L136

Technical Specifications

• Capacity: 50 gallons
• First Hour Rating: 73 gallons
• Input Power: 40000 BTU/hr
• Energy Factor: 0.59
• Test Pressure: 300 psi
• Working Pressure: 150 psi
• Vent Diameter: 3 inches
• Jacket Diameter: 22-1/4 inches
• Height to Top of Heater: 49-1/2 inches
• Height to Top Water: 51 inches
• Height to Side T and P: 42-3/4 inches
• Height to Top of Vent: 52-1/4 inches
• Water Spread: 8 inches
