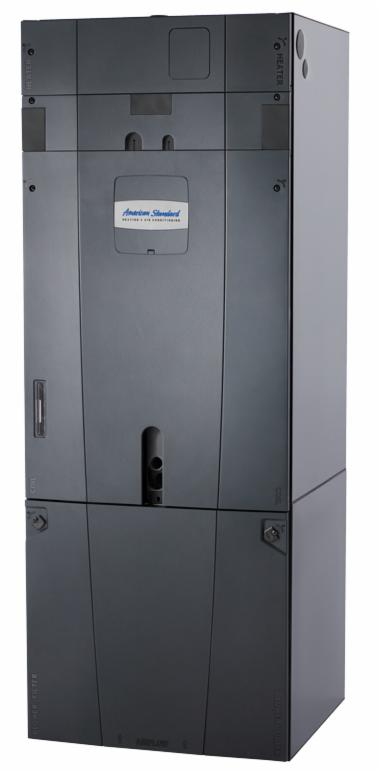

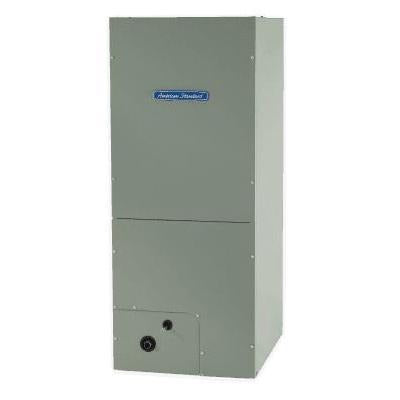

American Standard TEM4B0C37M31SA TEM4B air handler 3.0 ton (23.5 in w) 385523

Product Description

American Standard TEM4B0C37M31SA is a TEM4 series convertible air handler with a CTM ECM multi-speed blower and TXV refrigerant control designed for R-410A systems. It delivers nominal 3.0 ton capacity with approximately 1,200 cfm airflow in a multi-position cabinet for upflow, downflow, and horizontal installations. The unit includes an all-aluminum plate fin coil and a painted galvanized enclosure for residential air conditioning and heat pump applications.

• Convertible multi-position TEM4B cabinet supports upflow, downflow, horizontal left and horizontal right installations
• CTM ECM multi-speed blower with five speeds (approximately 1,200 cfm, 1,050 RPM) and TXV refrigerant control for R-410A systems
• All-aluminum plate fin coil, painted galvanized metal cabinet with captured foil-faced insulation, and brazed refrigerant line connections

Product Highlights

Convertible 3.0 ton TEM4B air handler with CTM ECM multi-speed blower, all-aluminum coil, TXV control, and R-410A compatibility

Product Information

Standard Information

• Brand: AMERICAN STANDARD
• Manufacturer Part Number: TEM4B0C37M31SA

Technical Specifications

• Brand: American Standard
• MPN: TEM4B0C37M31SA
• Manufacturer: Trane International Inc
• Model: TEM4
• Series: Silver Series
• Part Number: 385523
• Manufacturer Part Number: TEM4B0C37M31SA
• Nominal Capacity: 3.0 Ton
• BTU Rating: 30,000 Btu/hr
• CFM: 1,200 cfm
• Input Voltage: 208/230 V
• Frequency: 60 Hz
• Phase: Single phase
• AMP: 4.1 A
• Power Rating (HP): 1-1/2 hp
• Motor Type: CTM ECM multi-speed
• Blower Type: ECM, centrifugal
• Blower Speeds: 5
• Fan RPM: 1050 RPM
• Coil Type: All-aluminum plate fin coil
• Coil Rows: 4
• Fins Per Inch: 14
• Refrigerant: R-410A
• Refrigerant Control: TXV (thermal expansion valve)
• Refrigerant Line Size - Suction (OD): 7/8 in
• Refrigerant Line Size - Liquid (OD): 3/8 in
• Configuration: Convertible multi-position (downflow, upflow, horizontal left/right)
• Dimensions (H x W x D): 52 in x 24 in x 21 in
• Weight: 155 lb
• Material: Steel
• Finish: Galvanized / painted metal cabinet with captured foil-faced insulation
• Enclosure Insulation R-Value: R-4.2 (captured foil-faced insulation noted)
• Approvals / Certifications: AHRI 210/240; UL (Canada and US)
