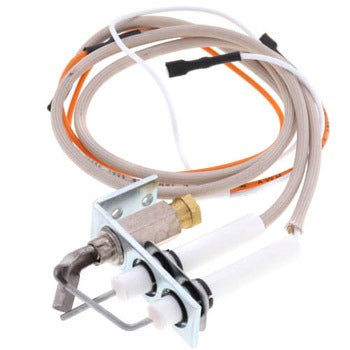

American Standard ASHP50315076974 Pilot Assembly

Product Description

The AMERICAN STANDARD ASHP50315076974 is a pilot assembly designed for gas-fired heating systems. The pilot assembly generates and maintains the standing pilot flame that proves ignition before the main gas valve opens. It is a critical safety and ignition component in systems that rely on a continuously burning pilot rather than electronic ignition. Licensed HVAC technicians and gas appliance service professionals install this part during routine maintenance, pilot failure diagnosis, or combustion system repair.

This pilot assembly is suited for residential gas-fired heating applications where a standing pilot ignition system is specified. It is a direct OEM-style replacement intended to restore reliable pilot flame operation in systems that have experienced pilot outages, thermocouple-related shutoffs, or degraded flame performance. The part number PSE-NA270 is referenced in American Standard service documentation and cross-references for applicable units.

Key Features

• OEM-style pilot assembly for standing pilot ignition systems
• Designed to restore reliable pilot flame and gas valve proving function
• Direct replacement referencing American Standard part PSE-NA270
• Supports safe ignition sequencing in gas-fired heating equipment

Compatibility

Designed as an OEM-style replacement pilot assembly for American Standard gas-fired heating equipment specifying part number PSE-NA270.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified gas appliance service professional. Shut off the gas supply and allow all components to cool completely before beginning disassembly. Follow all applicable local codes and manufacturer service documentation when routing and connecting gas tubing to the pilot assembly. After installation, verify pilot flame appearance and thermocouple millivolt output before returning the system to service.

Technical Specifications

• Manufacturer Part Number (Alt): PSE-NA270

Standard Information

• Brand: AMERICAN STANDARD
• Manufacturer Part Number: ASHP50315076974
