Product Description

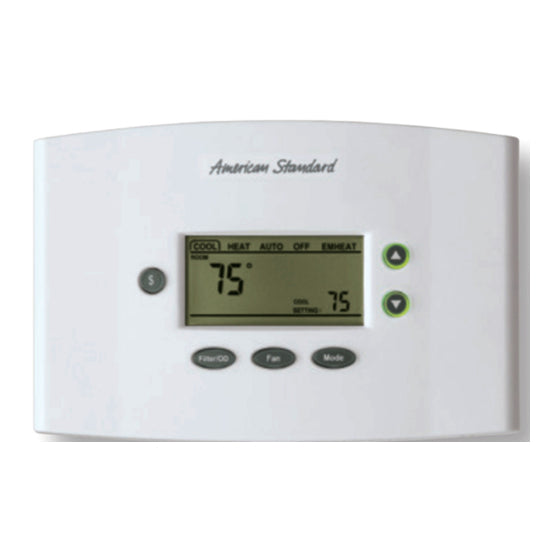

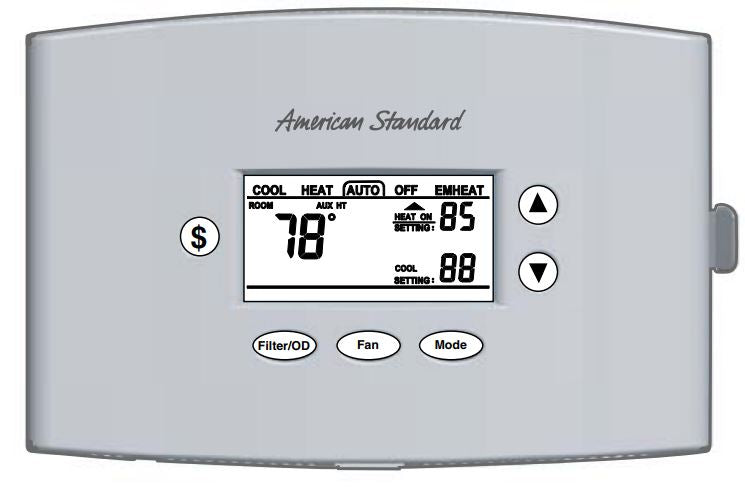

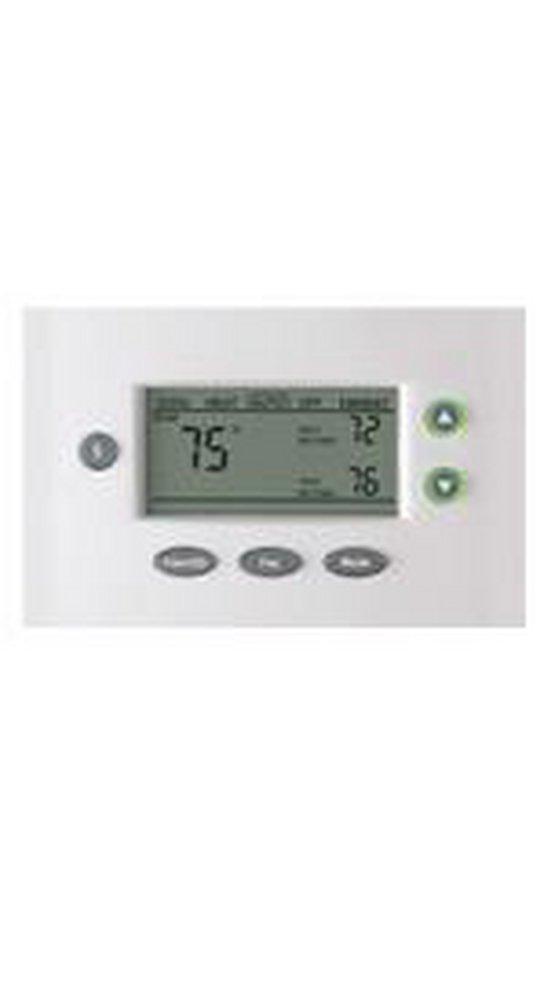

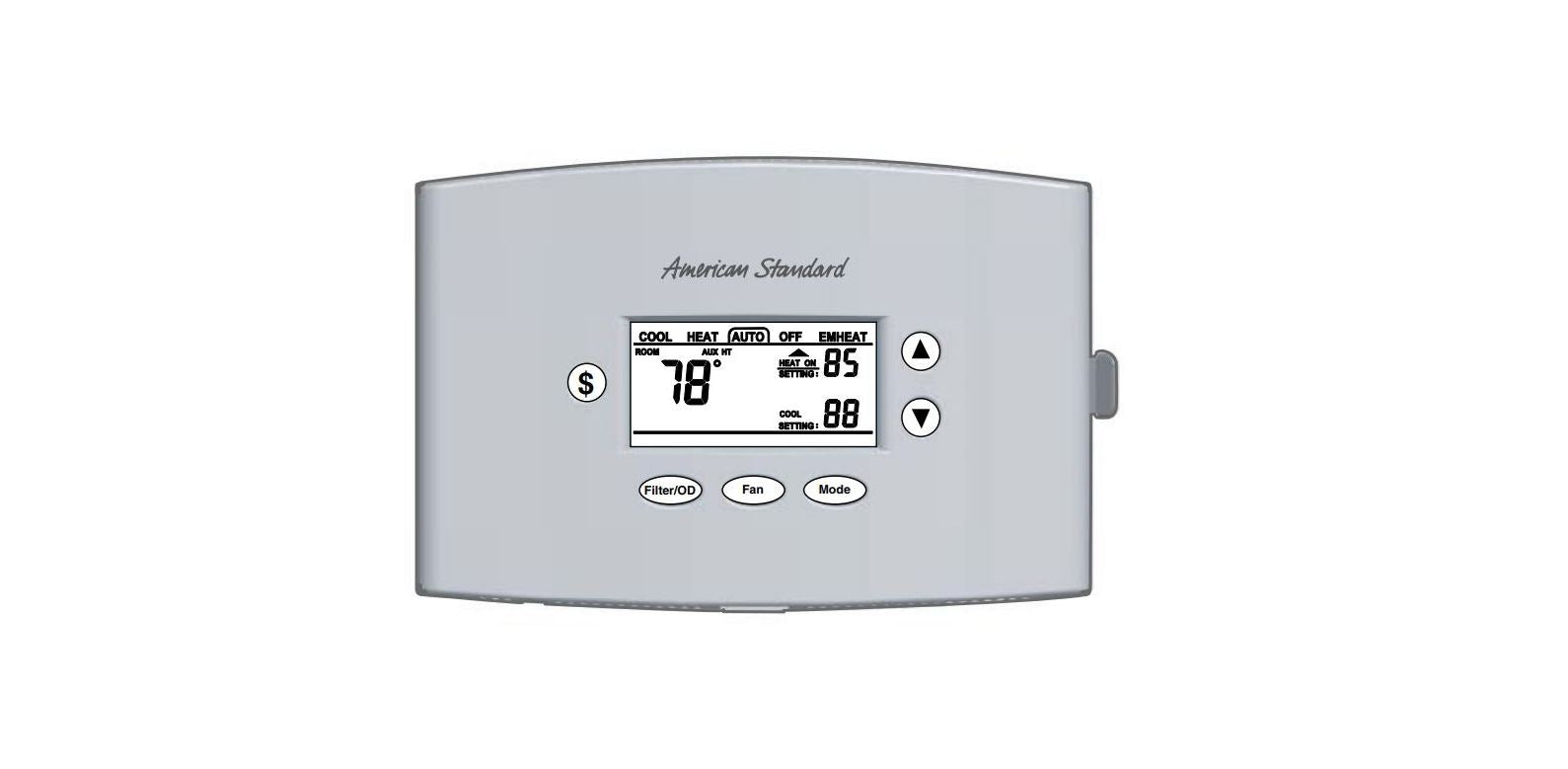

The American Standard ACONT402AN32DA is a digital non-programmable 3 Heat/ 2 Cool/Heat Pump/ Heat-Cool wall mounted low voltage (24VAC) Comfort Control with backlit LCD and keypad. It maintains room temperature by controlling the operation of heating, cooling, heat pump and dual fuel systems. The comfort control is easily configured for heat pump or cooling only and gas or electric or dual fuel heat applications.
- Digital non-programmable
- Backlit LCD and keypad
- Separate heating and cooling setpoints
Product Highlights
Digital non-programmable thermostat with backlit LCD and keypad, ideal for maintaining room temperature in various heating and cooling systems.
Product Information
Standard Information
-
Brand: AMERICAN STANDARD
-
Manufacturer Part Number: ACONT402AN32DA
Technical Specifications
-
Application: 3 Heat (Gas, Oil* or Elec) / 2 Cool / Heat Pump, Dual Fuel
-

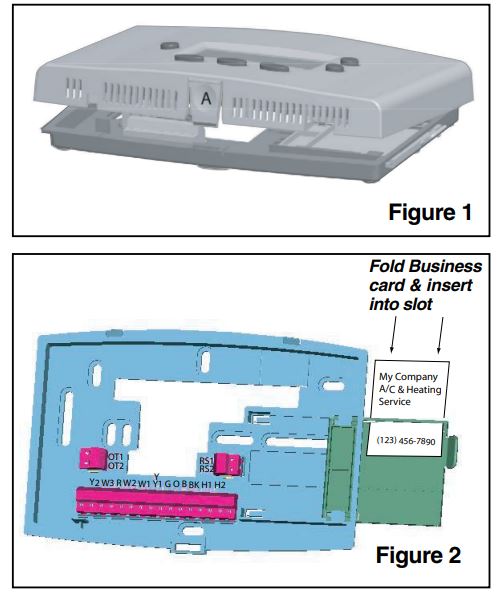

Wiring: 3 - 16 Wire Hookup (2 for Outdoor Sensor, 2 for Optional Remote Indoor Sensor, 2 for Optional Humidistat)
-
Power Source: 20-30VAC, Class II, 50/60Hz.
-
System Mode: Heat, Cool, Auto, Emergency Heat and Off
-
Fan Mode: Auto and On
-
Cooling setpoint temperature range: 65F – 90F, 18.0C – 33.0C, 1F and 0.5C resolution.
-
Heating setpoint temperature range: 40F- 85F, 5.0C – 30.0C, 1F and 0.5C resolution.
-
Default set points: 68F, 20.0C Heat, 78F, 25.5C Cool
-
Storage Range: -40F to 140F, 5% – 90% RH non-condensing.
-
Operating Temperature Range: 32F – 110F, 5 – 90% RH non-condensing.
-
Outdoor Temperature Display Range: -40F – 140F.
-
Minimum Cycle Off Time Delay: Cooling – 5 minutes, Heating – 1 minute.
-
Auto Switching Heat: Yes
-
Display Type: Digital
-
Energy Star Compliant: No
-
Programmability: Non-programmable
-
Smart Home Enabled: No
-
Stages: 3H/2C
-
Touch Screen: No
-
Volts: 24V
