Product Description

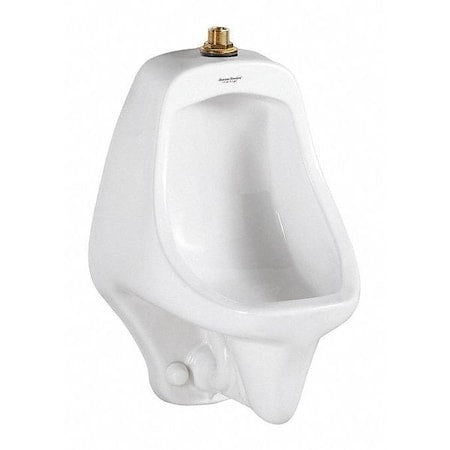

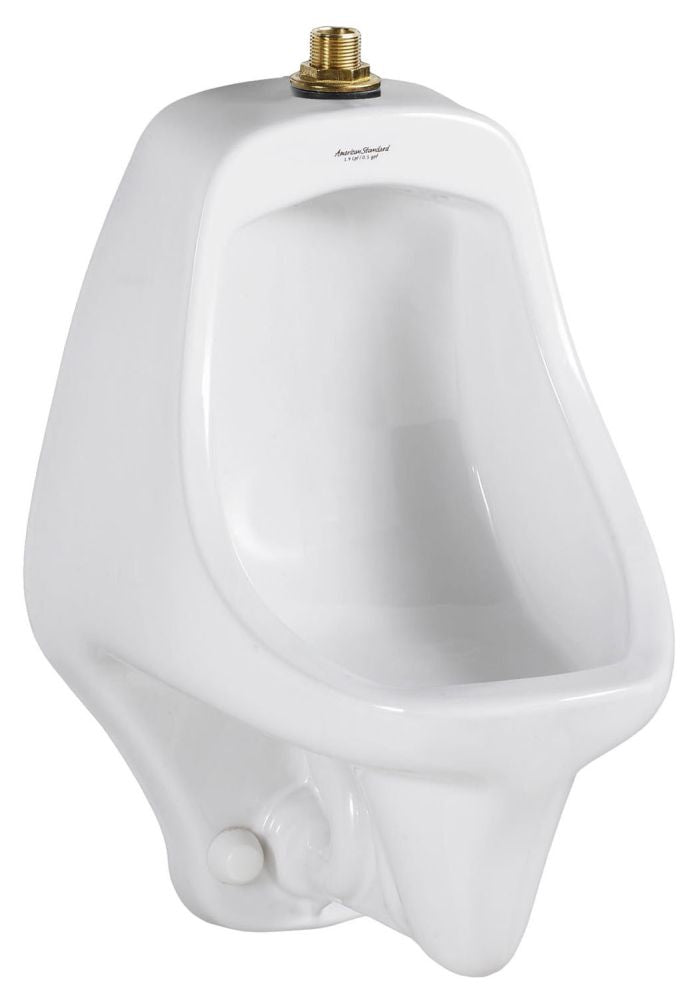

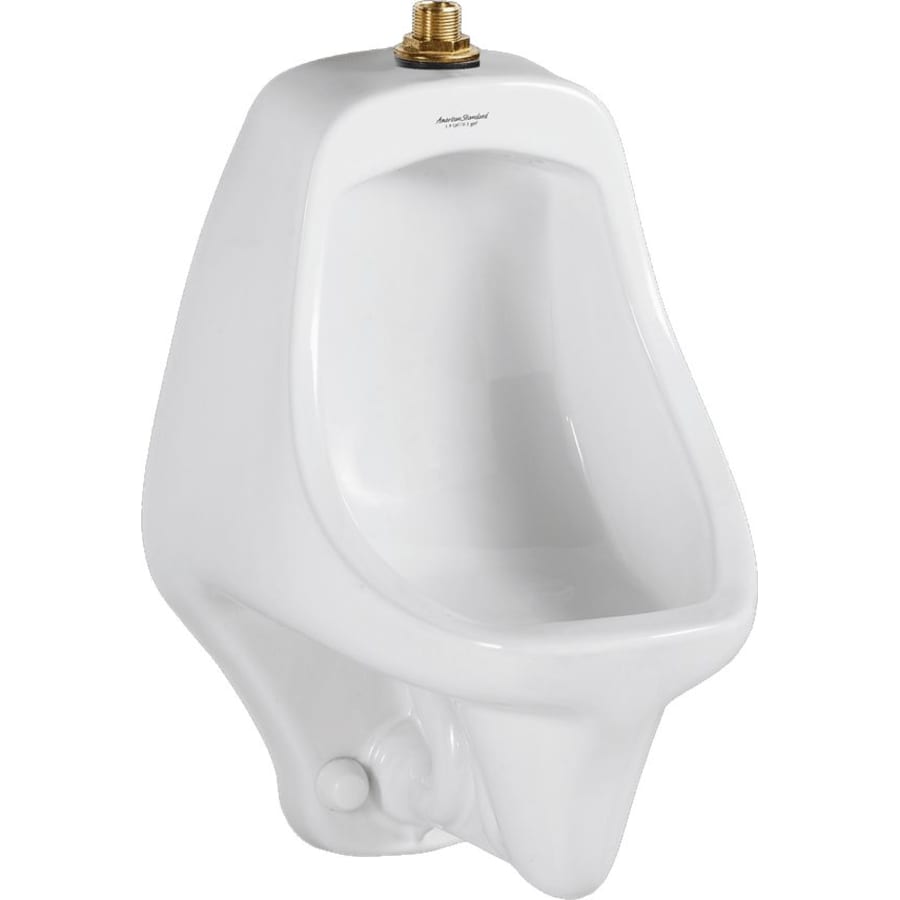

The AMERICAN STANDARD 6550.001.020 is a high-efficiency urinal that operates in the range of 0.5 GPF to 1.0 GPF. Constructed from vitreous china, it features a siphon jet flush action and a flushing rim. Designed for wall mounting, this urinal is ADA compliant and WaterSense certified.
- High Efficiency operates in the range of 0.5 GPF to 1.0 GPF (1.9 LPF/3.8 LPF)
- Siphon jet flush action
- WaterSense Certified
Product Highlights
This urinal features a top spud inlet, a rear outlet, and meets ANSI flush requirements.
Product Information
Standard Information
-
Brand: AMERICAN STANDARD
-
Manufacturer Part Number: 6550.001.020
-
Country of Origin: China
Technical Specifications
-
Applicable Standard: ADA, ANSI A117.1, ASME A112.19.2/CSA B45.1, CEC, EPA
-
Depth: 14 in
-
Gallons Per Flush: 0.5 to 1
-
Inclusions/Features: Wall Hanger
-
Inlet Connection: 3/4 Inch Spud
-
Inlet/Outlet Location: Top Spud, Rear Outlet
-
Material: Vitreous China
-
Mounting Type: Wall hung
-
Outlet Connection: 2" threaded
-
Recommended Working Pressure: 20 PSI (Flush), 80 PSI (Static)
-
Type: Siphon Jet Flush Action, Flushing Rim, Universal
-
Brand: AMERICAN STANDARD
-
MPN: 6550.001.020
-
Flush Rate: 0.5 to 1 gpf
-
Flush Action: Siphon Jet
-
Outlet: 2" FPT
-
Inlet: 3/4" Spud
-
Collection: Allbrook
-
Height: 21-1/2 in
-
Inlet Spud Size: 3/4 in
-
Mounting: Wall
-
Outlet Tap Size: 2 in
-
Spud Location: Top
-
Width: 14-5/16 in
-
Working Pressure: 20 to 80 psi
-
Liters per Flush: 1.9 to 3.8
-
Series: Allbrook
-
Connection Style: 2-Bolts - Flange
-
Flush Type: Siphon Jet
-
Manufacturers Part Number: 6550.001.020
-
Everclean Antimicrobial Finish: No
-
Watersense: No
-
Compliance & Certifications: ADA Compliant Yes
-
High Efficiency: Operates in the range of 0.5 GPF to 1.0 GPF (gallons-per-flush)
-
Approved for Commercial Use: Yes
-
CA Drought Compliant: Yes
-
Integral Trap: No
